Faac 109512 540 V BPR Industrial sectional door operator 230V

1448,10 EUR including 20.00% VAT
Product code: #32790
Manufacturer: Faac
  • Power supply: 230V AC
  • Shaft speed: 23 rpm
  • Control unit: 540BPR (built-in)
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 402500 Control panel XB300 Faac 390745 Chain drive kit, ratio 1:2.0 Faac 390744 Chain drive kit, ratio 1:1.5 Faac 390720 Chain with clasp for industrial sectional doors Faac 390721 Mounting plate for three-plane mounting Faac 390719 Quick release extension for industrial sectional doors Faac 2022805 Control unit 540 BPR

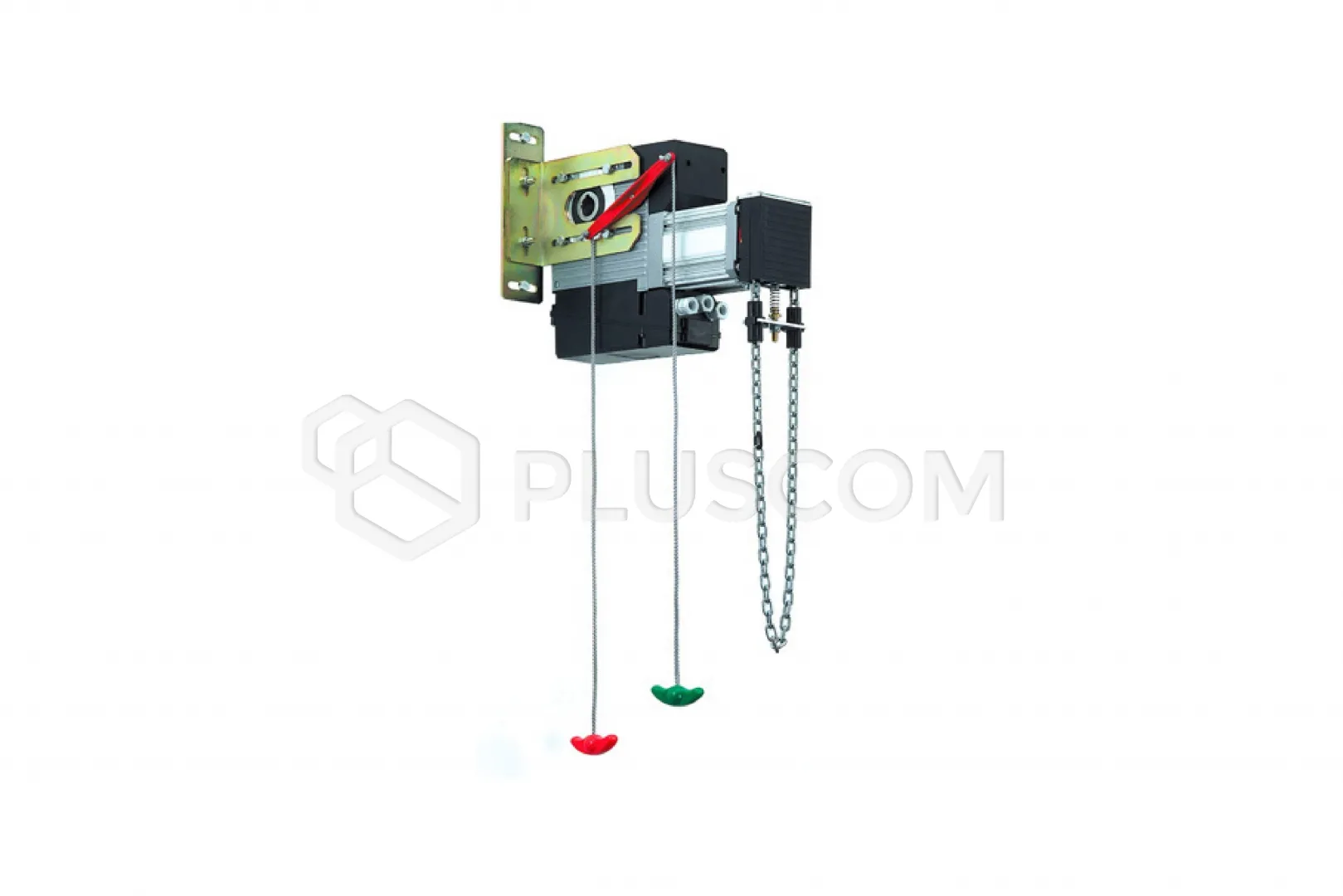

Faac 109512 540 V BPR Industrial sectional door operator 230V


540 V BPR 230V gear operator with built-in control unit and travel limiter for industrial sectional doors.

FEATURES:

  • Ideal for industrial applications with "dead-man" operating logic
  • 2 types of applications: direct installation on the gate shaft or using a chain transmission (in the event of lack of space on the sides or too low lintel)
  • Self-locking drive. In the event of a power failure, the gate can be moved manually using the unlocking device (540 V) or a chain hoist
Included: 540 BPR drive with limit switches, safety plate, emergency "cord" unlocking, manual "chain" mechanism (chain hoist) for installations over 4 m.

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Motor type - Single-phase asynchronous
  • Maximum power consumption - 800 W
  • Drive By shaft with dia. - 25.4 mm
  • Shaft rotation speed - 23 rpm
  • Maximum shaft revolutions - 24
  • Maximum torque - 50 Nm

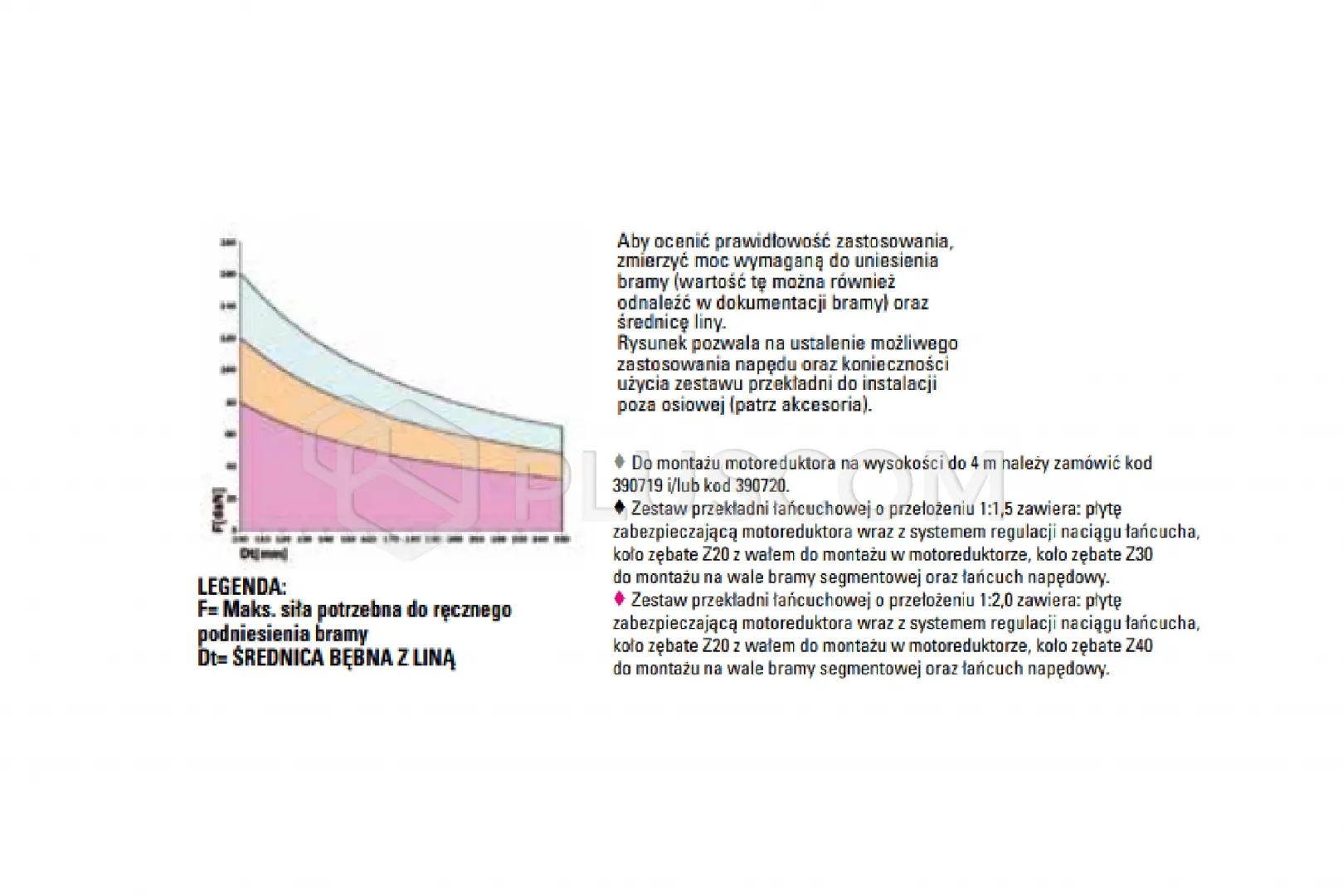

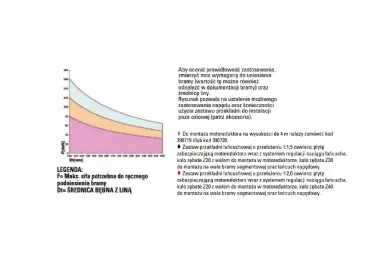

  • Maximum door weight - See drawing: application types
  • Encoder - None
  • Ambient temperature during operation - -20 °C ÷ +55 °C
  • Protection degree - IP54
  • Oil type - FAAC HP
  • Weight of the device - 14 kg
  • Dimensions (LxWxH) - 92x376x266 mm
  • Control unit - 540BPR (built-in)
  • Usage frequency - S3 - 40%
