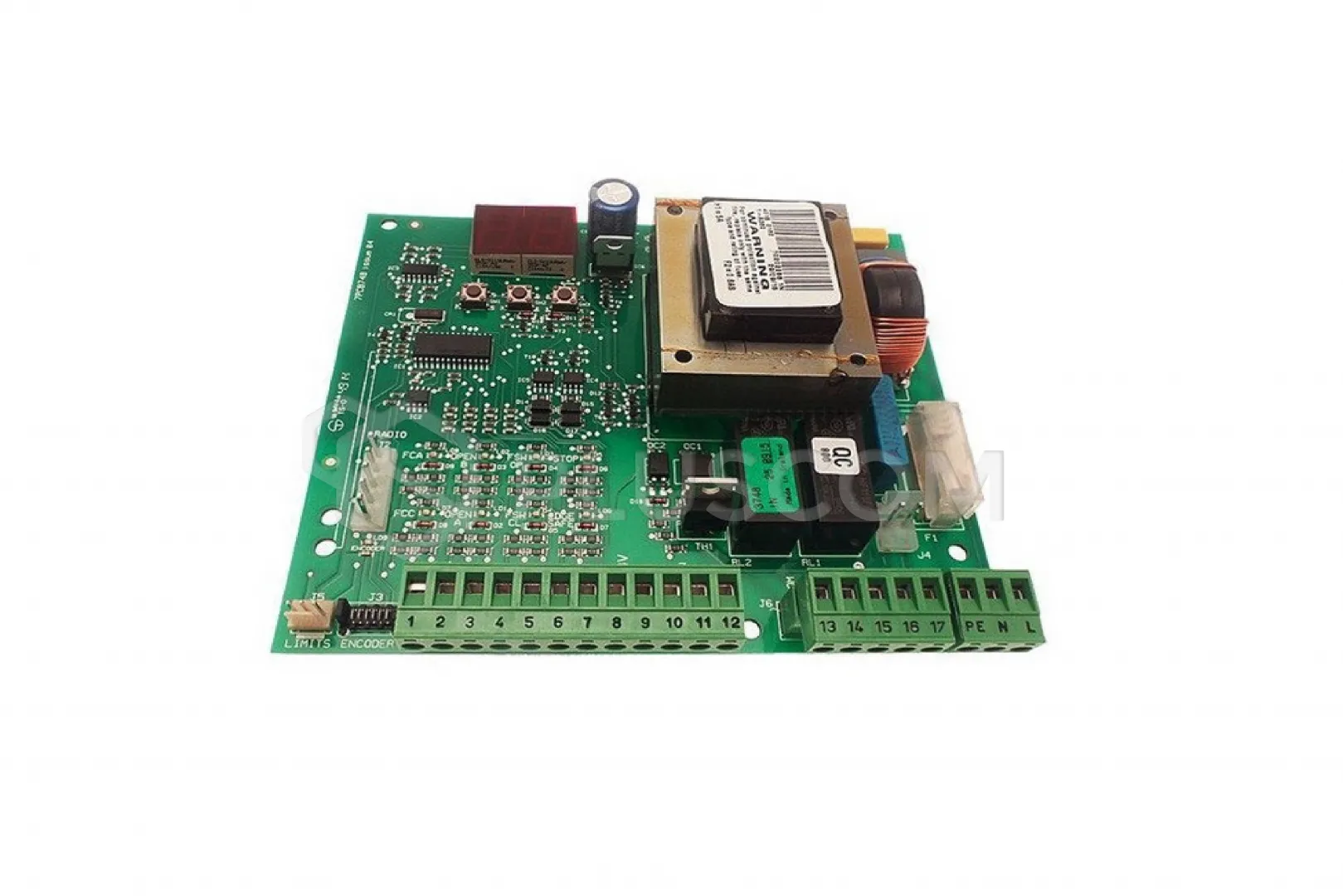

Faac 202269 Control board 740d/sprint382

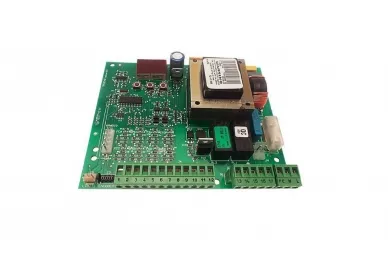

Faac 202269 Control unit 740D

Technical data:

• Power supply voltage: 230V AC (+6% -10%) 50/60Hz
• Max. power consumption: 1000 W (10 W in standby mode)
• Accessories power supply: 0.5 A (500 mA)
• Operating temperature range: -20°C to +55°C
• Fuses: F1=5 A; F2=T 800 mA

Working logic:

• semi-automatic (E)
• semi-automatic gradual (EP)
• automatic (A)
• automatic gradual (AP)
• automatic safe (S)
• semi-automatic with "Open" and "Close" input (b)
• mixed - impulse opening, closing in "dead-man" mode (bC)
• "dead-man" (C)

Inputs:

• full opening
• partial opening (gate)
• opening with protection
• closing with protection
• STOP (emergency stop)
• edge strip
• power + ground

Outputs:

• warning lamp
• engine power supply
• 24V DC accessory power supply
• indicator light
• temporary shutdown
• fail-safe protection
