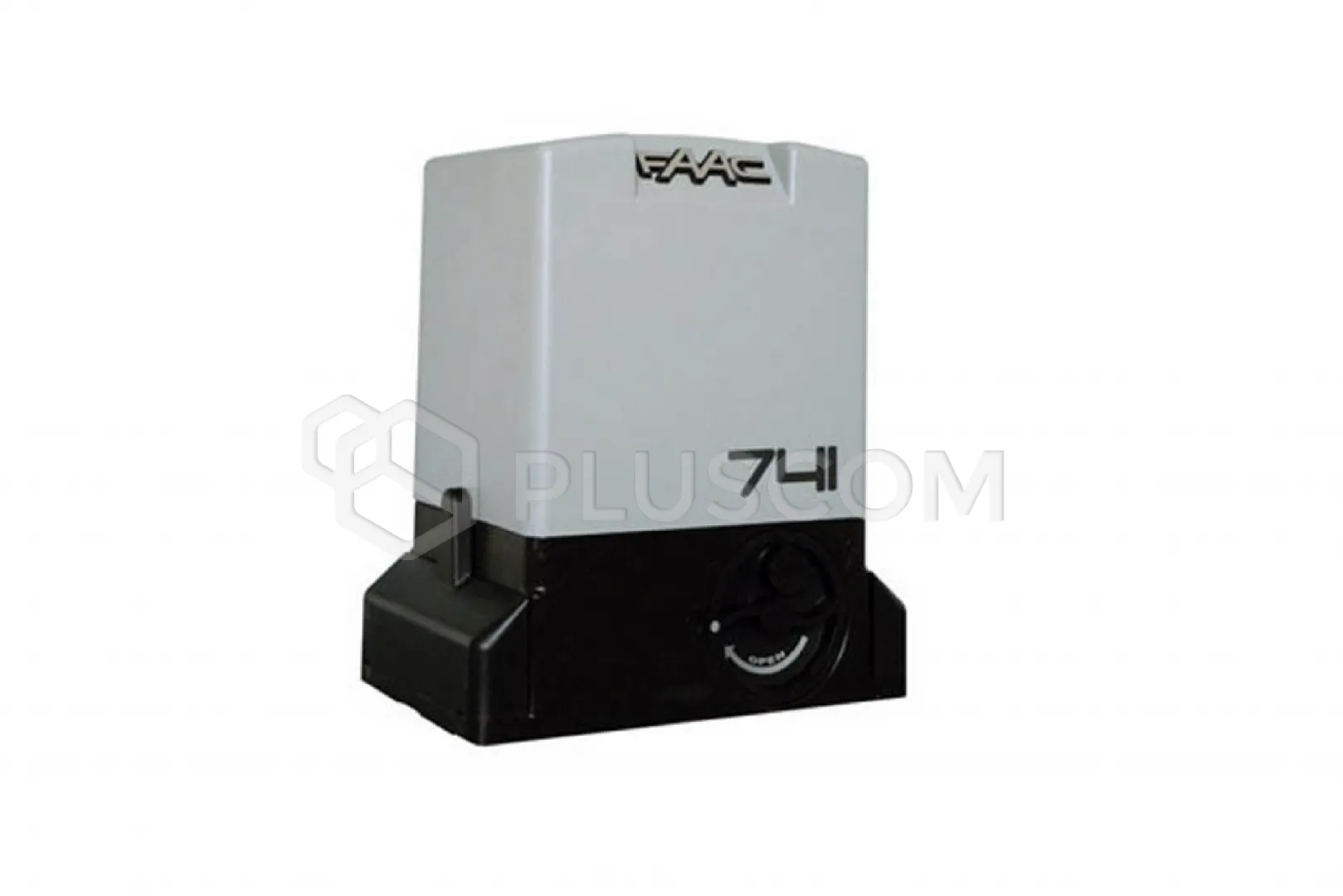

Faac 1097815 741 Electromechanical drive 230V with encoder

1040,91 EUR including 23.00% VAT
Product code: #26813
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. leaf weight: 900 kg
  • Limit switches: Magnetic
  • Usage frequency: 40 cycles/h
  • Feed speed: 12 rpm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 202269 Control board 740d/sprint382

Faac 1097815 741 Electromechanical drive 230V with encoder


Drive for sliding gates up to 900kg. FAAC 741 electromechanical drive 230V for home sliding gates weighing max. 900kg.

FEATURES:

  • For home use
  • Quick and easy installation thanks to the built-in control unit
  • Self-locking drive - does not require the use of an electromagnetic lock even in the event of a power failure
  • In the event of a power failure, unlocking the drive secured with a personalized key allows manual opening and closing of the gate
Included: electromechanical drive 741 with a Z16 M4 gear wheel and built-in 740 D control unit and encoder, two personalized keys to unlock the drive, magnets to activate the limit switch, mounting base and a 12.5 μF/400 V starting capacitor.

Technical data:

  • Supply voltage: 230V 50(60)Hz
  • Power consumption: 500W
  • Current consumption: 2.2 A
  • Friction and stroke force: 65 daN
  • Drive speed: 1400 rpm
  • Feed speed: 12 rpm
  • Reduction ratio: 1:25
  • Maximum leaf weight: 900 kg
  • Frequency of use: 40 cycles/h
  • Thermal protection on the motor winding: 140°C
  • Operating temperature range: -20°C to +55°C
  • Protection class: IP 44
  • Limit switches: magnetic
  • Gear wheel: Z16 mod. 4
  • Dimensions (L x W x H): 295 x 225 x 325 mm (with gear)
