Faac 109776 746 E R Electromechanical drive with gear immersed in oil bath 230V

1381,87 EUR including 20.00% VAT
Product code: #26816
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. gate leaf weight: 600 kg
  • Gate leaf movement speed: 9.6 m/min
  • Control unit: 780D (built-in)
  • Encoder: Magnetic, incremental
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 719130 Rack pinion Z16 Faac 780D control unit (without transformer) Faac 719167 Pinion z20

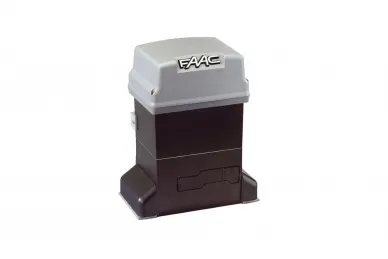

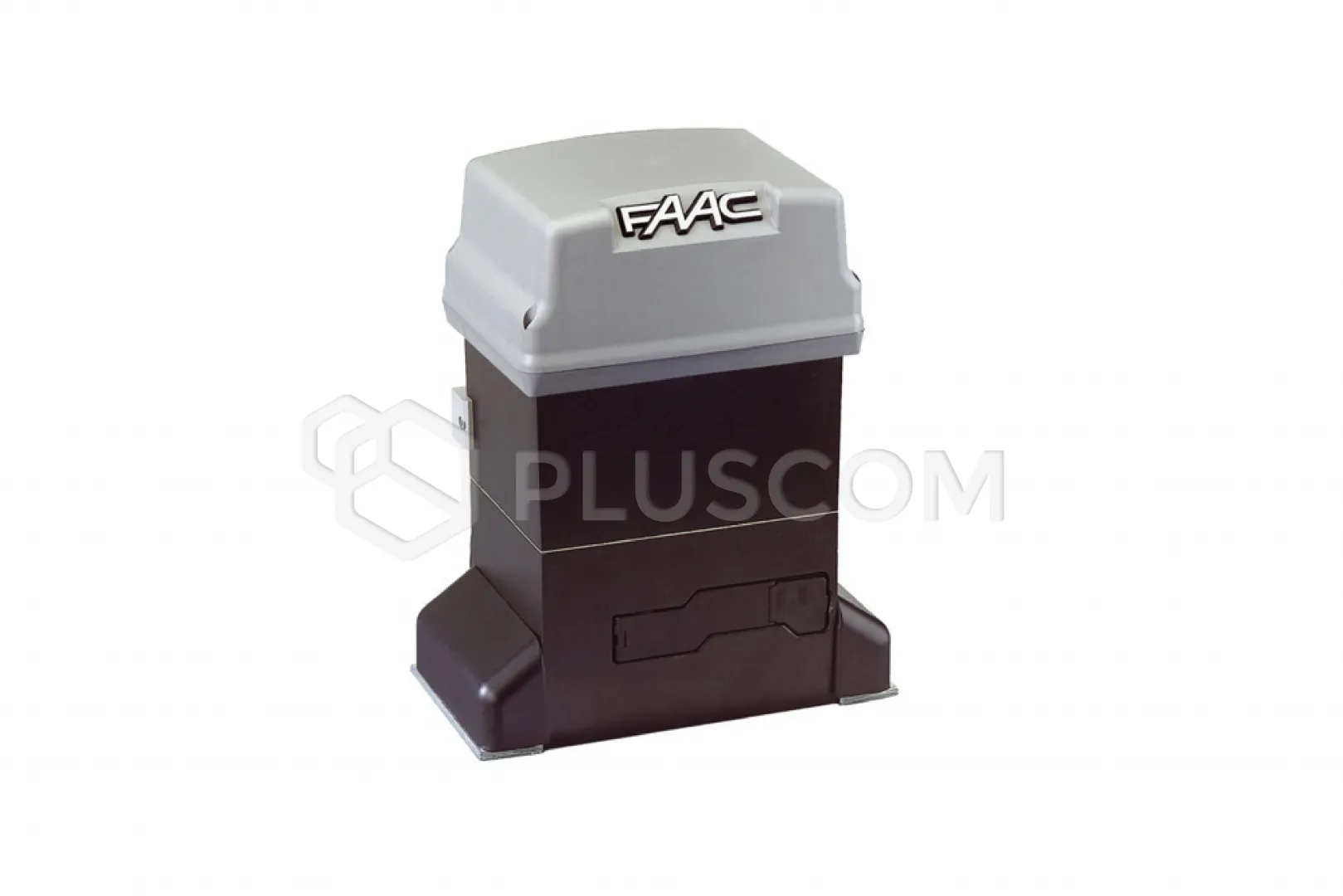

Faac 109776 746 E R Electromechanical drive with gear immersed in oil bath


Electromechanical drive with gear in oil bath 746 ER 230V for home and estate sliding gates weighing up to 600 kg.

FEATURES:

  • Maximum protection against crushing thanks to the use of a double-disc clutch immersed in an oil bath and a magnetic incremental encoder
  • Self-locking drive - does not require the use of an electromagnetic lock even in the event of a power failure
  • In the event of a power failure, unlocking the drive secured with a personalized key allows manual opening and closing of the gate
Included: electromechanical drive 746 E R with a Z16 M4 (or Z20 M4) gear wheel and a built-in 780 D control unit and encoder, key to unlock the drive, magnets to activate the limit switch and a 12.5 μF/400 V starting capacitor.

Technical data:

  • Voltage power supply: 220-240 V AC 50/60 Hz
  • Motor type: Asynchronous, single-phase
  • Maximum power consumption: 400 W
  • Maximum torque: 26 Nm
  • Maximum thrust: 810 N
  • Reduction ratio: 1:30
  • Gate wing speed: 9.6 m/min
  • Feed speed adjustment: None
  • Limit switch: Magnetic
  • Gear: Z16 M4
  • Encoder: Magnetic, incremental
  • Force adjustment: Through a double-disc clutch immersed in an oil bath and a control unit (50 levels)
  • Ambient temperature during operation: -20°C ÷ +55°C
  • Thermal protection: 120°C
  • Protection degree: IP44
  • Weight of the device: 14 kg
  • Oil type: FAAC HP
  • Dimensions of the device (LxDxH): 277x155x337 mm
  • Maximum gate leaf weight: 600 kg
  • Use frequency: 70%
  • Control unit: 780D (built-in)
