Faac 1044171 Electromechanical drive 415 L 24V

745,42 EUR including 23.00% VAT
Product code: #26759
Manufacturer: Faac
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Max. leaf width - 3 m (4 with electromagnetic lock)
  • Max. sash opening angle: 110°
  • Max. pulling force: 2800 N
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac E124 control unit with housing Faac Mounting base for embedding Faac 727525 Aluminum Arm Cover Faac Interface BUS XIB Faac 90926 Emergency battery base Faac XBAT 24 emergency battery Faac E024S control unit with housing

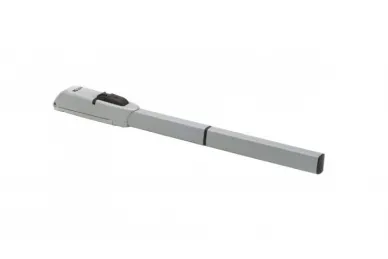

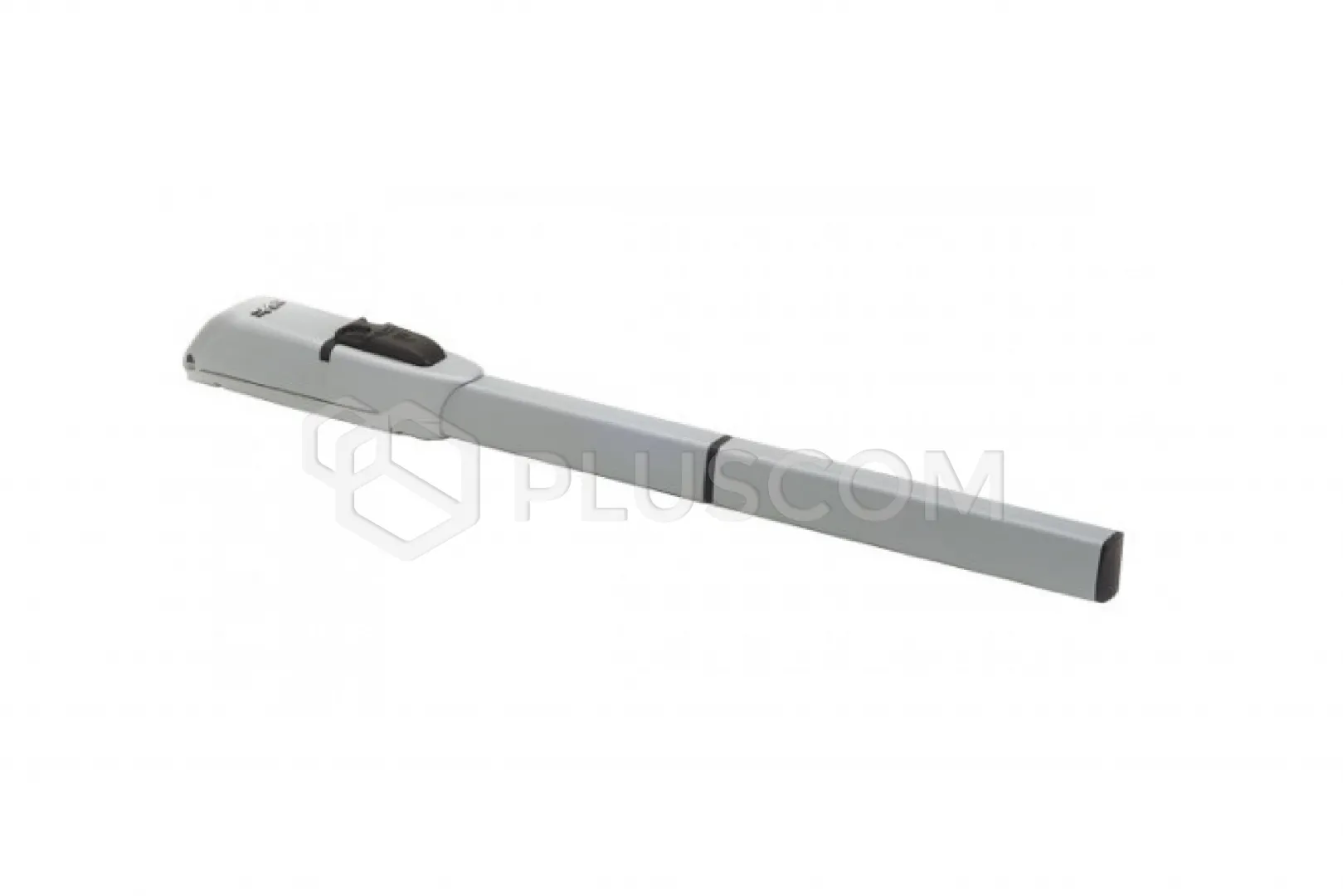

Faac 1044171 Electromechanical drive 415 L 24V


Electromechanical drive 24V for swing gates for residential swing gates up to 3 m long (4 m with electromagnetic lock).

FEATURES:

  • Aluminum body secured with double protective coating, guaranteeing higher resistance to weather conditions
  • In the event of, for example, a power outage, a simple gear release mechanism (secured with a personalized key) allows for manual operation of the gate
  • Cables (with chokes) routed horizontally, which allows the drive to be mounted very close to the ground surface
  • Optional emergency battery guaranteeing operation in the event of power outage (option for 24 V mod.)
Included: drive, mounting accessories, key to unlock the drive.

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Motor type - Brushed, 24 V DC
  • Max. power consumption - 70 W
  • Max. thrust - 2800 N
  • Max. linear speed (piston) - 16 mm/sec.
  • Usable working stroke - 400 mm
  • Max. wing opening angle - 110°
  • Ambient temperature during operation - -20°C ÷ + 55°C
  • Protection class - IP55
  • Device weight - 8 kg
  • Use frequency - 100%
  • Max. wing width - 3 m (4 with electromagnetic lock)

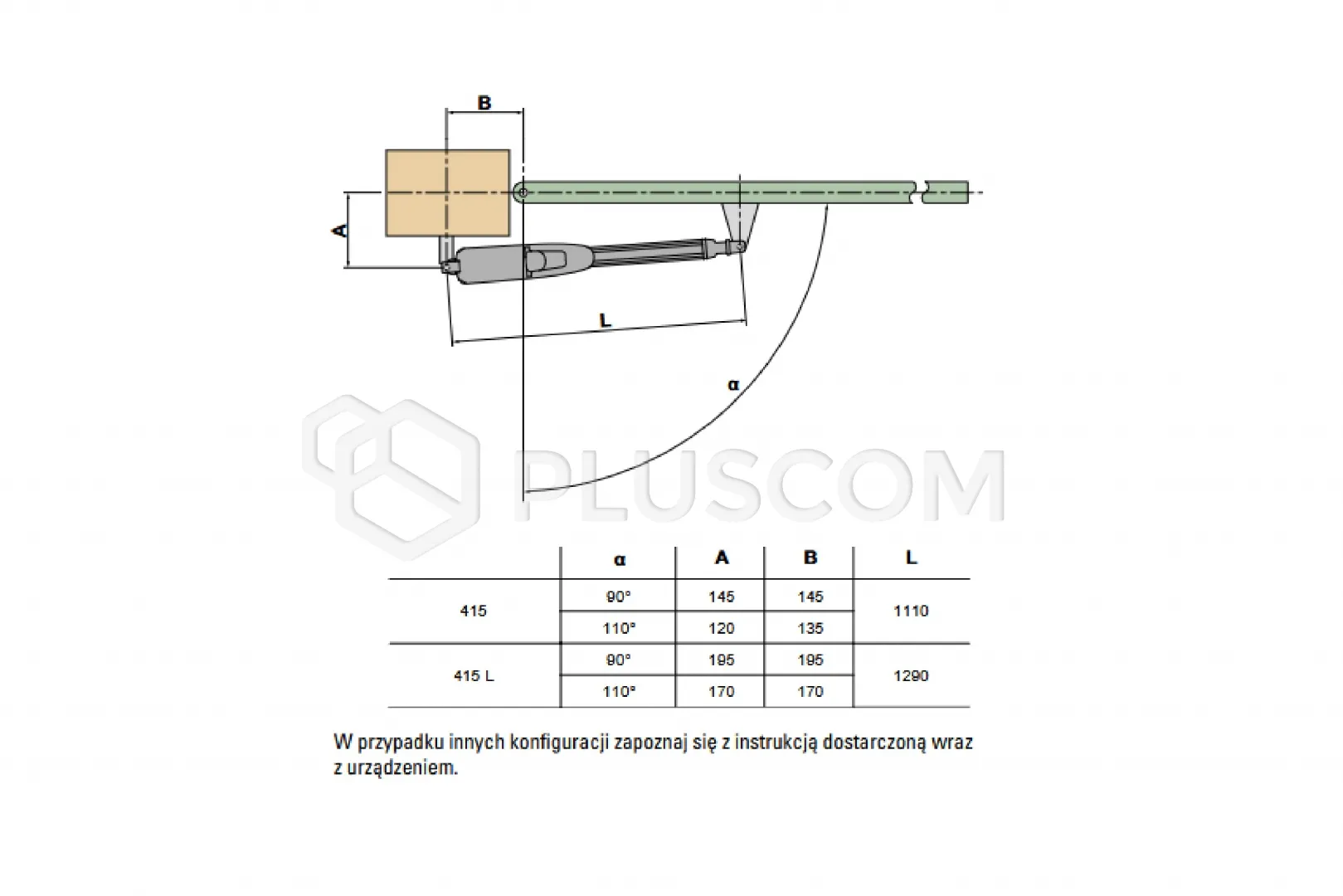

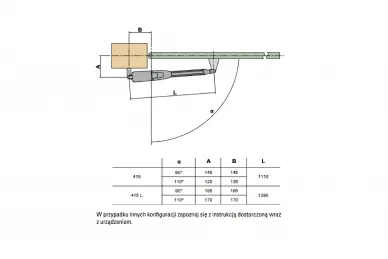

  • Mounting brackets - rear bracket (to the post) for welding/screwing - front bracket (to the wing) for welding
  • Device dimensions (LxDxH) - 942x101x148 mm
  • Control unit - none
