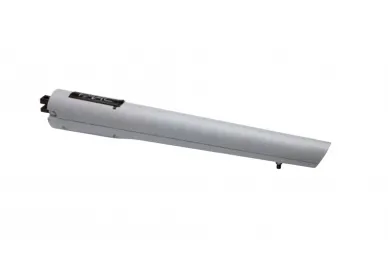

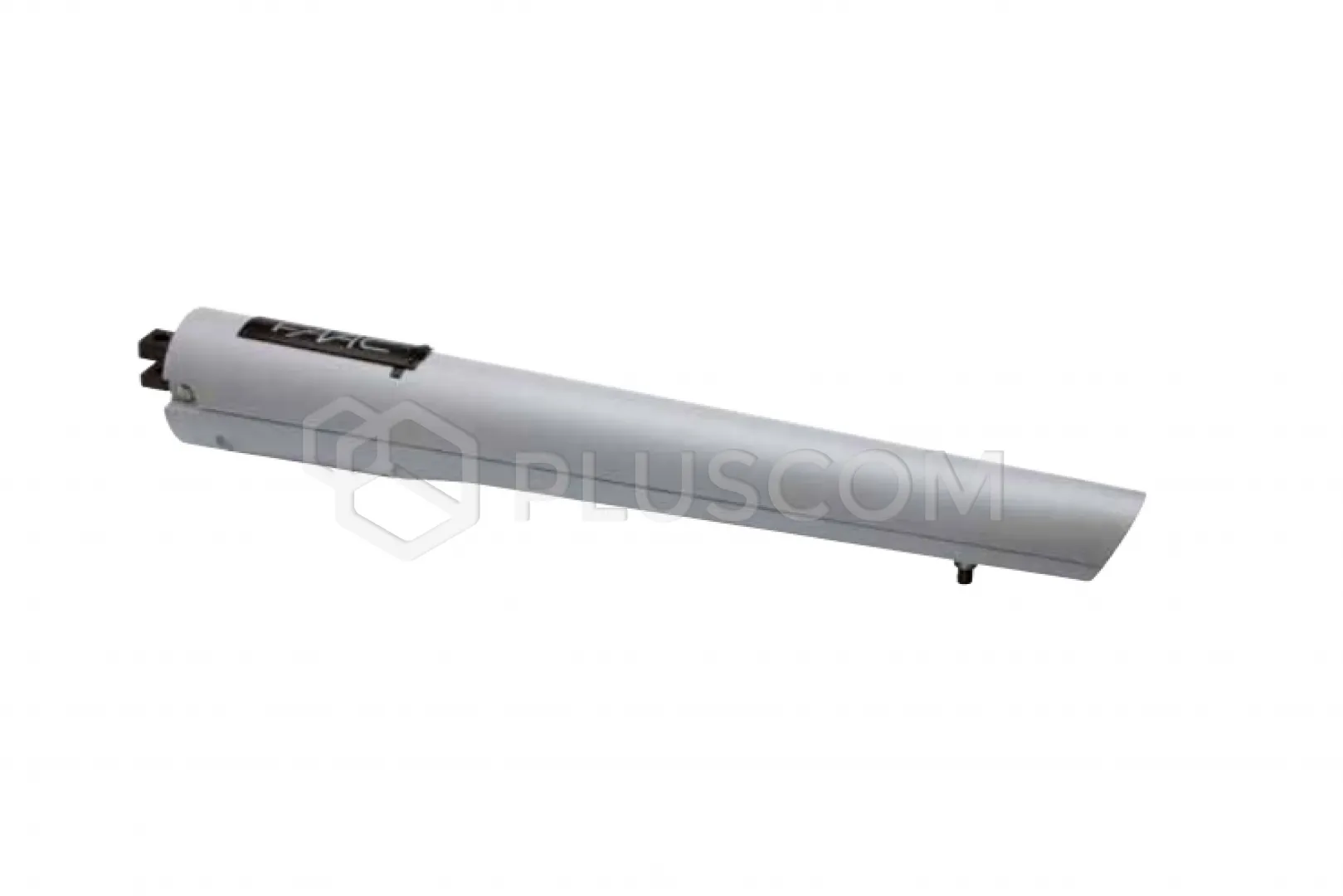

Faac 104301 Electromechanical drive S418

499,08 EUR including 22.00% VAT
Product code: #26760
Manufacturer: Faac
  • Power supply: 230V AC
  • Power supply: 24V
  • Max. leaf width - 2.3 m (2.7 m with electromagnetic lock)
  • Max. sash opening angle: 110°
  • Max. pulling force: 1800 N
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 90926 Emergency battery base Faac XBAT 24 emergency battery Faac E024S control unit with housing Faac E124 control unit with housing Faac Interface BUS XIB

Faac 104301 Electromechanical drive S418


Electromechanical drive 24V for residential swing gates with a maximum single leaf length of 2.3 (2.7m with electromagnetic lock). Opening and closing locks. Arm extension 350mm. New multi-position mounting connector with installation that does not require welding. New control unit with anti-crushing device and reverse gear encoder in case of obstacle detection.

FEATURES:

  • Built-in mechanical opening and closing limiters
  • Usable working stroke 350 mm
  • New multi-position mounting brackets for installation that does not require welding

Included: drive, mounting accessories, key to unlock the drive.

Technical data:

  • Supply voltage - 24 V DC
  • Motor type - Brush, 24 V DC
  • Max. power consumption - 35 W
  • Max. thrust force - 1800 N
  • Max. linear speed (piston) - 37 mm/sec. (with E124 control unit)
  • Usable working stroke - 350 mm (390 mm without mechanical movement limiters)
  • Max. leaf opening angle - 110°
  • Ambient temperature during operation - -20°C ÷ + 55°C
  • Protection class - IP54
  • Weight of the device - 6 kg
  • Use frequency - 100%
  • Max. leaf width - 2.3 m (2.7 m with electromagnetic lock)

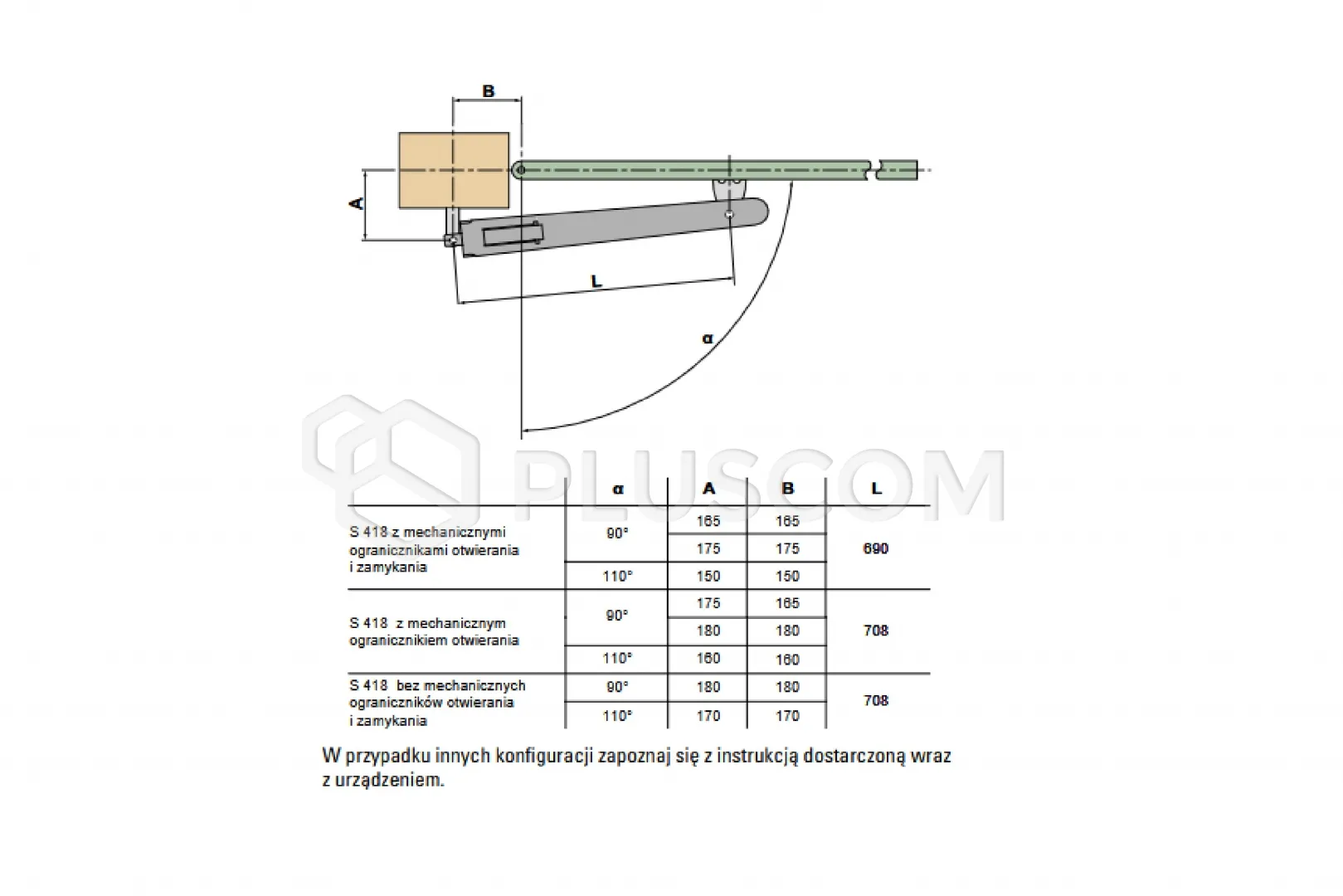

  • Mounting brackets - rear bracket (to the post) to be screwed, adjustable - front bracket (to the leaf) to be screwed, adjustable
  • Device dimensions (LxDxH) - 823x104x137 mm
  • Control unit - none
