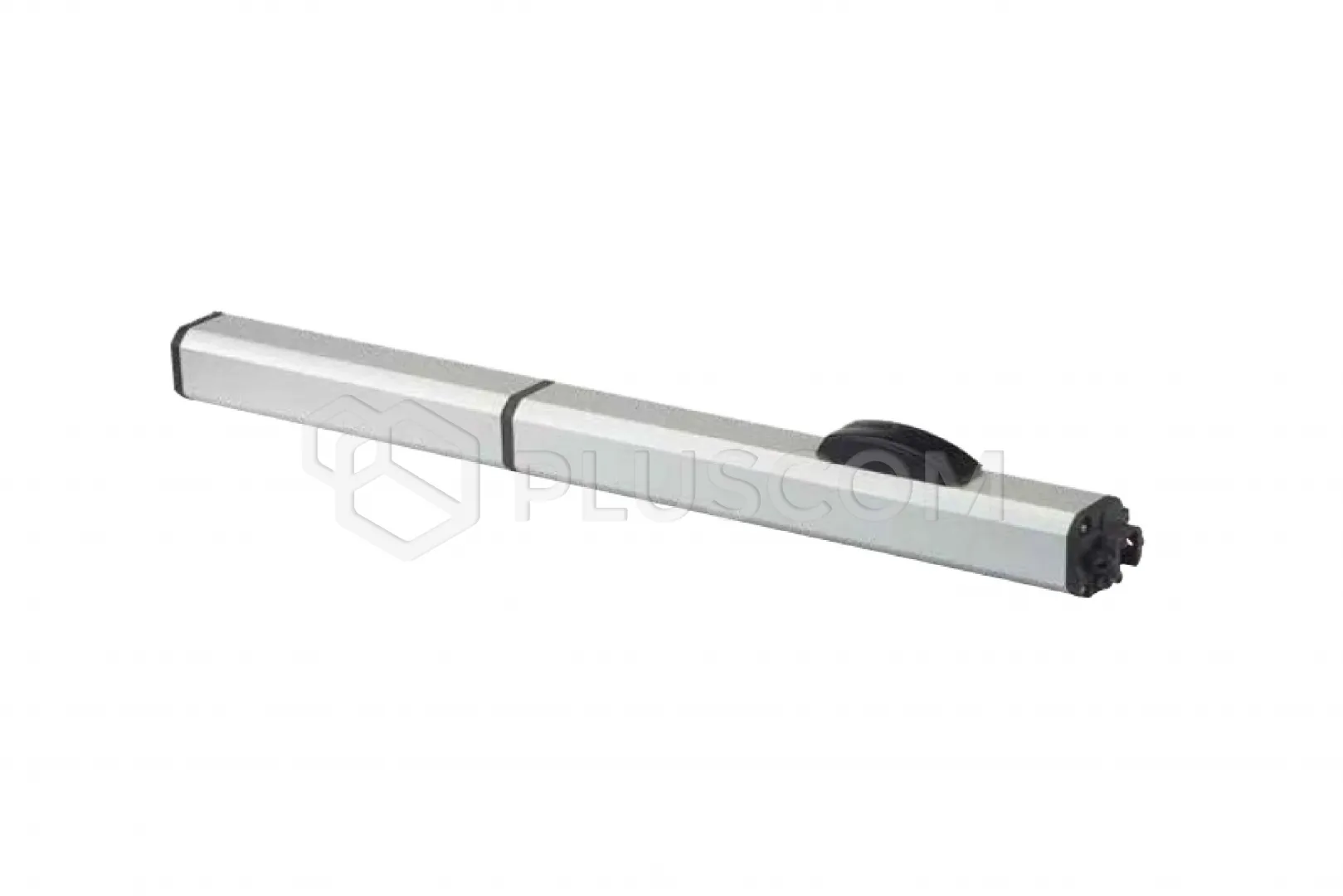

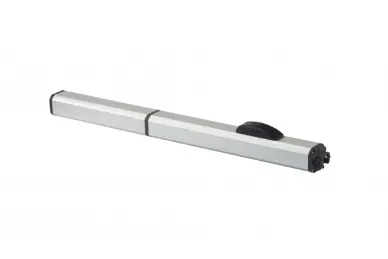

Faac 104220 Hydraulic drive 400 SBS L 230 V

1636,74 EUR including 20.00% VAT
Product code: #26775
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. leaf width: 7.00 m (with electromagnetic lock)
  • Max. sash opening angle: 125°
  • Max. thrust force: 7750 N
  • Usage frequency: 40 cycles/hour
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Mounting base for embedding Faac Encoder for 414 actuator Faac E045S control unit Faac E145S control unit Faac Interface BUS XIB Faac Housing model LM for the control unit Faac Model E housing for the control unit Faac 720118 Model L housing for control unit Faac 490043 Mechanical travel stop for the Long version Faac Lock for unlocking the drive with a key

Faac 104220 Hydraulic drive 400 SBS L 230 V


Hydraulic drive 230V for residential and industrial swing gates for a leaf length of up to 7.00 m (with electromagnetic lock).

FEATURES:

  • Drive dedicated for heavy or intensively used gates
  • Quiet drive operation
  • Unlocking device with key

Included: drive without hydraulic locks for heavy leaves, mounting accessories, starting capacitor 8 μF/400 V, key to unlock the drive.

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Type of motor - Asynchronous, single-phase
  • Maximum power consumption - 220 W
  • Maximum thrust - 7750 N (*)
  • Maximum linear speed (piston) - 7.5 mm/sec. (*)
  • Pump capacity - 0.75 l/min (*)
  • Useful working stroke - 390 mm
  • Max. leaf opening angle - 125°
  • Ambient temperature during operation - -20°C ÷ + 55°C
  • Thermal protection - 120°C
  • Degree of protection - 55 IP
  • Device weight - 10 kg
  • Frequency of use - 40 cycles/hour
  • Max. leaf width - 7.00 m (with electromagnetic lock)
  • Oil type - FAAC HP

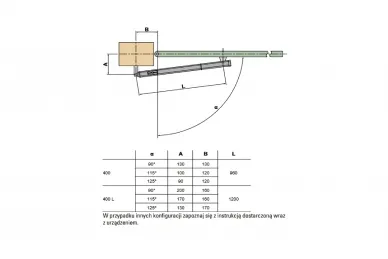

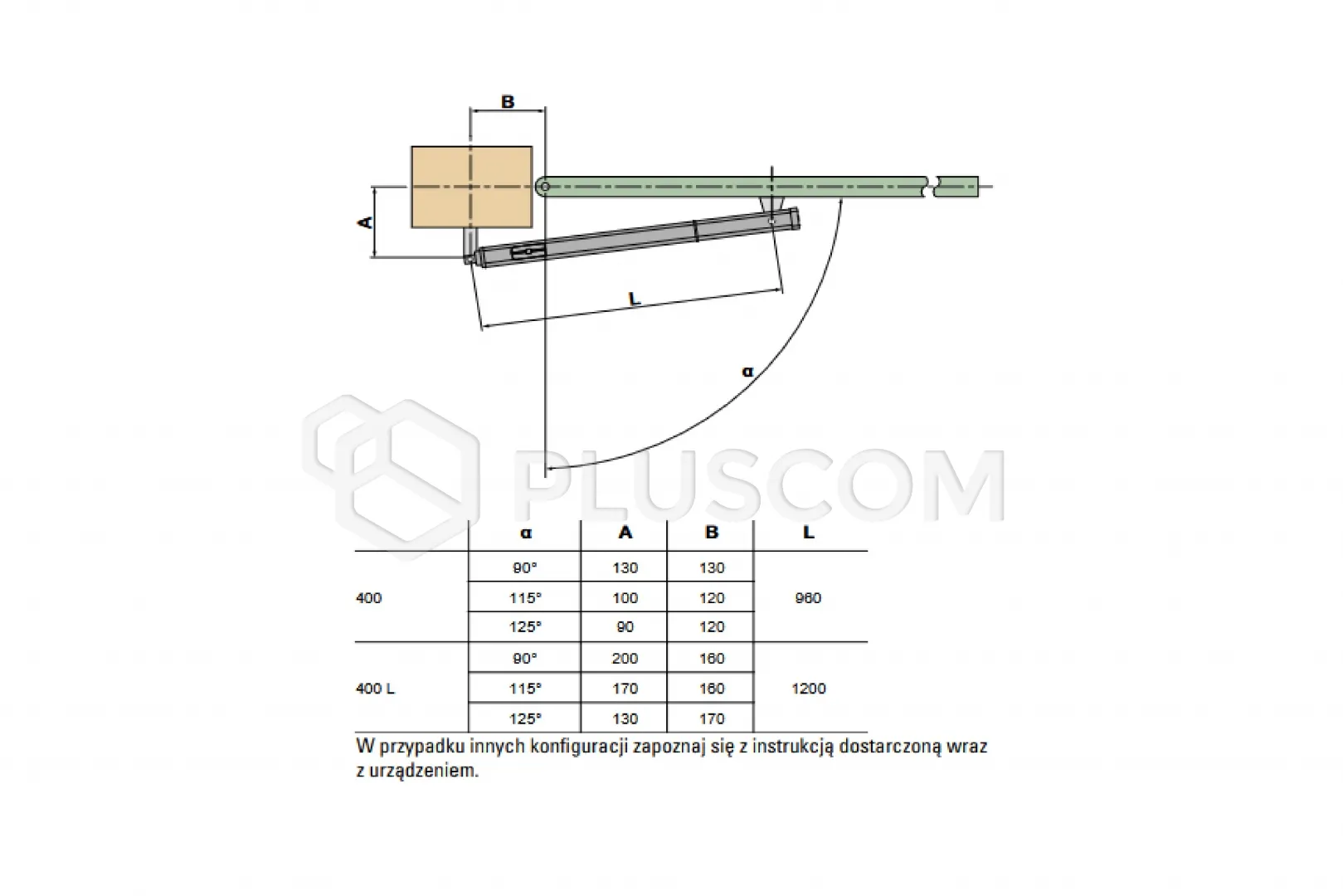

  • Mounting brackets - rear bracket (to the post) to be welded/screwed - front bracket (to the leaf) to be welded
  • Device dimensions (LxDxH) - 1277 x 85 x 119 mm
  • Control unit - none
