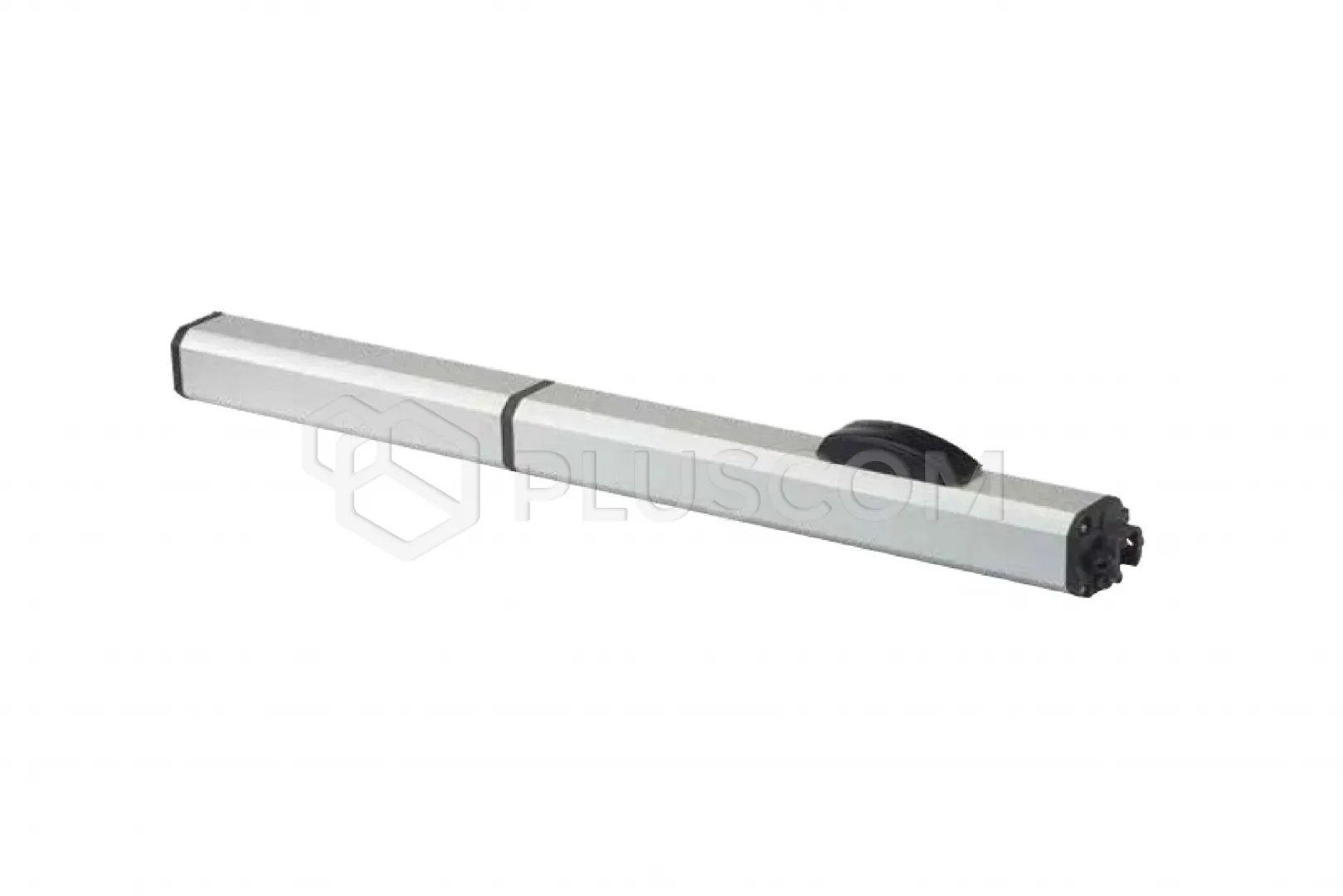

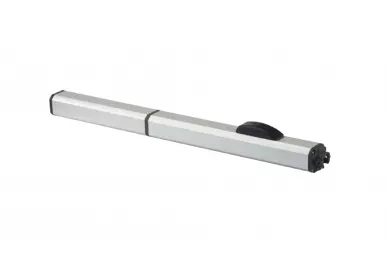

Faac 104206 Hydraulic drive 400 SB 230 V

1325,06 EUR including 20.00% VAT
Product code: #26771
Manufacturer: Faac
  • Power supply: 230V AC
  • Max. leaf width: 4.00 m (with electromagnetic lock)
  • Max. sash opening angle: 125°
  • Max. thrust force: 6200 N
  • Usage frequency: 70 cycles/hour
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac Interface BUS XIB Faac Housing model LM for the control unit Faac Model E housing for the control unit Faac 720118 Model L housing for control unit Faac Lock for unlocking the drive with a key Faac 710010 RTA connector Faac 490042 Mechanical travel stop Faac Mounting base for embedding Faac Encoder for 414 actuator Faac E045S control unit

Faac 104206 Hydraulic drive 400 SB 230 V


Hydraulic drive 230V for residential and industrial swing gates for a leaf length of up to 4 m.

FEATURES:

  • Wide and versatile range for heavy or intensively used gates
  • Quiet drive operation
  • Easily accessible drive release, secured with a personalized key

Included: drive without hydraulic locks, mounting accessories, starting capacitor 8 μF/400 V, key to release the drive.

Technical data:

  • Supply voltage - 220-240 V AC 50/60 Hz
  • Motor type - Asynchronous, single-phase
  • Max. power consumption - 220 W
  • Max. thrust - 6200 N (*)
  • Max. linear speed (piston) - 7.5 mm/sec. (*)
  • Pump capacity - 0.75 l/min (*)
  • Usable working stroke - 270 mm
  • Max. wing opening angle - 125°
  • Ambient temperature during operation - -20°C ÷ + 55°C
  • Thermal protection - 120°C
  • Protection class - IP55
  • Weight of the device - 8.6 kg
  • Use frequency - 70 cycles/hour
  • Max. leaf width - 4.00 m (with electromechanical lock)
  • Oil type - FAAC HP

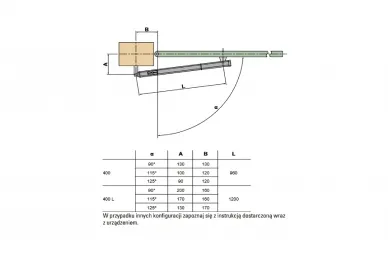

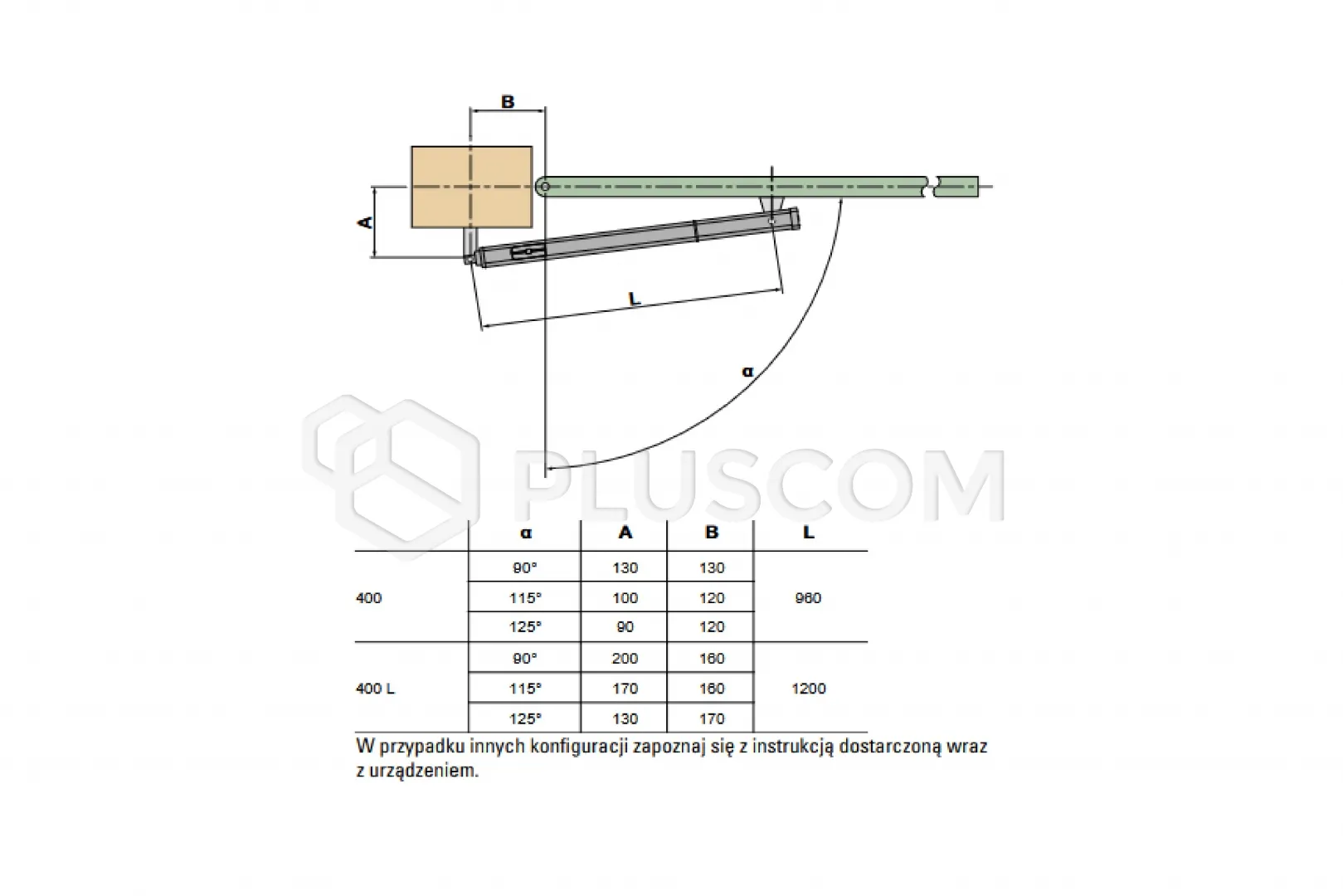

  • Mounting brackets - rear bracket (to the post) to be welded/screwed - front bracket (to the leaf) to be welded
  • Device dimensions (LxDxH) - 1034x85x119 mm
  • Control unit - none
