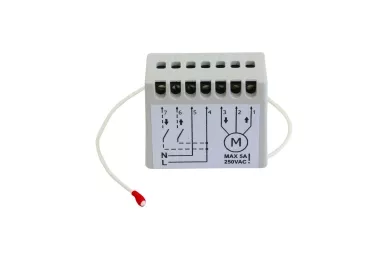

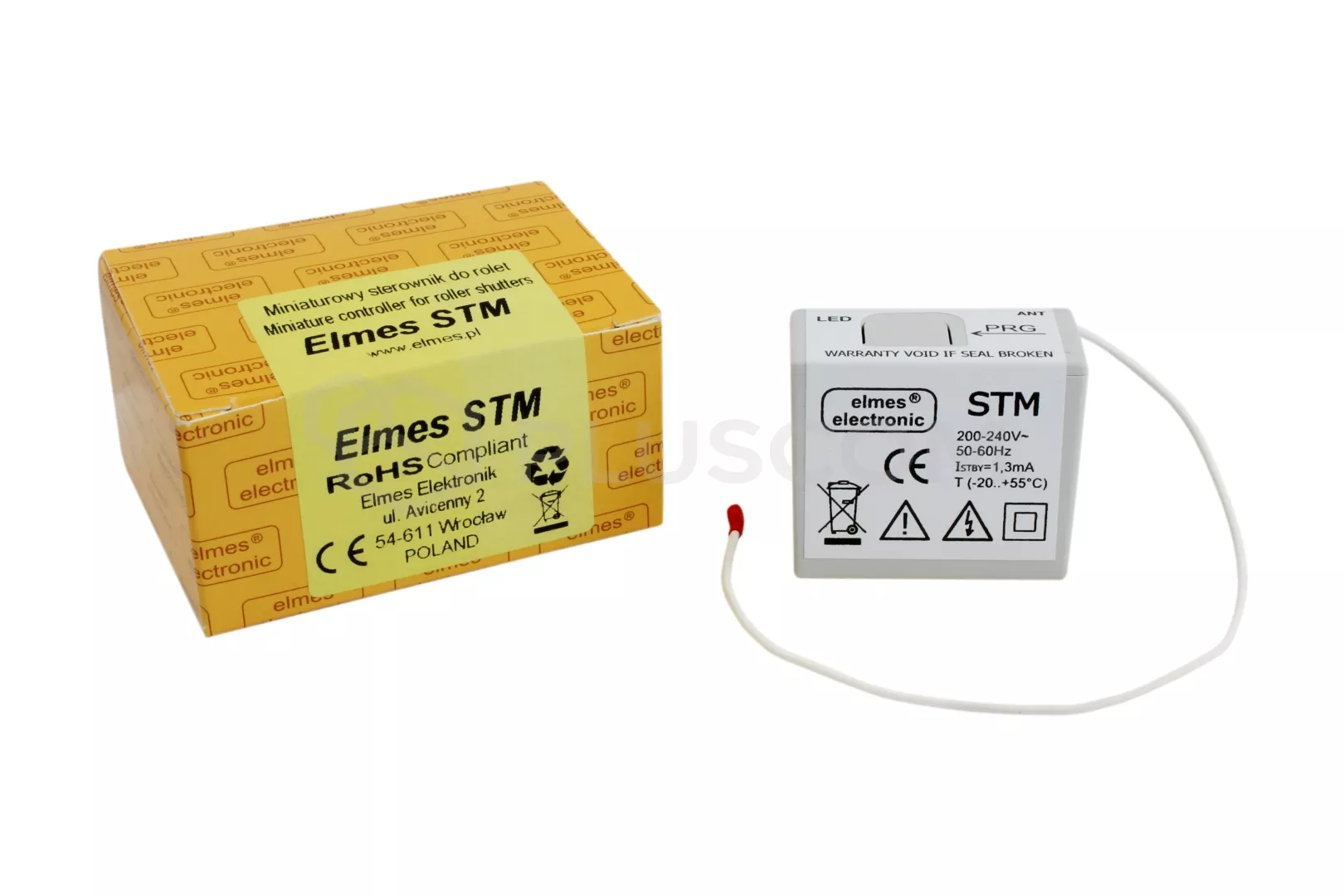

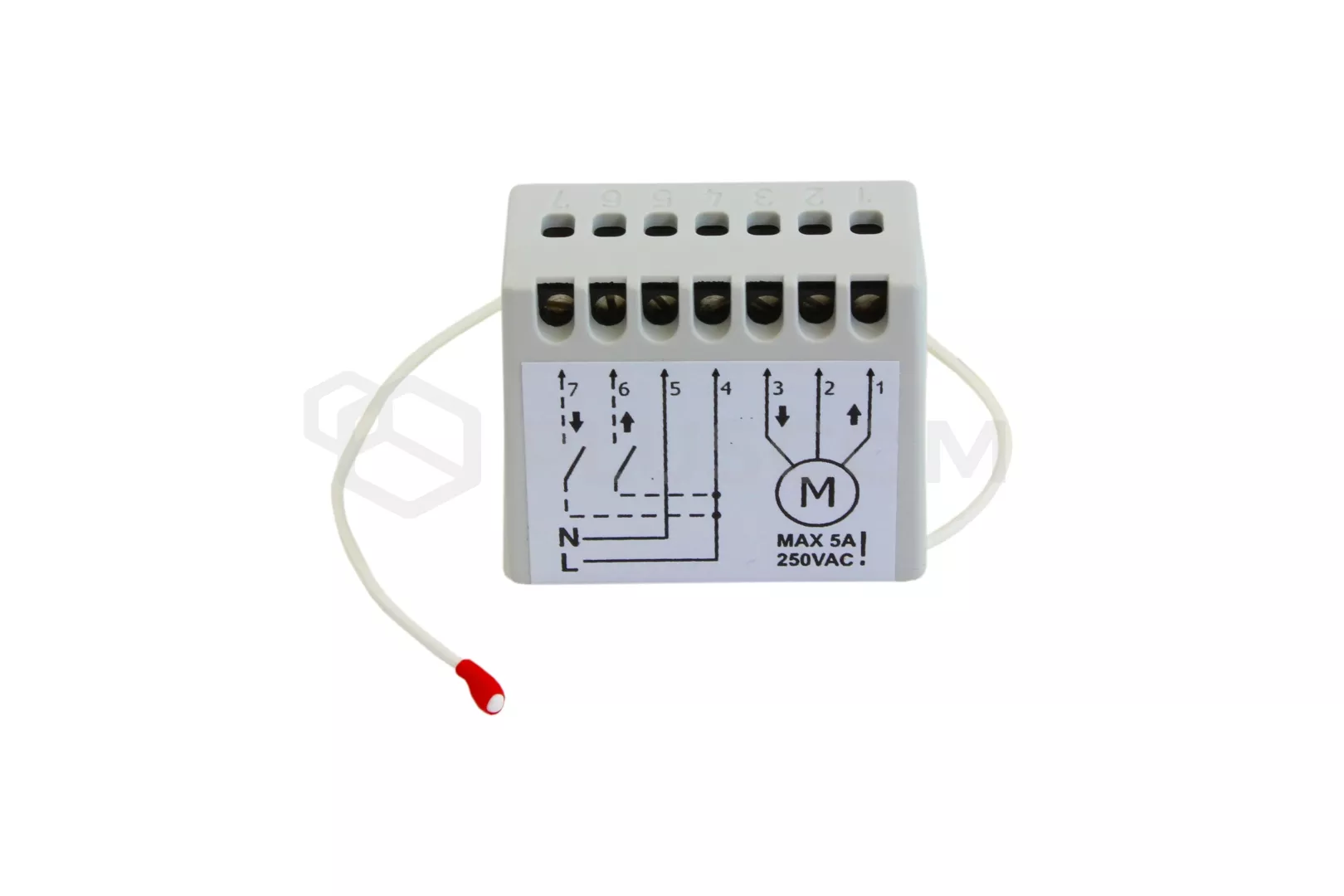

Elmes STM Miniature controller for 1 window roller

The driver Elmes STM is a small device through which you can remotely control the window roller to drive that uses an AC induction motor.

With pocketable package driver can be placed in an appliance box with a depth of 60mm concealed directly under a single or dual monostable (BELL) wall switch.

Performance Control can be performed locally using the switch or remotely using ELMES pilots. The pilot must have min two buttons. Cooperation with remote control can be done in two ways that vary depending on which button remote control is used when entering the remote controller memory.

Method 1: When the remote control to the memory controller button was used 1 - then the No. 1 pilotawywołuje move up blinds, the No. 3 - move down, and the buttons No. 2 or 4 stops the blind.

Method 2: When the remote controller memory used No. 2 remote control button - the button No. 1 on the remote control will work in the cycle: Up - Stop - Top ... while the No. 2 in the series: Down - Stop - Down ...

Wireless communication is protected KEELOQ rolling code system, each transmission is coded and different than the previous one. The system provides security and prevents the use of the captured code.

TECHNICAL PARAMETERS

• Power supply: 230VAC (0,3VA idle, 0,5VA at the relay)
• Output load: 5A 250V max
• superheterodyne radio receiver 433.92 MHz
• Memory 112 pilots
• the voltage on the control inputs 6 and 7: 250V ~ max
• Runtime relay: 0.5 s to 4.5 h
• operating temperature range of -20ºC to + 55ºC
• External dimensions: (d / s / w) 42x35x21mm
