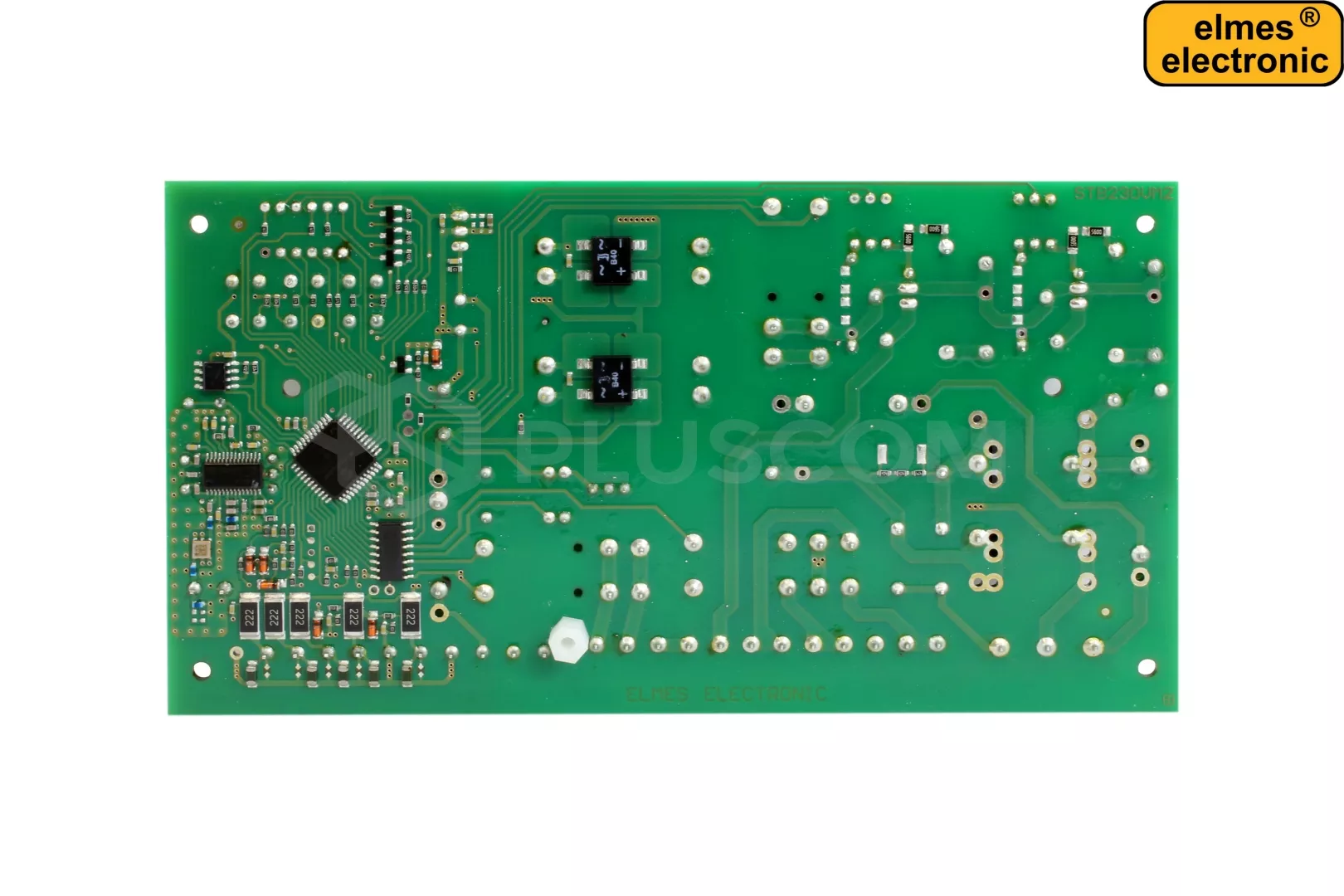

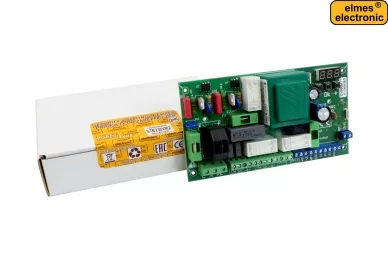

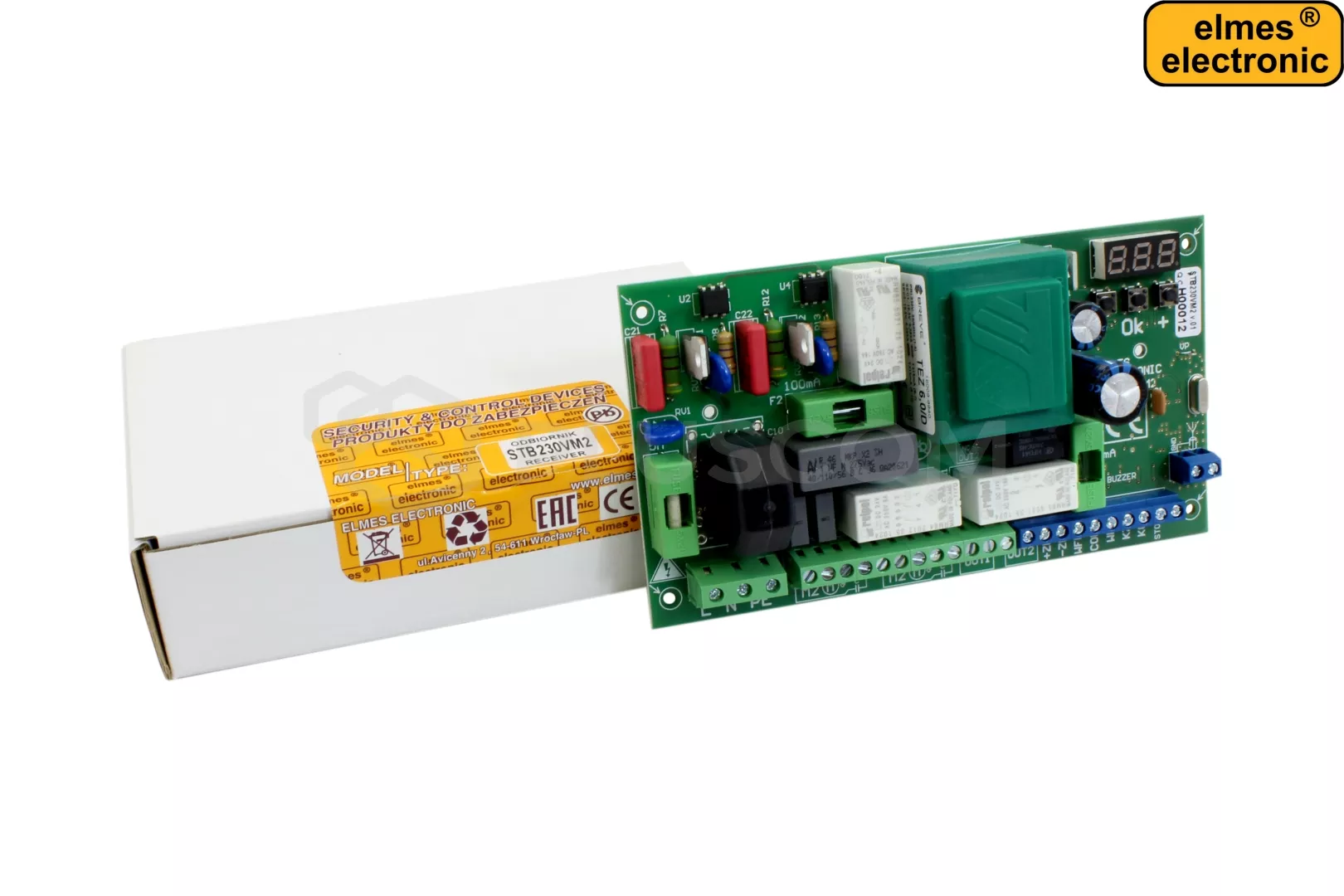

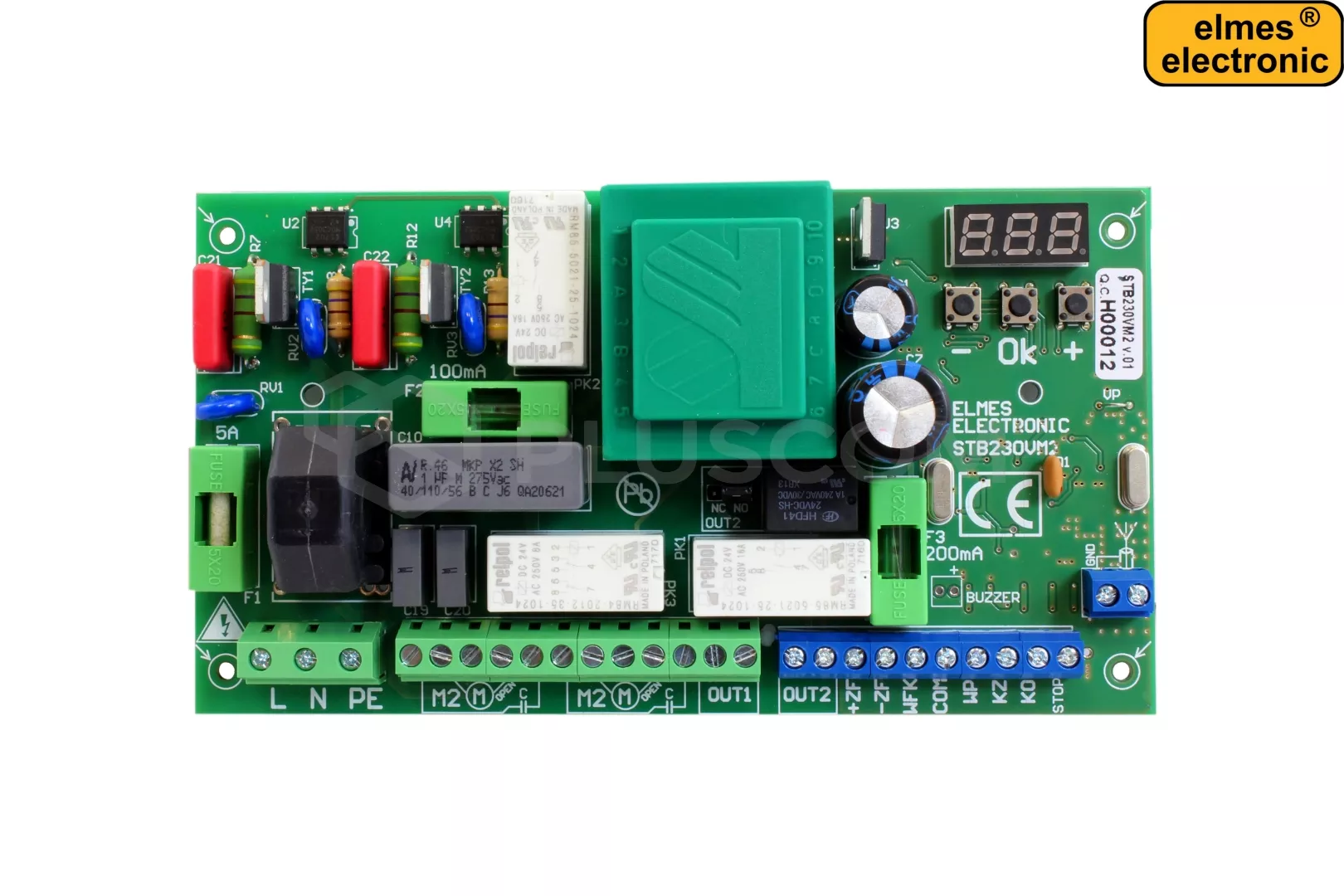

Elmes STB230VM2 Controllers for motors in moving gate

74,11 EUR including 23.00% VAT

Add to cart

On stock. Ships in one business day

Product code: #13571

Manufacturer: Elmes

Ask about this product

AC motors 230V max 2x500W/li>
4 operating modes, automatic closing
warning lamp output
additional OUT2 type NC/NO output
supports up to 448 Elmes pilots

Delivery and tax:

Poland VAT: 23.00% change

Shipping cost from:

2,53 EUR

Payment methods:

We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:

ELMES STB230VM2 Controller for single / double leaf gate for AC 230V motors with adjustable force

Elmes STB230VM2 Controllers for motors in moving gate

ELMES STB230VM2 controller designed for automation of single or double leaf doors with AC 230V motors of 500W max each.

It performs many useful functions:

cooperation with up to 448 remote controllers (ELMES 433MHz floating-point remote controls)
operating modes:
- standard (manual) - each time the pilot button opens / closes the door, the door does not close automatically when opened
- with self-closing - after pressing the button, the door starts the OPEN cycle - PAUSE - CLOSE pressing the remote control button during PAUSE stops the countdown, the next press starts CLOSE
- parking 1
- parking 2 (with possibility of stopping)
wicket function of the gate, opening only one wing
automatic closing after the programmed PAUSE time (1-255s)
cooperation with classic NC type photocells
security functions
- automatic opening of the gate in case of photocells breakage during closing
- STOP safety lock to prevent movement in both directions
- output to the warning lamp
cooperation with limit switches type NO / NC
additional relay OUT2 type NC / NO for gate control, independent control of its status by means of the remote control button
independent force adjustment for both door leaves

TECHNICAL PARAMETERS

Power supply: AC 230V power consumption max. 6VA, rest (without photocell): 2,5VA
Maximum power of wing motors: 500W + 500W
OUT1 output to the lamp: non-current, NO, galvanically isolated, load capacity: 16A / 250VAC, switching time: from 1s to 999s
OUT2 type NO / NC - jumper switching, galvanically isolated, load: 1A / 240VAC / 30VDC; switching time in monostable mode: from 0.5 s to 127 s or bistable mode
photocell output power: 24VDC, max. 150mA, fuse protected
input to NC type photocell (normally closed)
NC STOP safety input (normally closed)
Limit switch NC (Normally Closed) or NO (Normally Open)
Operating time: from 1s to 255s, common for closing and opening
PAUSE time: from 1s to 255s
Superheterodyne receiver on 433,92MHz band
Operating temperature range: - 20°C...+50°C
Dimensions (d / s / w): 165x90x45xmm
Spacing of 4 mounting holes ø = 3mm: 153x75mm
