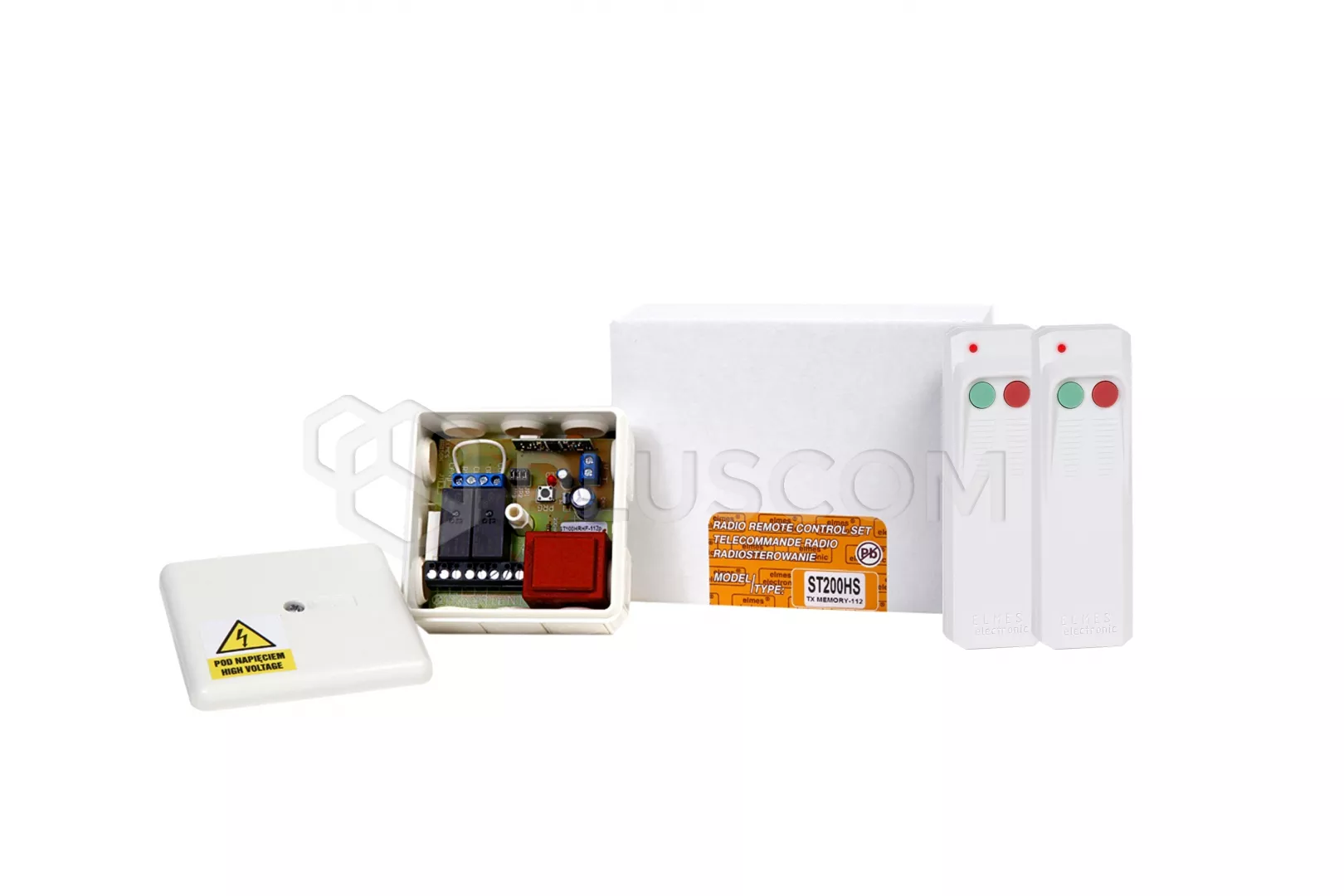

Elmes ST200HS Roller shades control set

Elmes ST200HS Radio control for gates and roller shutters

The set is intended for remote control of roller shutters, gates and others devices using an AC 230V induction motor.
The set is a comprehensive solution that will allow you to expand the gate drive or blinds with additional useful functions.

The set includes two DW200HT two-channel remote controls.

REMOTE PARAMETERS

• two-channel remote control

• operating frequency 433.92MHz
• power 10mW
• range: 200m in open space

• power supply: 9V battery
• dimensions 113x33x21mm


We can program a maximum of 112 remote controls to the receiver.
Wireless transmission is secured by the KEELOQ rolling code system which ensures high safety of use.

The ST200HS set has the following functionalities:

• works with 1 or 2 remote control buttons
• controls an external lamp that can perform the following functions
• • warning light flashes slower when opening, faster during opening closing
  • lighting illuminates continuously while the gate is moving and through programmed time after stopping (this is the time equal to PAUSE)
• automatic closing after the programmed PAUSE time (1s - 4min)
• automatic opening of the gate after the photocell is activated in time closing
• The pause time is automatically extended when the photocell is activated


TECHNICAL DATA:

• power supply from 230VAC (2VA) network
• roller shutter motor relay outputs: 2 x NO, max. 16A/250VAC
• lamp output: max. 5A/250VAC
• NC type photocell input (normally closed)
• remote memory capacity: 112
• holding time of relay outputs: 1s - 4 min, common for closing and opening
• PAUSE time: 1 s -4 min
• external dimensions 87x87x39mm
