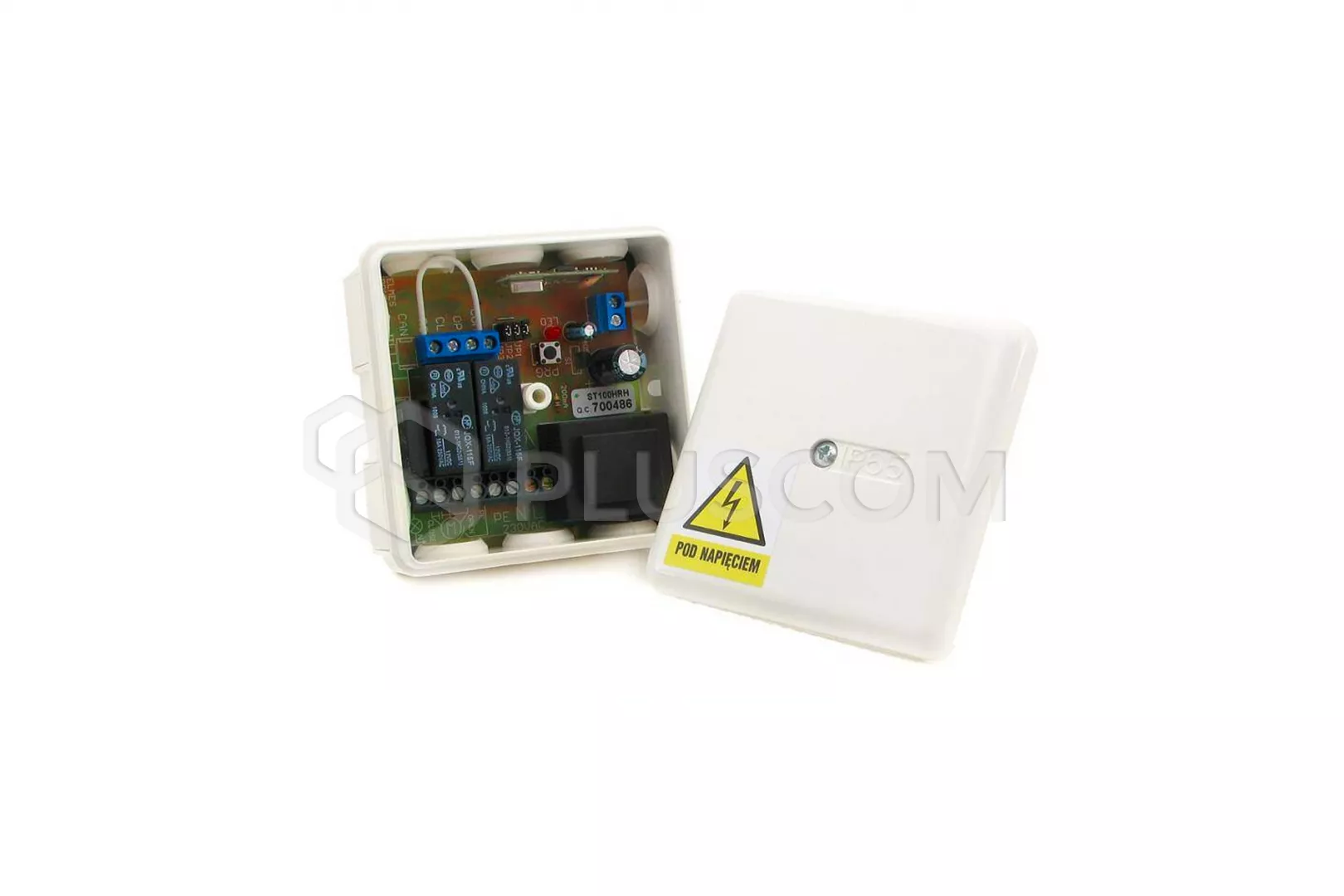

Elmes ST100HR Controller receiver for roller shutters and gates

Elmes ST100HR Roller shutter and gate controller receiver

The controller is intended for remote control of roller blinds, roller garage doors and other devices that use a commutator-free AC motor (it is recommended to use motors with limit switches). The controller has terminals for connecting a 230VAC network, a 230VAC motor, a warning lamp, wall switches and a photocell signal.

The most important features:

• control of a single roller shutter or gate
• terminals for connecting 230VAC mains voltage, 230VAC motor, warning lamp, wall switches and photocell signal
• works with 1 or 2 remote control buttons
• control of an external warning or lighting lamp
• automatic closing after the programmed PAUSE time (1 sec to 4 min)
• automatic opening of the roller shutter/gate after activation of the photocell during closing
• extension of the PAUSE time when the photocell is activated

SPECIFICATIONS:

• controller power supply: 230VAC, 2VA
• motor outputs: relay, 2 x NO, max. 16A/250VAC
• maximum number of remote controls in the memory of one controller: 12 (option 112)
• works with remote controls: UMB100H, AN200H, DWB100H, DW200H, CH4H, CH4H200
• lamp output: max. 5A/250VAC
• NC type photocell input (normally closed)
• holding time of relay outputs: 1 s to 4 min, common for closing and opening
• PAUSE time: 1 s to 4 min dimensions: 110x90x47mm
• operating temperature from 0 to + 40°C
