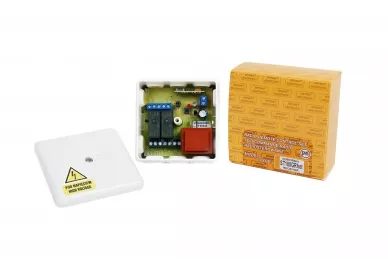

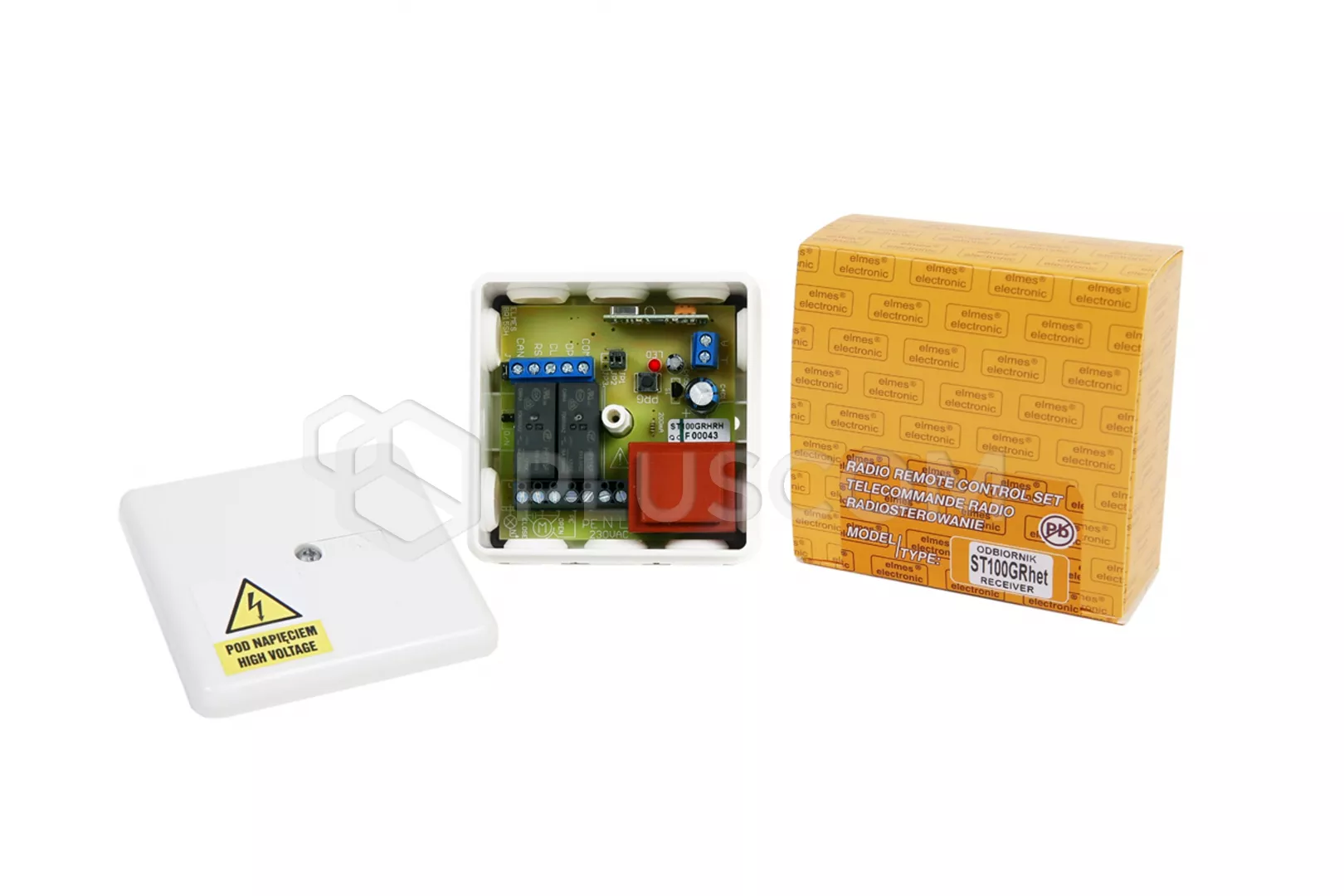

Elmes ST100GR Roller shutter controllers with group control function

39,54 EUR including 23.00% VAT
Product code: #27231
Manufacturer: Elmes
  • Built-in radio receiver
  • Controlling a single roller blind or a group of roller blinds
  • Memory: max 12 remote controls
  • Motor outputs: relay, 2 x NO
  • Controller power supply: 230VAC
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Elmes DWB100HT Two channels transmitter Elmes UMB100HT One channel transmitter Elmes CH4HT Four channels transmitter Elmes DW200HT Two channels transmitter Elmes AN200HT One channel transmitter Elmes CH32HT Thirty two channels transmitter

Elmes ST100GR Roller shutter controllers with control function group

The controller is designed to control a single roller blind or a group of roller blinds. It has a built-in radio receiver and transmission system serial CAN, thanks to which it is possible to connect many controllers common two-wire bus.
This allows you to build a comprehensive roller shutter system in the facility, with switches controlling all roller blinds, controlling a group of roller blinds in a given room, as well as each roller blind separately. You can control both a group and a single roller blind be done using a wall switch or remote control.

Single roller blind control
The controller controls the operation of one roller shutter motor. The motor can be controlled using remote control or wired switch.

Controlling a group of roller shutters (only if the controllers are connected via a two-wire CAN bus)
Each controller, in addition to controlling its own roller shutter, can be selected as a group controller and control a group of up to 42 roller shutters. Including In this case, an additional pair of wired switches or a remote control allow you to control a group of roller shutters sequentially, i.e. with a break of 0.5 s between switching on the next roller shutter.

TECHNICAL DATA:
  • KEELOQ variable code
  • controller power supply: 230VAC, 2VA
  • motor outputs: relay, 2 x NO, max. 16A/250VAC
  • only induction motors used for roller shutters with built-in limit switches; do not use commutator motors due to the radio interference they produce, limiting the range of radio remote controls
  • maximum length of the CAN bus when using twisted pair cable: 500m
  • maximum number of controllers connected to the CAN bus: 64
  • maximum number of controllers in one group: 42
  • maximum number of remote controls in the memory of one controller: 12 (option 112)
  • switching on subsequent controllers in the group every 0.5s in the order consistent with programming
  • holding time of relay outputs: 1s ÷ 4 hours, common for closing and opening
  • external dimensions: 110x90x47mm
  • cooperation with remote controls: UMB100H, AN200H, DWB100H, DW200H, CH4H, CH4H200, CH8H200, CH32HT
