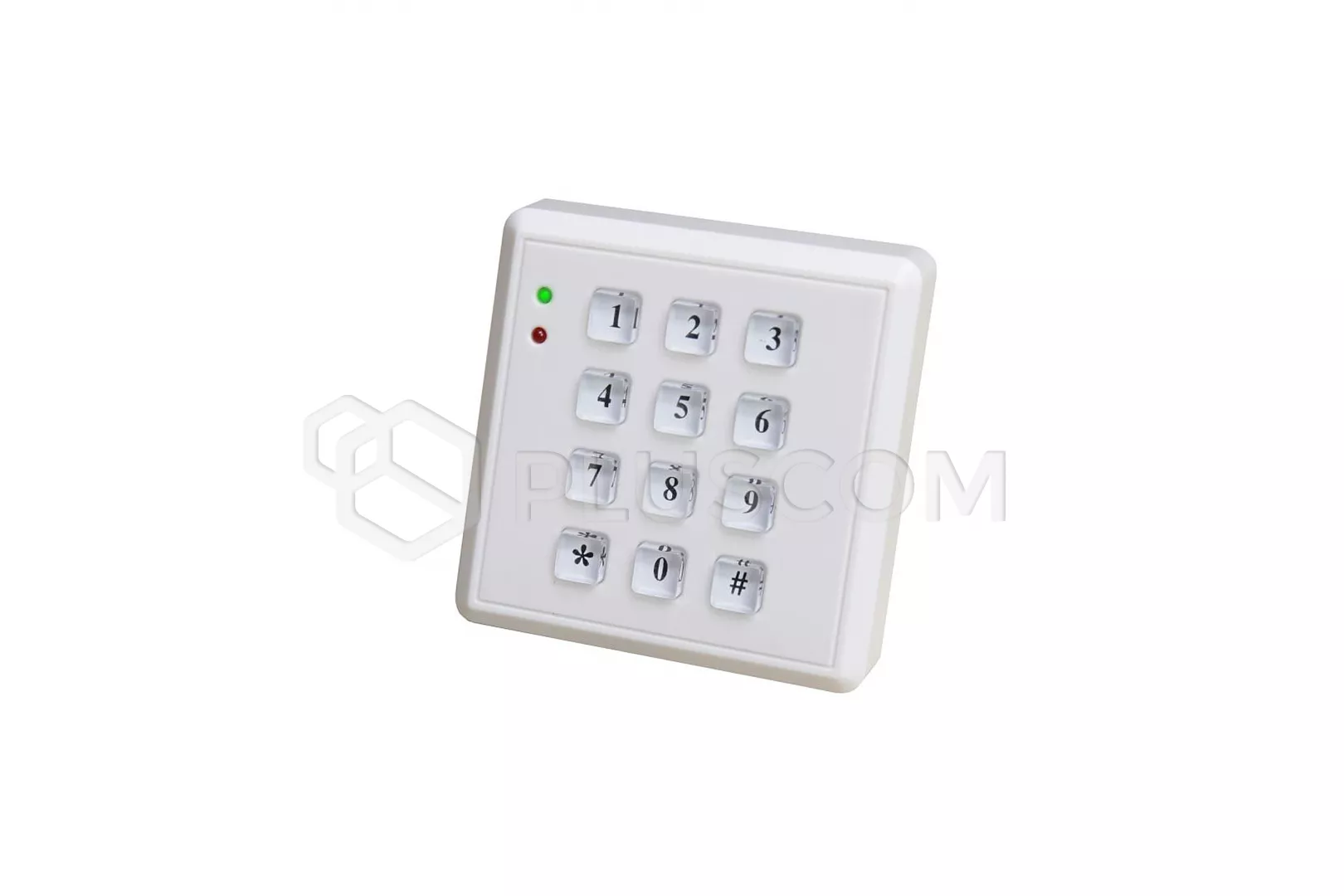

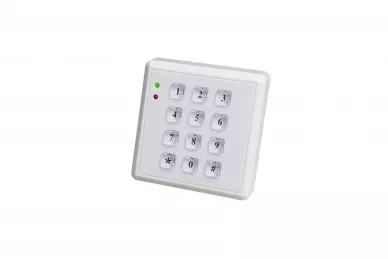

Elmes KB1 wireless keyboard

24,94 EUR including 23.00% VAT
Product code: #27211
Manufacturer: Elmes
  • Variable code KEELOQ
  • Memory for up to 16 passwords
  • Range: up to 100m
  • Cooperation: CB32 / CBP32 control panel
  • Anti-sabotage protection
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Elmes KB1 wireless keyboard

The KB1 wireless keypad can be used to arm/disarm CB32/CBP32 control panels, as well as in systems remote control. Works with most Elmes receivers (except RP501).
Keyboard works as a password-protected remote control and can replace up to 16 1-, 2- or 4-button remote controls.

How it works
After entering the password (3 to 8 digits), the keyboard wirelessly sends the control code assigned to this password. Two types of passwords are possible:
  • Single-channel type: After entering the password and pressing the # button, the keypad sends the code to the alarm control panel or receiver, which corresponds to pressing a button on a single-channel remote control
  • Multi-channel type: After entering your password and pressing the # button, the keyboard waits for 8 seconds for you to press one from buttons 1, 2, 3 or 4 and sends the code corresponding to pressing the selected button on the four-channel remote control. Exit the password entry mode with the "*" (asterisk)
SPECIFICATIONS:
  • frequency: 433.92 MHz, <5mW
  • range: up to 100m in open areas
  • memory for up to 16 passwords (from 3 to 8 digits)
  • current consumption: 1.5A at rest, 10mA while transmitting
  • power supply: 2 1.5V AAA batteries
  • tamper alarm of opening the housing or removing it from the base
  • working indoors
  • operating temperature range: from 0°C to +55°C
  • external dimensions: 86x86x23mm
