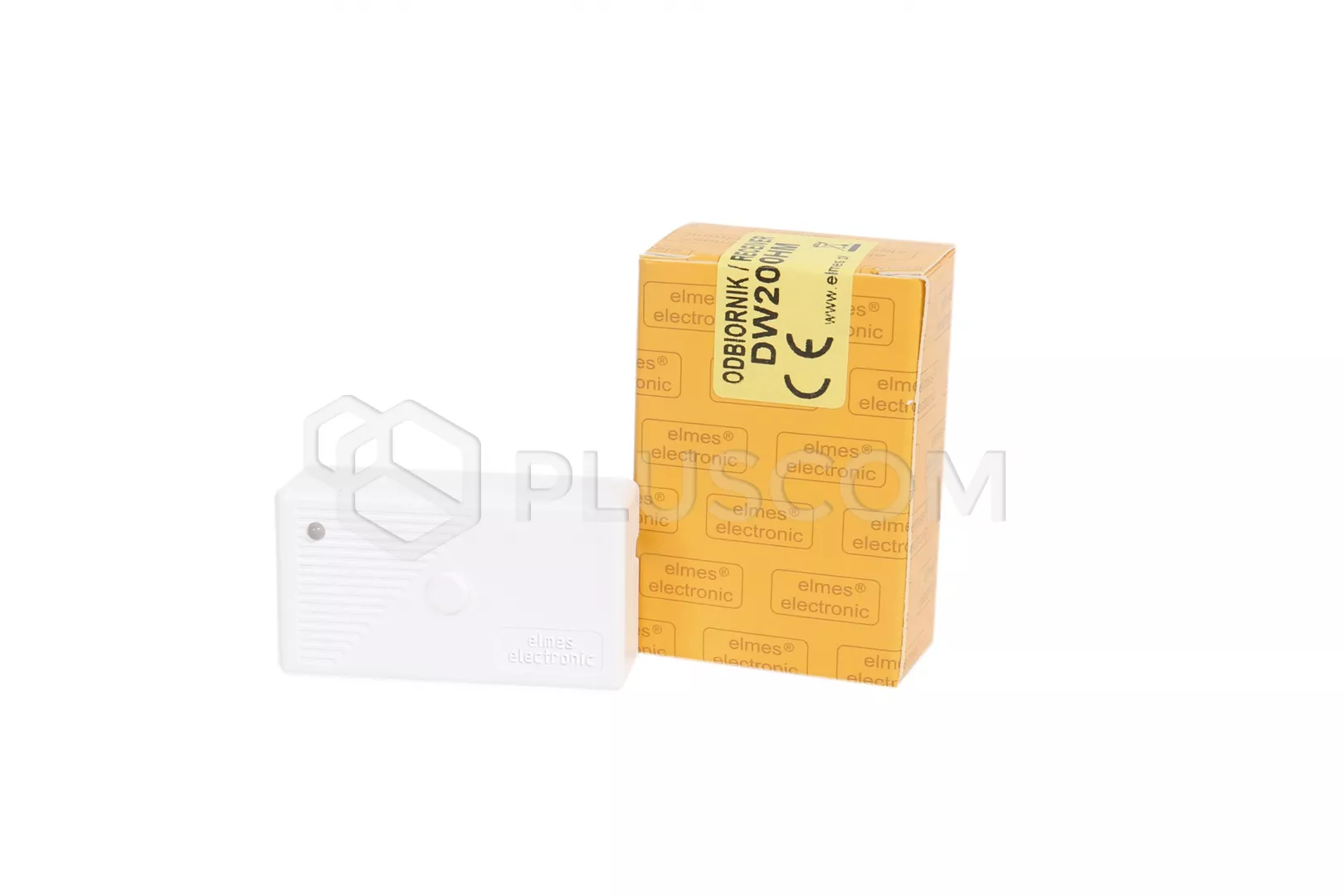

Elmes DW200HMR Two-channel miniature receiver

18,03 EUR including 23.00% VAT
Product code: #27236
Manufacturer: Elmes
  • Odbiornik 2-kanałowy
  • 2 NO/NC relay outputs
  • Maximum number of remote controls: 12 (option 112)
  • Operating frequency 433.92MHz
  • Additional S transistor output
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Elmes DWB100HT Two channels transmitter Elmes UMB100HT One channel transmitter Elmes CH8HT Eight channels transmitter Elmes DW200HT Two channels transmitter Elmes DWM50HT Two-channel miniature remote control Elmes CH32HT Thirty two channels transmitter Elmes AN200HT One channel transmitter

Elmes DW200HMR Two-channel miniature receiver

DW200HMR is a miniature receiver using a variable system KEELOQ code. The receiver works with a maximum of 12 (or 112 - optional) Elmes remote controls in the 434MHz band, type DWM50H, UMB100H, AN200H, DWB100H, DW200H, CH4H, CH4H-200, CH8H or CH32H. Entering the 13th (or 113th) remote control into memory will delete the first one, etc

The receiver has an output for connecting external acoustic signaling, a two-color LED indicating switching of the first channel and two relay outputs type NO.

The "S" open collector signaling output is used for external connection traffic light. Two short-to-ground pulses appear on this output when turned on any channel, and one - when turned off. By shorting the JP2 jumper we can turn it off signaling for the second channel and leave it for the first one. The DW200HM receiver is a two-channel receiver, but by shorting the JP1 jumper, you can switch it to single-channel operation mode.
Output "S" cannot be connected directly to + power supply.

TECHNICAL DATA: frequency: 433.92MHz
  • power supply 10..15 VDC/50 mA
  • maximum number of remote controls: 12 (optionally up to 112)
  • relay outputs: 0.5A/12VAC or 1A/24VDC
  • "S" output for buzzer: 1A/60V, "open collector" type
  • temp. operation 0 to + 40°C
