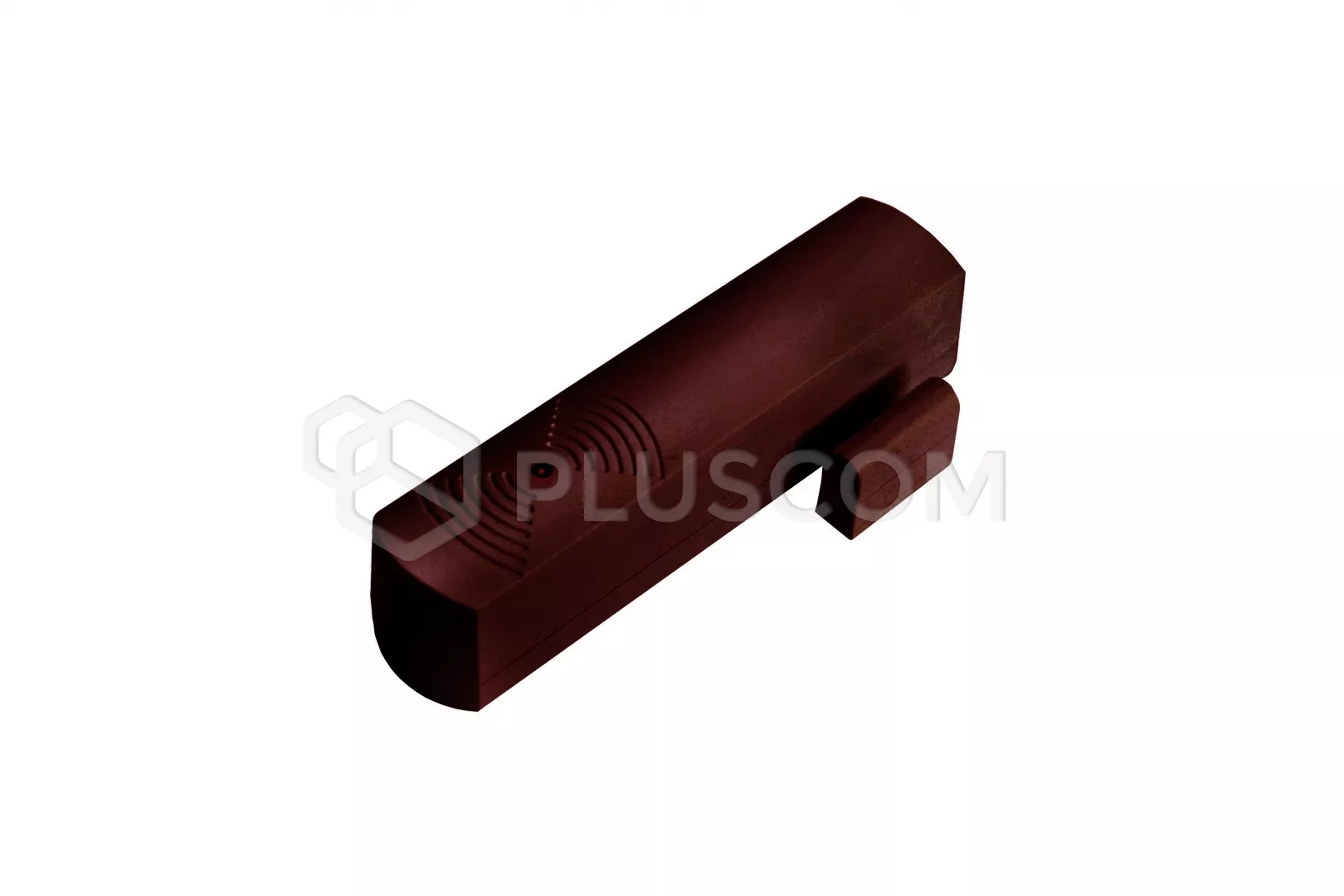

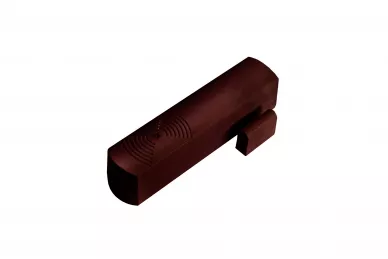

Elmes CTX5B magnetic opening and closing detector

21,14 EUR including 23.00% VAT
Product code: #27221
Manufacturer: Elmes
  • Operating frequency: 433.92MHz
  • Distance between the magnet and the detector: up to 10mm
  • 2 operating modes
  • Range in open areas: up to 100m
  • Brown color
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Wireless magnetic opening and closing detector, battery powered. 3V CR123A

The detector is designed to transmit information via radio about the opening and closing of doors, windows, etc.

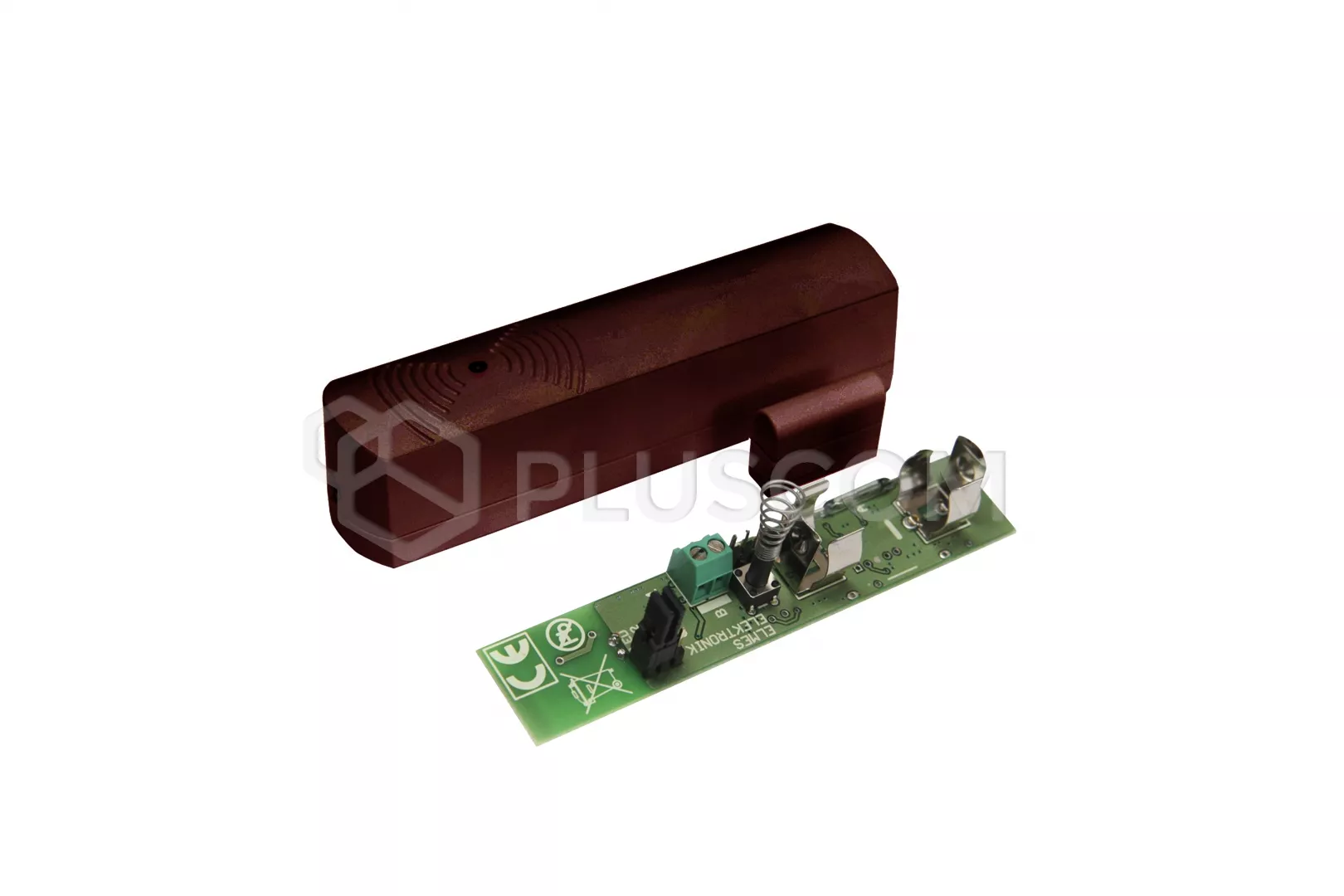

CTX5B consists of a transmitter with a built-in reed switch and an external magnet and is used to secure a single window or door leaf.

Specification:
  • frequency: 433.92 MHz, <5mW
  • maximum range: up to 100m in open areas
  • current consumption: 2.5mA at rest, 10mA during transmission
  • power supply: 3V CR123A battery
  • maximum distance of the magnet from the detector housing: 10mm
  • tamper alarm time: approx. 20s
  • operating temperature range: from -25C to +55C
  • external dimensions of the detector: 105/24/27mm
