ELMES CH8HRP 8-channel receiver in a hermetic housing

ELMES CH8HRP 8-channel receiver in a hermetic housing

Receiver CH8HRP is used in radio remote control systems, where there are increased current loads, e.g. in LED lighting. It has 8 galvanically separated NO type relay outputs with load capacity up to 20A every.
The activation of the output is signaled by the lighting of the corresponding diode LED.

The receiver works with all transmitters and remote controls Elmes for the 433.92MHz band, also with the RP501 transmitter. Their total the quantity in the system cannot exceed 40.
Entering the next one will delete it first. The need to delete one transmitter requires erasing the entire memory receiver and then re-enter the remaining ones into memory transmitters.

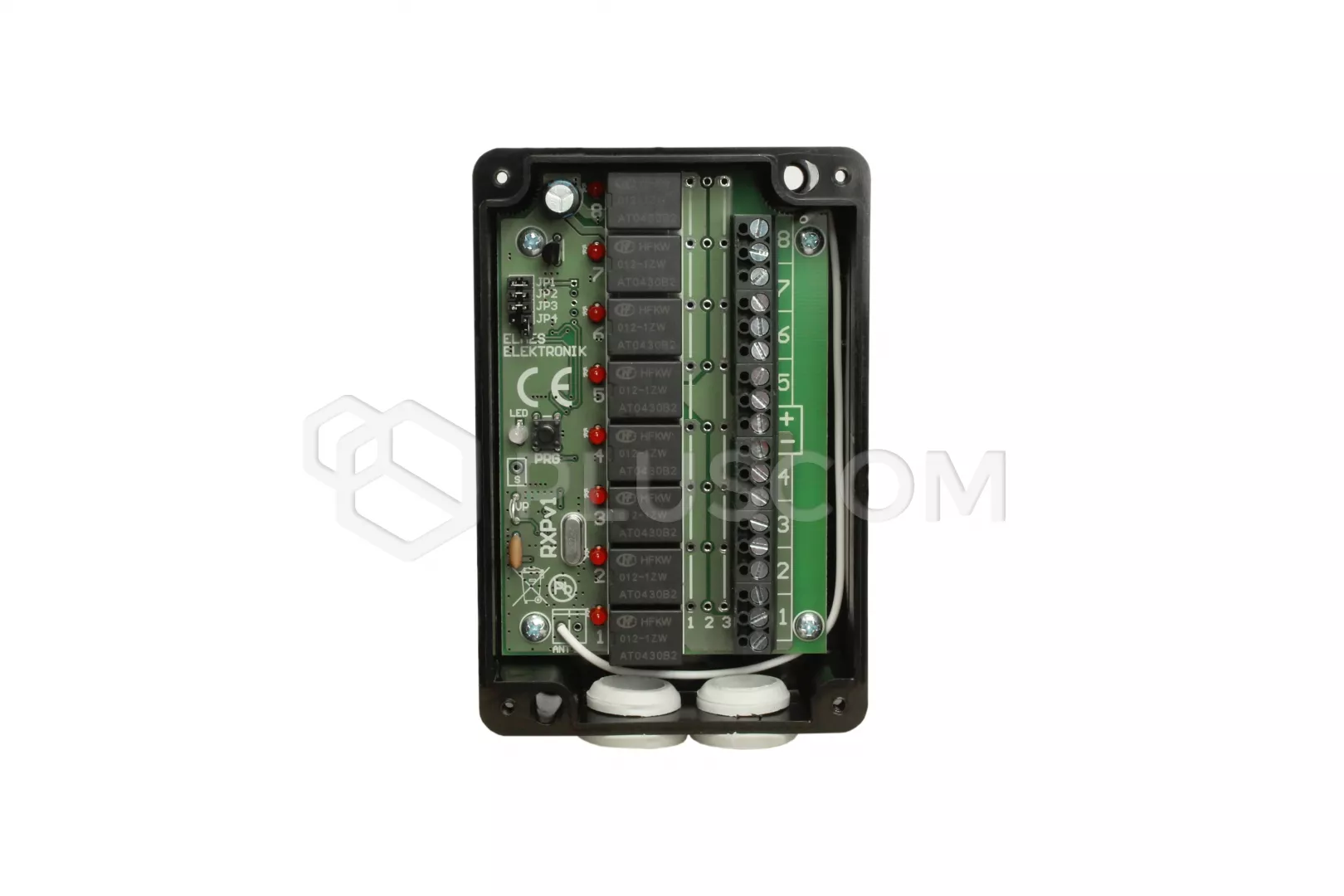

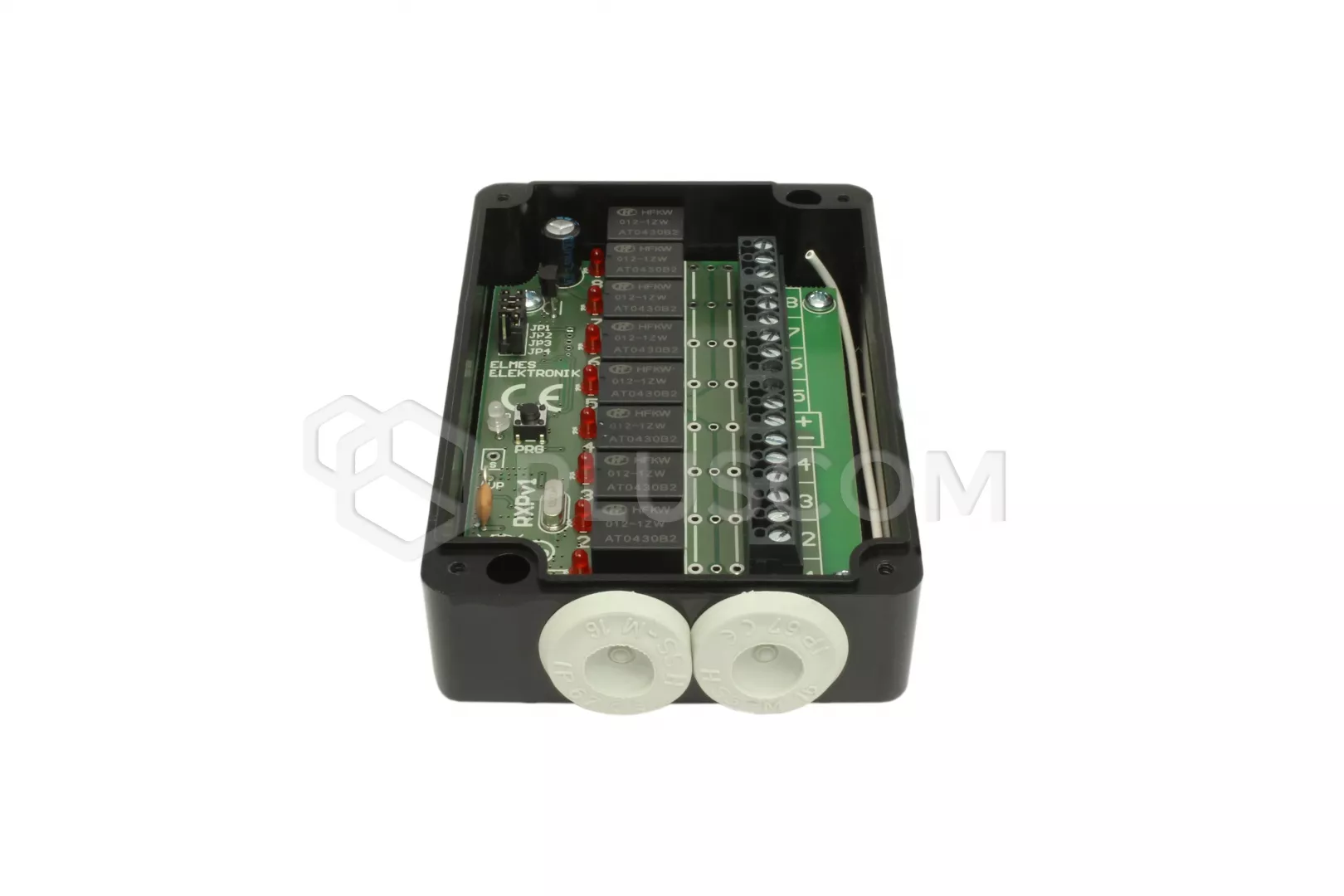

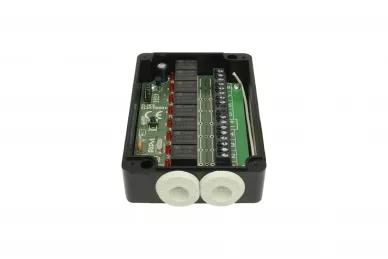

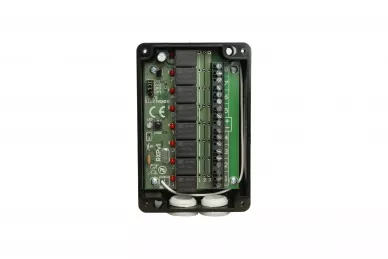

The receiver has eight normally open (NO) separated relay outputs galvanically with the possibility of configuring each output as short-circuiting to (+) or (-) supply voltage. Each output has separate terminals connection on the terminal strip. The outputs are programmed by the installer and can be switched on temporarily with a set switch-on time (monostable) or with permanent switching on, i.e. until the signal is received disconnection (bistable). The activation of the outputs is indicated by LED diodes visible through the transparent cover of the receiver. It is also possible to use dedicated S output to control the acoustic siren.

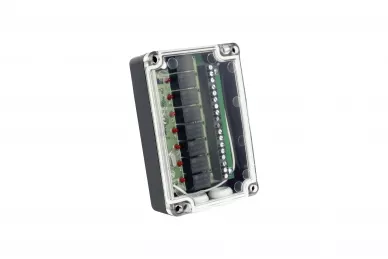

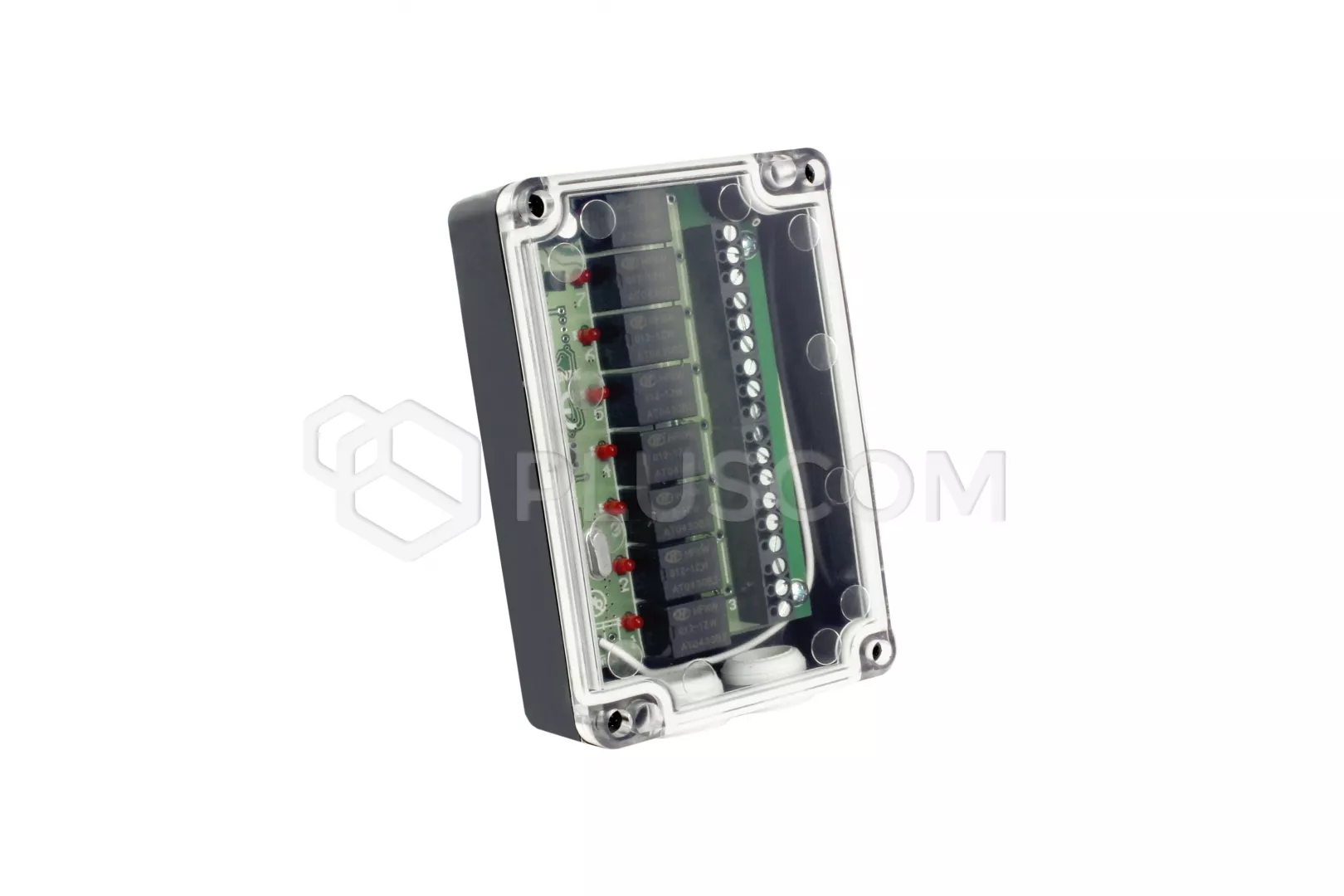

The hermetic housing of the receiver allows it to be used even in harsh conditions atmospheric conditions, outdoors.

SPECIFICATIONS:

• power supply from 11 to 14 VDC (nominal 12VDC)
• current consumption 30mA plus 50mA for each switched on relay
• 8 NO relay outputs (maximum 5A)
• frequency 433.92MHz
• maximum number of transmitters: 40
• operating temperature range: -25°C to +55°C
