Elmes CBP32S wireless and wired alarm control panel in a housing

140,74 EUR including 23.00% VAT
Product code: #27210
Manufacturer: Elmes
  • Wireless detectors support: 32
  • Wired detectors support: 6
  • Support: 16 users
  • Event memory: 256
  • Built-in GSM module

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

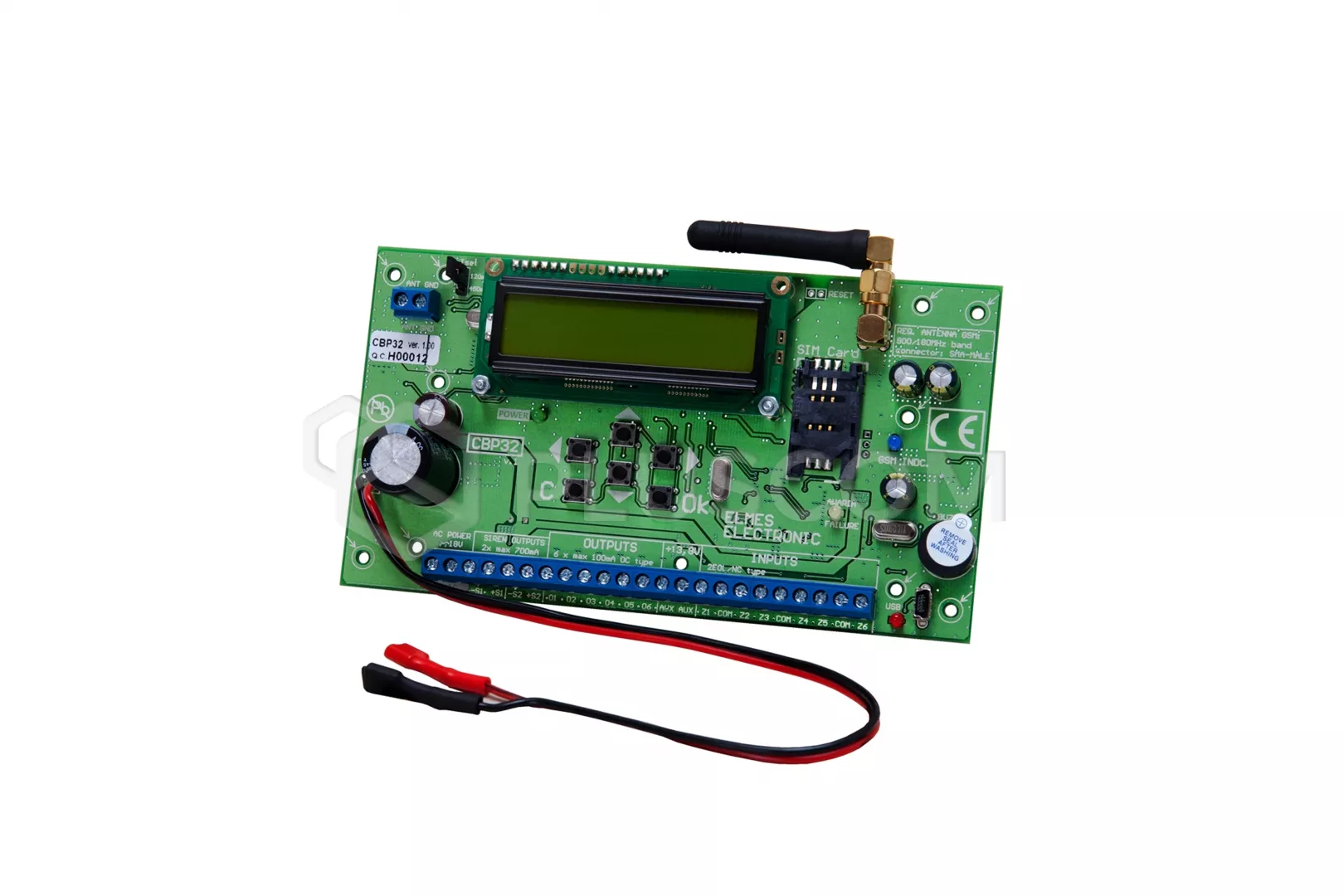

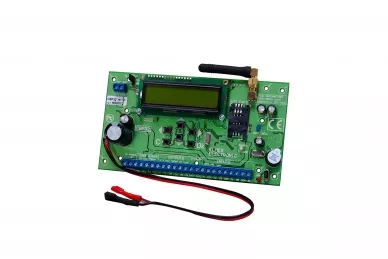

ELMES CBP32S wireless-wired alarm control panel in a housing and with a transformer

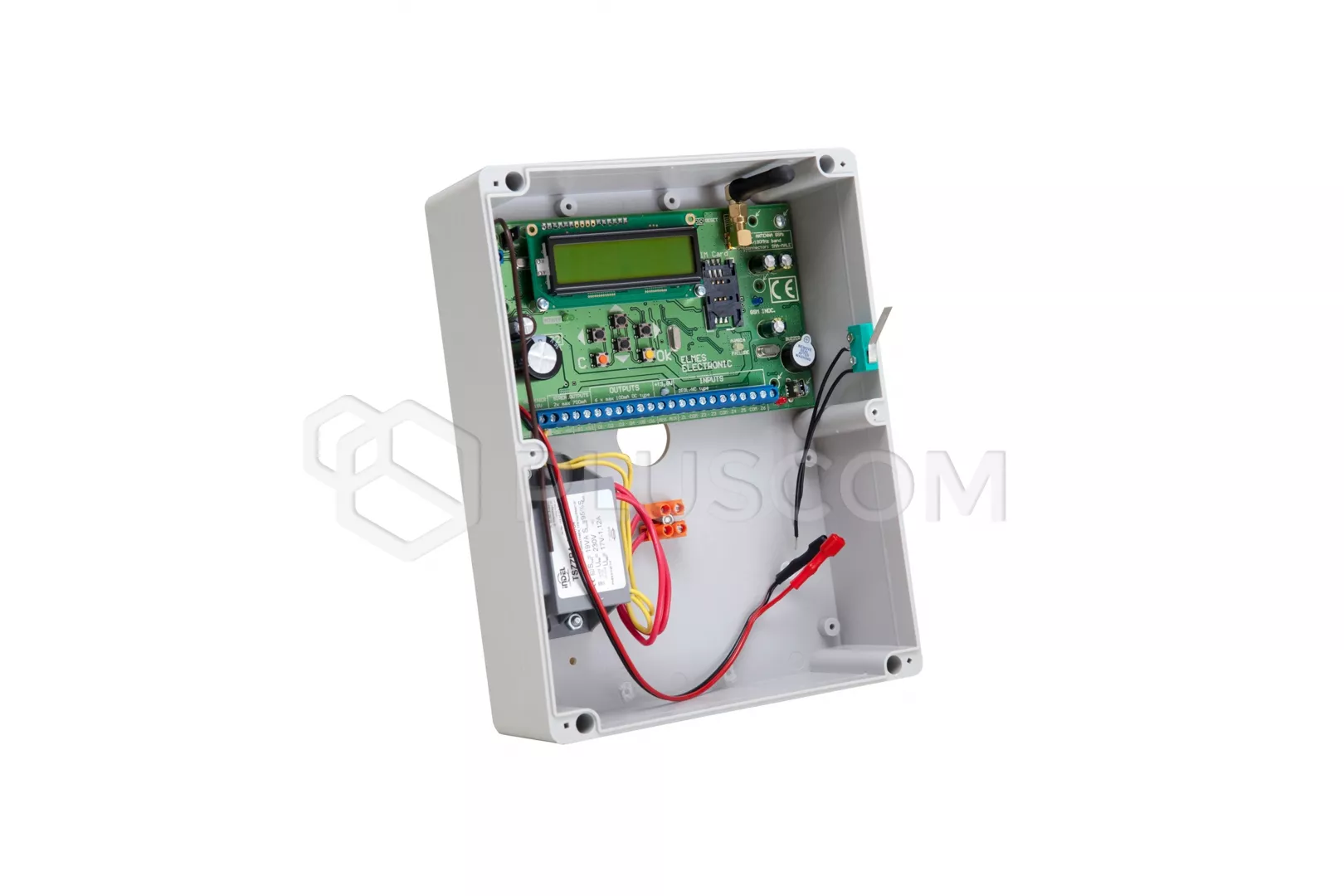

Set with CBP32 control panel in a plastic housing with a transformer. The housing will accommodate batteries 1.2Ah and 5Ah.

The CBP32 alarm control panel has a built-in GSM telephone module and is intended for use in burglary and attack alarm systems installations, access control and remote control. Works with wireless Elmes detectors and remote controls.

The control panel supports up to 16 users, up to 6 wired detectors and up to 32 wireless detectors. It has eight programmable outputs, two of which are high-current outputs and six are OC type outputs.
The control panel can be programmed using the buttons on the board LCD display.
Additionally, the control panel can be configured and the software updated factory (firmware) using a PC.

Characteristic and functional features of the CBP32 control panel:
  • built-in GSM module for notification and remote control via SMS and CLIP
  • support for 32 wireless detectors - alarm lines of any kind names
  • 6 parametric inputs for wired detectors
  • identification of 16 users
  • programming using buttons and display on the board or computer (USB)
  • arming and disarming the control panel with a remote control or GSM telephone,
  • wide selection of alarm zone types
  • functional modes of partial arming of the control panel (day, night)
  • panic alarm (call for help) activated by remote control - function "Anti-attack"
  • memory of the last 256 events, including the type of event and its time speech
  • acoustic signaling of zone violation in the "gong" line
  • monitoring the presence of detectors and other external devices
  • cooperation with the Elmes Elektronik WSS wireless siren
  • two wired outputs S1 and S2 (**), supplying 12V when switched on, with current capacity 700mA, electronically protected against overload and anti-sabotage protected against cutting wires and short circuit
  • O1÷O6 outputs, OC type (open collector), with a max. load capacity 100mA
  • S2 and O1÷O6 outputs with programmable purpose
  • programmable output activation time in the range from 1 to 999s
  • anti-sabotage signaling of radio band interference on line 30
  • radio signal level indicator in the form of a character line on the panel LCD
  • possibility to configure and update the control panel software PC
  • supplying the control panel with 17-18VAC AC
  • emergency power supply with a 12V gel battery with a capacity of 1.2Ah, 7Ah or 17Ah
The CBP32 control panel can also be controlled using the Elmes application Electronics or universal programs for download in the App Store and Google Play.
