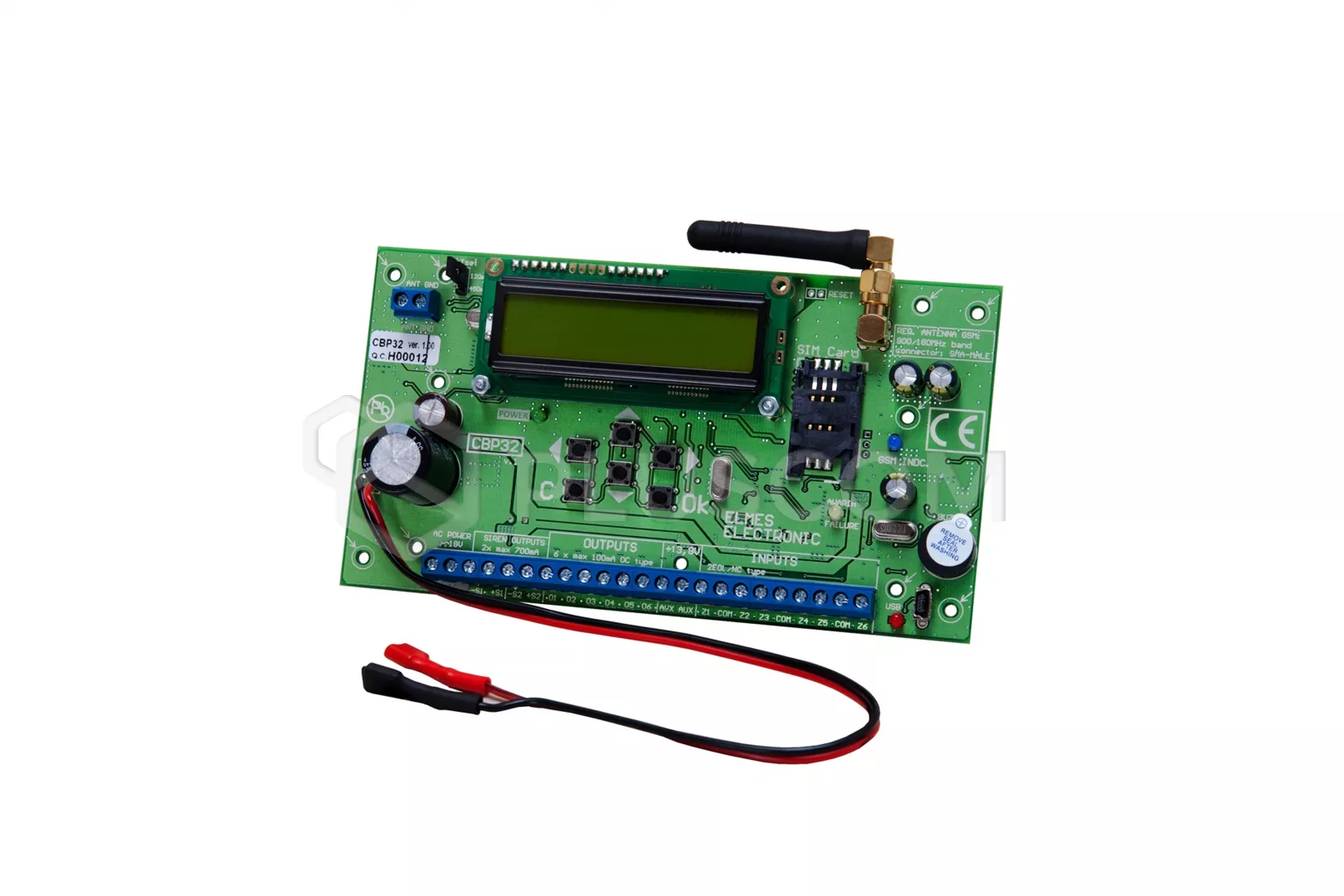

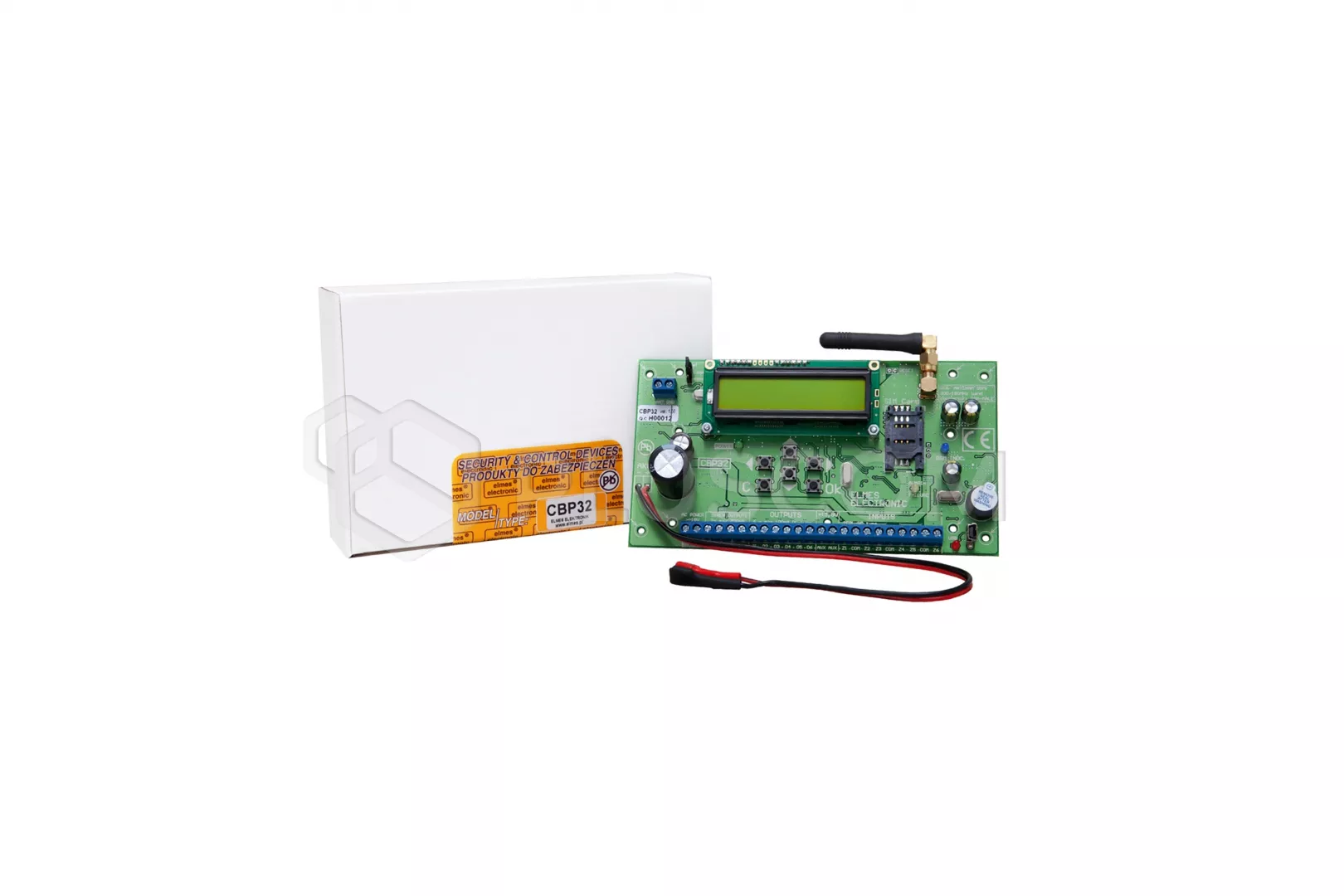

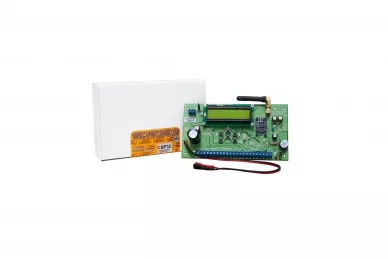

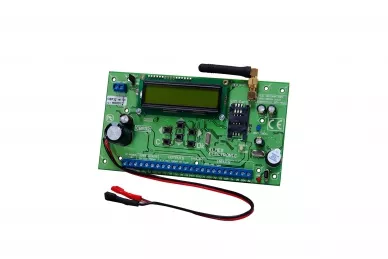

ELMES CBP32 wireless and wired alarm control panel

The CBP32 alarm control panel has a built-in GSM telephone module and is intended for use in installations of burglary, attack, access control and remote control alarm systems. Works with Elmes wireless detectors and remote controls.

The control panel supports up to 16 users, up to 6 wired detectors and up to 32 wireless detectors. It has eight programmable outputs, two of which are high-current outputs and six are OC type outputs.
The control panel can be programmed using the buttons on the board thanks to the built-in LCD display.
Additionally, the control panel can be configured and the factory software (firmware) updated using a PC.

Characteristic and functional features of the CBP32 control panel:

• built-in GSM module for notification and remote control via SMS and CLIP
• support for 32 wireless detectors - alarm lines with any names
• 6 parametric inputs for wired detectors
• identification of 16 users
• programming using buttons and display on the board or computer (USB)
• arming and disarming the control panel with a remote control or GSM telephone,
• wide selection of alarm zone types
• functional modes of partial arming of the control panel (day, night)
• panic alarm (call for help) activated by remote control - "Anti-panic" function
• memory of the last 256 events, including the type of event and the time of its occurrence
• acoustic signaling of zone violation in the "gong" line
• monitoring the presence of detectors and other external devices
• cooperation with the Elmes Elektronik WSS wireless siren
• two wired outputs S1 and S2 (**), supplying 12V when switched on, with a current capacity of 700mA, electronically protected against overload and tamper-proof against cutting the wires and short circuit
• O1÷O6 outputs, OC type (open collector), load capacity max. 100mA
• S2 and O1÷O6 outputs with programmable purpose
• programmable output activation time in the range from 1 to 999s
• anti-sabotage signaling of radio band interference on line 30
• radio signal level indicator in the form of a character line on the LCD panel
• possibility to configure and update the control panel software from a PC
• supplying the control panel with 17-18VAC AC
• emergency power supply with a 12V gel battery with a capacity of 1.2Ah, 7Ah or 17Ah

The CBP32 control panel can also be controlled using the Elmes Elektronik application or universal programs available for download in the App Store and Google Play.
