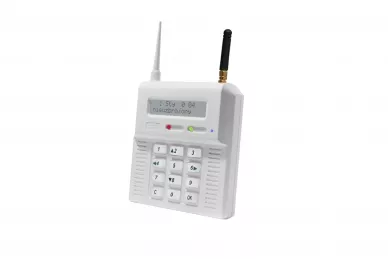

Elmes CB32 GBS Wireless alarm control panel with GSM and antenna

Elmes CB32 GBS Wireless alarm control panel with a built-in module GSM and external antenna

CB32 GBS Wireless alarm control panel with built-in module GSM telephone and external antenna. It is an extension of the CB32GB model and allows you to connect an external GSM antenna. The control panel's antenna connector is SMA female. It is intended for use in system installations burglary, attack and access control alarms. Cooperates with wireless detectors and remote controls by Elmes.
It has two parametric inputs for connecting any detectors wired and three programmable outputs for connection external acoustic and optical signaling devices.

The backlit white LCD panel and numeric keypad allow you to: convenient operation and programming of the control panel. The real-time clock makes it possible precise determination of the time of occurrence of the 256 most recently recorded events. Low power consumption allows the control panel to operate in power mode for over 24 hours emergency. The control panel supports up to 16 system users and up to 32 detectors wireless, with the ability to define their names. Possibility to connect to PC simplifies the configuration of the control panel and allows it to be updated software. It is possible to use the CB32 GBS control panel as a subsystem in wired alarms.
The control panel can be powered from the power supply line of the wired system, and its alarm outputs can be connected to a wired control panel. To configure alarm system using a PC, you need a program and cable drivers USB-RS.

CB32GBS FEATURES:

• Built-in GSM module for notification and remote control via SMS and CLIP
• External GSM antenna
• Support for 32 wireless detectors - alarm lines of any kind names
• Two parametric inputs for wired detectors
• Identification of 16 users and defining their names, including 4 administrators
• Backlit keyboard and alphanumeric display, LEDs LED signaling
• Arming and disarming the control panel with a password from the keyboard or remotely using the remote control
• Wide selection of alarm zone types
• Functional modes of partial arming of the control panel (day, night)
• Panic alarm (call for help) activated by remote control - function "Anti-attack"
• Memory of the last 256 events, including the type of event and its time speech
• Acoustic signaling of zone violation in the "gong" line
• Entry delay activated by remote control or zone violation delayed
• Programmable delay time for "entry" and "exit" in the range from 0 to 99 seconds
• Monitoring the presence of detectors and other external devices
• Cooperation with the Elmes Elektronik WSS wireless siren
• Three wired outputs with definable protection up to 1A purpose (signaling alarm, system arming, power failure or other failure)
• Programmed time on alarm outputs (0-999s)
• Anti-sabotage protection of the OUT1 output for the siren external
• Anti-sabotage signaling of radio band interference on line 30
• Parametric (1 kOhm) anti-tamper input for device protection external
• Radio signal level indicator in the form of a character line on the panel LCD
• Possibility to configure and update the control panel software PC
• Internal acoustic signal built-in under the control panel keyboard 92dB
• Supplying the control panel with a 10..20 VDC power supply and a capacity of 1200mA minimum
• Emergency power supply with two Li-ION batteries type 14500 (like AA) o capacity 600-850mAh ensuring over 24 hours of operation of the control panel after a power outage networks
• Illuminated white LED panel
