Elmes CB32 GB Wireless control panel with GSM

102,23 EUR including 23.00% VAT
Product code: #33408
Manufacturer: Elmes
  • Wireless detectors support: 32
  • 2 wired outputs
  • Built-in GSM module
  • Built-in acoustic alarm
  • White backlight
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

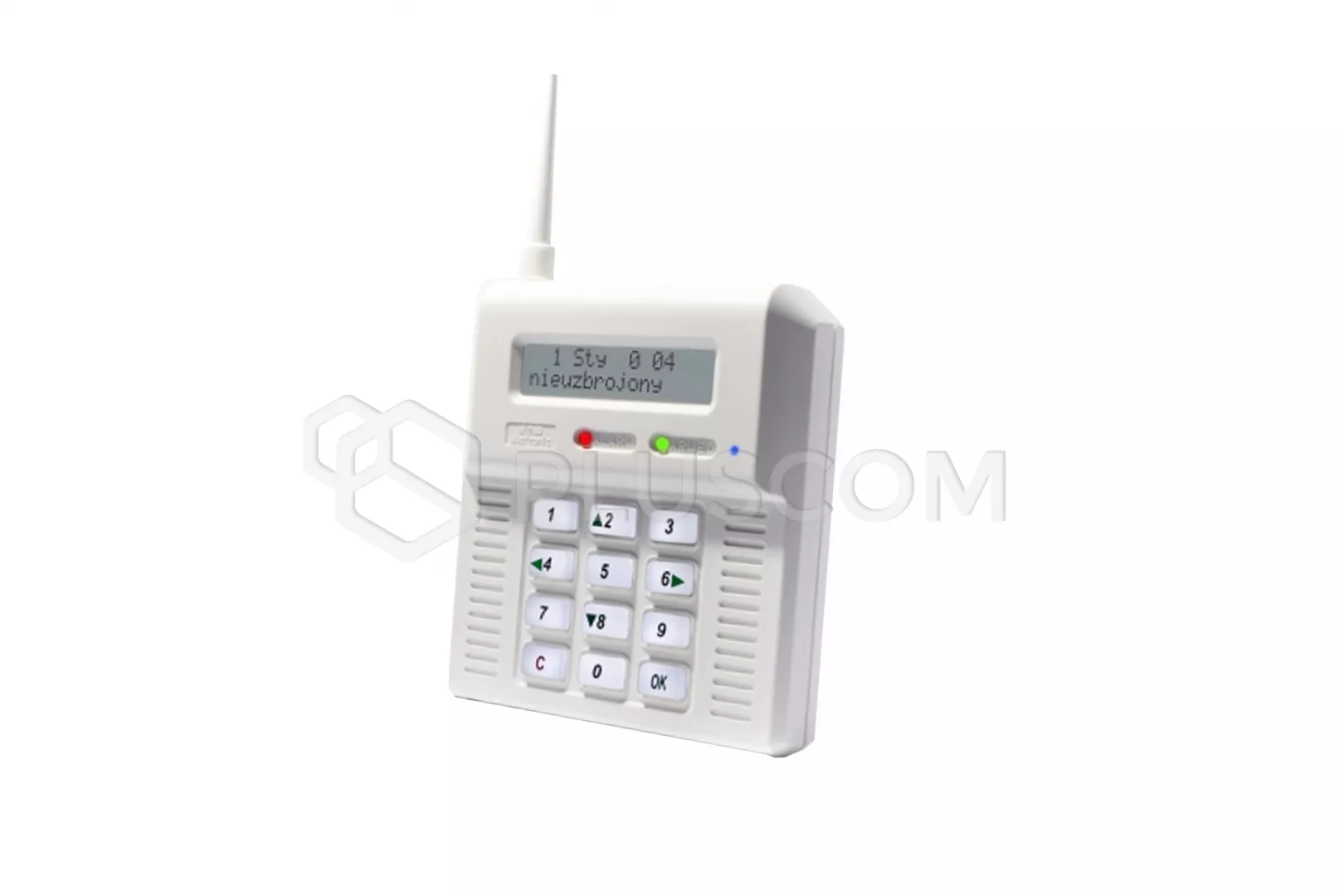

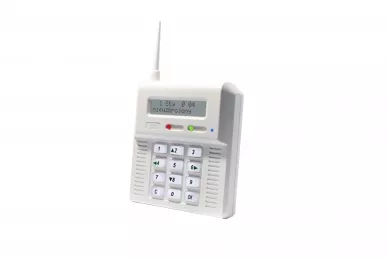

Elmes CB32 GB Wireless alarm control panel with built-in GSM module

CB32 GB Wireless alarm control panel with built-in GSM telephone module. It is intended for use in installations of burglary, attack and access control alarm systems. Works with wireless detectors and remote controls from Elmes.
It has two parametric inputs for connecting any wired detectors and three programmable outputs for connecting external acoustic and optical signaling devices.

The backlit white LCD panel and numeric keypad allow for convenient operation and programming of the control panel. The real-time clock allows you to precisely determine the time of occurrence of the 256 most recently recorded events. Low power consumption allows the control panel to operate for over 24 hours in emergency power supply mode. The control panel supports up to 16 system users and up to 32 wireless detectors, with the ability to define their names. The ability to connect to a PC simplifies the configuration of the control panel and allows you to update its software. It is possible to use the CB32GB control panel as a subsystem in wired alarms.
The control panel can be powered from the power line of a wired system, and its alarm outputs can be connected to the wired control panel. To configure the alarm system using a PC, you need a program and USB-RS cable drivers.

CB32GB FEATURES:
  • Built-in GSM module for notification and remote control via SMS and CLIP
  • Support for 32 wireless detectors - alarm lines with any names
  • Two parametric inputs for wired detectors
  • Identification of 16 users and defining their names, including 4 administrators
  • Backlit keyboard and alphanumeric display, LED indicators
  • Arming and disarming the control panel with a password from the keyboard or remotely using a remote control
  • Wide selection of alarm zone types
  • Functional modes of partial arming of the control panel (day, night)
  • Panic alarm (call for help) activated by remote control - "Anti-panic" function
  • Memory of the last 256 events, including the type of event and the time of its occurrence
  • Acoustic signaling of zone violation in the "gong" line
  • Entry delay activated by remote control or by violation of the delayed zone
  • Programmable delay time for "entry" and "exit" in the range from 0 to 99 seconds
  • Monitoring the presence of detectors and other external devices
  • Cooperation with the Elmes Elektronik WSS wireless siren
  • Three wired outputs with protection up to 1A with defined purpose (signaling alarm, system arming, power failure or other failure)
  • Programmed time on alarm outputs (0-999s)
  • Anti-sabotage protection of the OUT1 output for an external siren
  • Anti-sabotage signaling of radio band interference on line 30
  • Parametric (1 kOhm) anti-tamper input for external device protection
  • Radio signal level indicator in the form of a character line on the LCD panel
  • Possibility to configure and update the control panel software from a PC
  • Built-in internal acoustic siren 92dB under the control panel keypad
  • Supplying the control panel with a 10..20 VDC power supply and a minimum efficiency of 1200mA
  • Emergency power supply with two Li-ION batteries type 14500 (like AA) with a capacity of 600-850mAh ensuring over 24 hours of operation of the control panel after a power outage
  • Illuminated white LED panel
