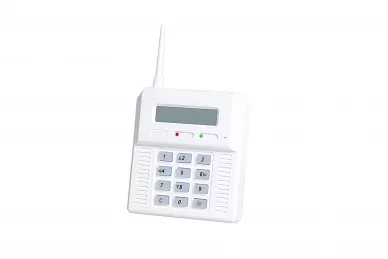

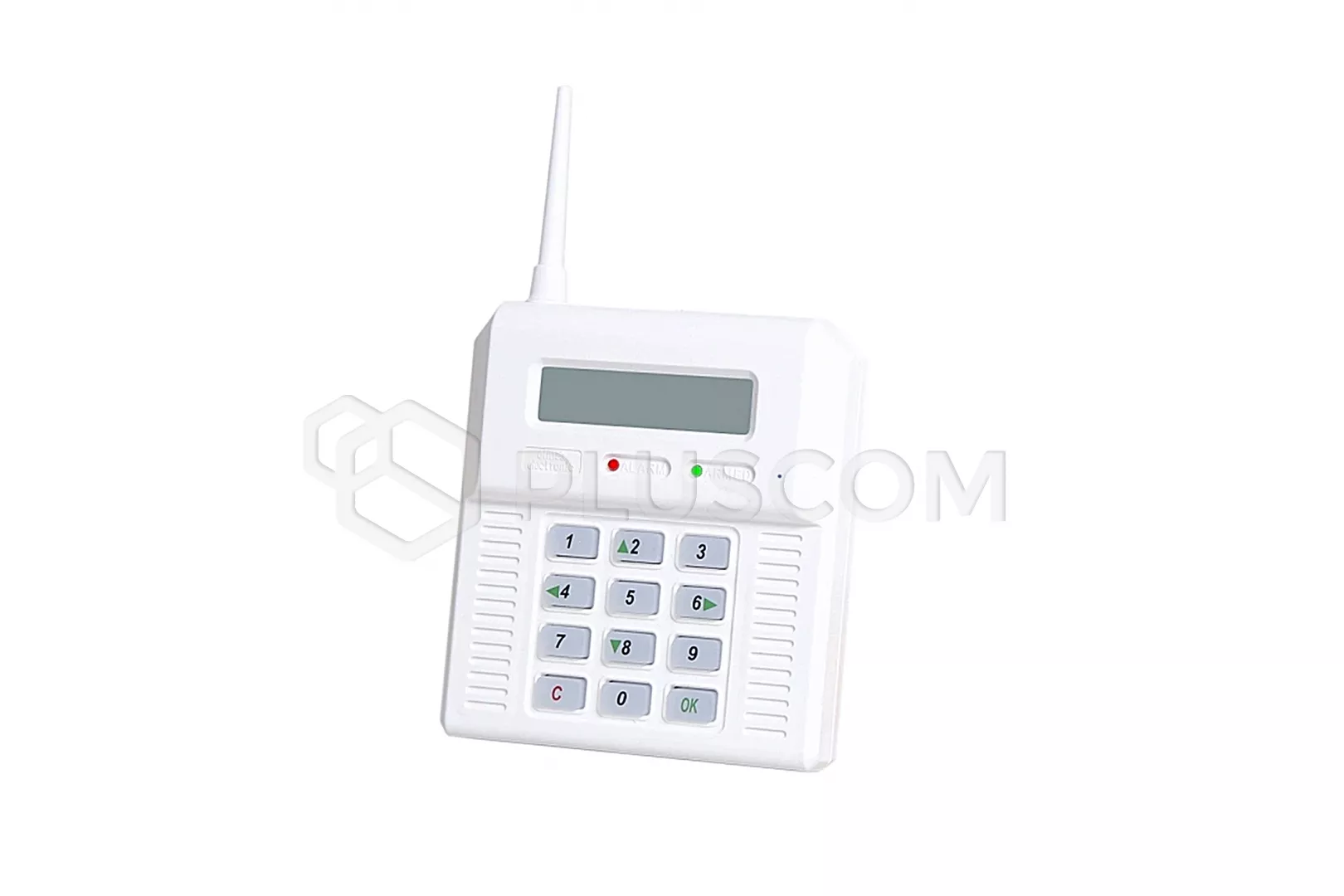

Elmes CB32 BB Wireless control panel

Elmes CB32 BB Wireless control panel

CB32 BB is intended for use in installations of burglary, attack and access control alarm systems. Works with wireless detectors and remote controls from Elmes.
It has 2 parametric inputs for connecting any wired detectors and three programmable outputs for connecting external acoustic and optical signaling devices.

The CB32 BB control panel has a backlit LCD panel and a numeric keypad (white backlight) allowing for convenient operation and programming of the control panel. The real-time clock allows you to precisely determine the time of occurrence of the 256 most recently recorded events. The control panel can support up to 16 system users and up to 32 wireless detectors (names can be defined).

It is possible to use the CB32 BB control panel as a subsystem in wired alarms. It can be powered from the power line of a wired system, and its alarm outputs can be connected to a wired control panel.

The most important features of the control panel:

• Support for 32 wireless detectors - alarm lines with any names
• Two parametric inputs for wired detectors
• Identification of 16 users and defining their names, including 4 administrators
• White backlit keyboard and white alphanumeric display, LED indicators
• Arming and disarming the control panel with a password from the keyboard or remotely using a remote control
• Wide selection of alarm zone types
• Functional modes of partial arming of the control panel (day, night)
• Panic alarm (call for help) activated by remote control - "Anti-panic" function
• Memory of the last 256 events, including the type of event and the time of its occurrence
• Acoustic signaling of zone violation in the "gong" line
• Entry delay activated by remote control or by violation of the delayed zone
• Programmable delay time for "entry" and "exit" in the range from 0 to 99 seconds
• Monitoring the presence of detectors and other external devices
• Cooperation with the Elmes Elektronik WSS wireless siren
• Three wired outputs with protection up to 1A with a defined purpose (signaling alarm / system arming / power failure / other failure)
• Programmed time on alarm outputs (0-999s)
• Anti-sabotage protection of the OUT1 output for an external siren
• Anti-sabotage signaling of radio band interference on line 30
• Parametric (1 kOhm) anti-tamper input for external device protection
• Radio signal level indicator in the form of a character line on the LCD panel
• Possibility to configure and update the control panel software from a PC
• Built-in internal acoustic siren 92dB under the control panel keypad
