DDR-240A-48 Mean Well 48V/240W/5A przetwornica DC/DC

161,21 EUR including 22.00% VAT
Product code: #22585
Manufacturer: Pulsar
  • Input voltage: DC 33.6÷67.2V
  • Output voltage: DC 48V
  • Output current: 5A
  • Rated power: 240W

Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
DDR-120A-24 Mean Well 24V/4.2A/120W DIN converter DDR-120C-24 DC/DC Converter 24V/120W/5A DDR-60L-24 DC/DC Converter 24V/60W/2.5A DDR-120C-12 DC/DC Converter for DIN rail DDR DDR 12V/120W/10A DDR-60L-12 DC/DC Converter 12V/60W/5A DDR-120B-24 DC/DC Converter 24V/120W/5A Pulsar DDR-480B-48 DDR 48V/480W/10A converter for DIN rail DDR-60G-12 DC/DC Converter 12V/60W/5A DDR-120B-12 DC/DC Converter 12V/120W/10A Pulsar DDR-60G-24 DDR 24V/60W/2.5A DC/DC converter for DIN rail

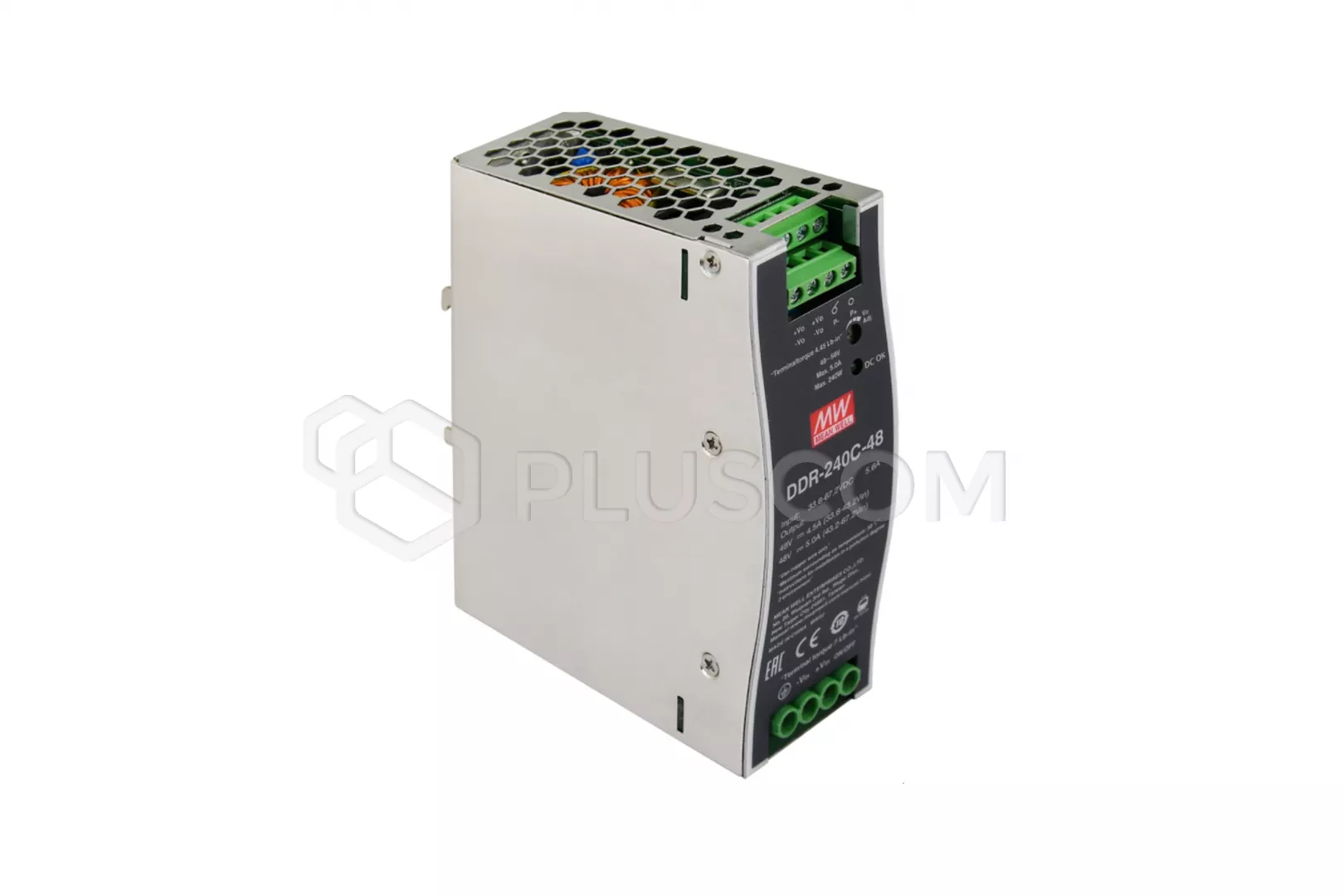

Mean well DDR-240C-48 DC/DC Converter for DIN rail DDR 48V/240W/5A


The DDR-240C-48 converter is used to power devices that require stabilized voltage of 48V DC. It is designed for mounting on a DIN rail TS-35. It has a wide input voltage range.
The device is cooled by means of free air circulation. There is a possibility of a temporary overload in the peak up to 150% and current sharing up to 960W (3+1).
DDR-240A-48 Mean Well 48V/240W/5A przetwornica DC/DC na szynę DIN

DDR-240A-48 Mean Well 48V/240W/5A przetwornica DC/DC na szynę DIN


TECHNICAL PARAMETERS:
  • input voltage range: DC 33.6-67.2V
  • output voltage: DC 48V
  • output voltage adjustment range: DC 48-56V
  • output current: 5A
  • power: 240W
  • system efficiency: 92%
  • protections:
    • short circuit
    • overload
    • over voltage
    • input reverse polarity
    • input under voltage protection
  • cooling with free air circulation
  • working temperature: -40°C ÷ 70°C
  • dimensions: 40x125.2x113.5mm
  • weight: 760g
Compliance with the EN50155 and EN45545-2 standardsVDC

Download
Datasheet 4.13 MB
CE Declaration 0.11 MB
