DDR-120C-24 DC/DC Converter 24V/120W/5A

108,98 EUR including 23.00% VAT
Product code: #19928
Manufacturer: Pulsar
  • Input voltage: DC 33.6-67.2V
  • Output voltage: DC 24V
  • Output current: 5A
  • Rated power: 120W
  • Compliance with the EN50155 and EN45545-2 standardsVDC
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar DDR-480B-48 DDR 48V/480W/10A converter for DIN rail DDR-60L-12 DC/DC Converter 12V/60W/5A DDR-120B-12 DC/DC Converter 12V/120W/10A Pulsar DDR-60G-24 DDR 24V/60W/2.5A DC/DC converter for DIN rail DDR-60G-12 DC/DC Converter 12V/60W/5A DDR-120A-12 DC/DC Converter 12V/120W/8.3A Pulsar DDR-15G-5 DDR 5V/15W/3A DC/DC converter for DIN rail DDR-30L-24 DC/DC Converter 24V/30W/1.25A Pulsar DDR-15G-24 DDR 24V/15W/0.63A DC/DC converter for DIN rail DDR-30L-12 DC/DC Converter for DIN rail DDR 12V/30W/2.5A

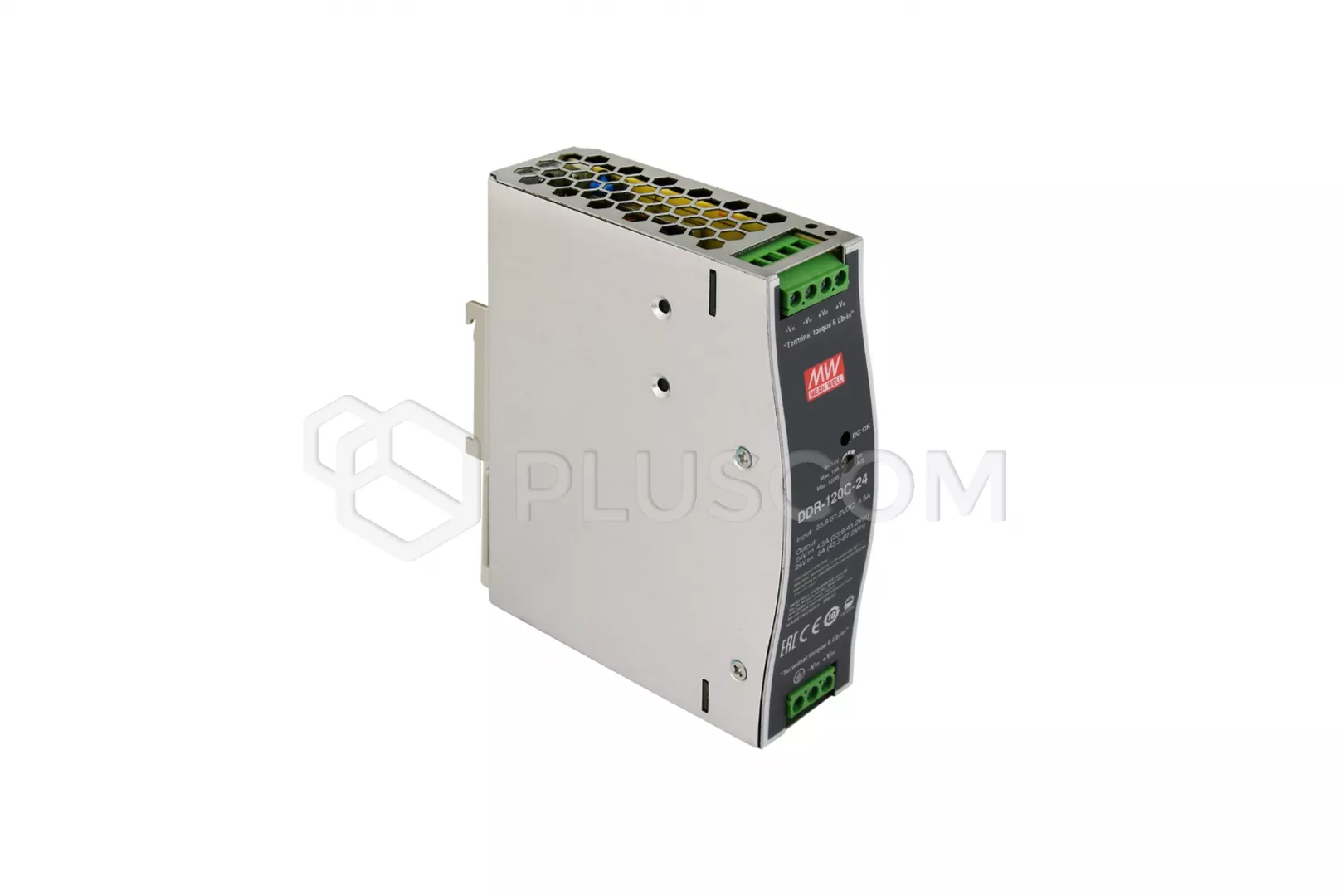

Mean well DDR-120C-24 DC/DC Converter for DIN rail DDR 24V/120W/5A


The DDR-120C-24 converter is used to power devices that require stabilized voltage of 24V DC. It is designed for mounting on a DIN rail TS-35. It has a wide input voltage range.
The device is cooled by means of free air circulation. There is a possibility of a temporary overload in the peak up to 150%.
DDR-120C-24 DC/DC Converter for DIN rail DDR 24V/120W/5A

DDR-120C-24 DC/DC Converter for DIN rail DDR 24V/120W/5A


TECHNICAL PARAMETERS:
  • input voltage range: DC 33.6-67.2V
  • output voltage: DC 24V
  • output voltage adjustment range: DC 24-28V
  • output current: 5A
  • power: 120W
  • system efficiency: 91%
  • protections:
    • short circuit
    • overload
    • over voltage
    • input reverse polarity
  • cooling with free air circulation
  • working temperature: -40°C ÷ 70°C
  • dimensions: 32x125.2x102mm
  • weight: 510g
Compliance with the EN50155 and EN45545-2 standardsVDC
Download
Datasheet 0.22 MB
CE Declaration 0.37 MB
