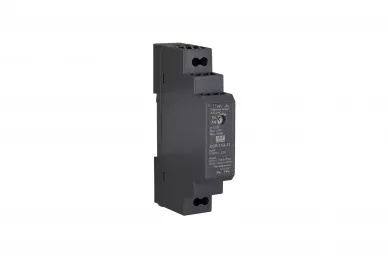

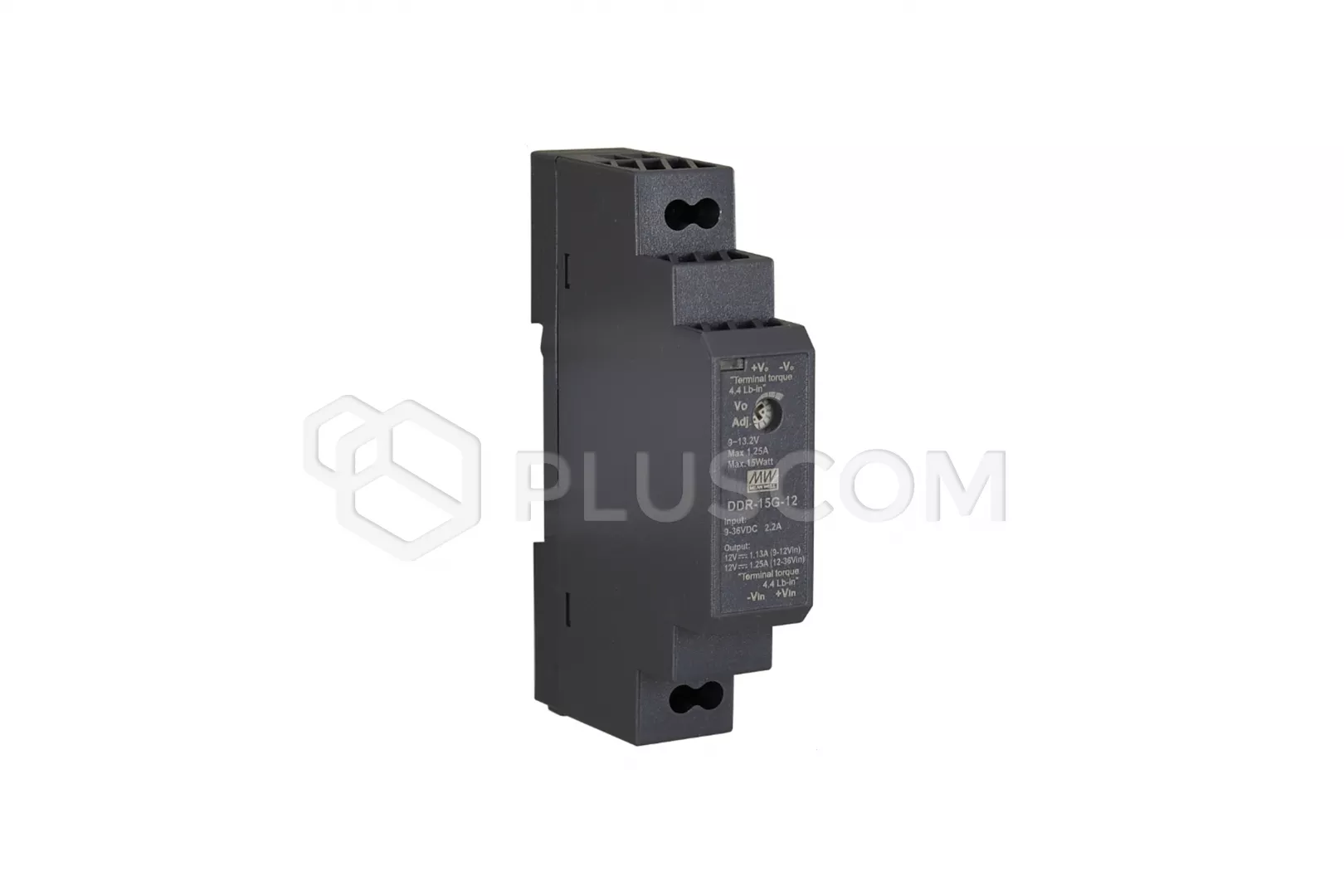

DDR-15G-12 DC/DC Converter 12V/15W/1.25A

33,63 EUR including 23.00% VAT
Product code: #19929
Manufacturer: Pulsar
  • Input voltage: DC 9-36V
  • Output voltage: DC 12V
  • Output current: 1.25A
  • Rated power: 15W
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
DDR-60G-12 DC/DC Converter 12V/60W/5A DDR-30G-12 DC/DC Converter 12V/30W/2.5A DDR-120B-12 DC/DC Converter 12V/120W/10A DDR-120A-12 DC/DC Converter 12V/120W/8.3A

Mean well DDR-15G-12 DC/DC Converter for DIN rail DDR 12V/15W/1.25A


The DDR-15G-12 converter is used to power devices that require stabilized voltage of 12V DC. It is designed for mounting on a DIN rail TS-35. It has a wide input voltage range and does not require a minimum voltage required.
DDR-15G-12 DC/DC Converter for DIN rail DDR 12V/15W/1.25A

DDR-15G-12 DC/DC Converter for DIN rail DDR 12V/15W/1.25A


TECHNICAL PARAMETERS:
  • input voltage range: DC 9-36V
  • output voltage: DC 12V
  • output voltage adjustment range: DC 9-13.2V
  • output current: 1.25A
  • power: 15W
  • system efficiency: 85%
  • protections:
    • short circuit
    • overload
    • over voltage
    • input reverse polarity
    • input under voltage protection
  • cooling with free air circulation
  • working temperature: -40°C ÷ 85°C
  • dimensions: 17.5x90x54.5mm
  • weight: 68g
Download
Datasheet 2.35 MB
CE Declaration 0.1 MB
