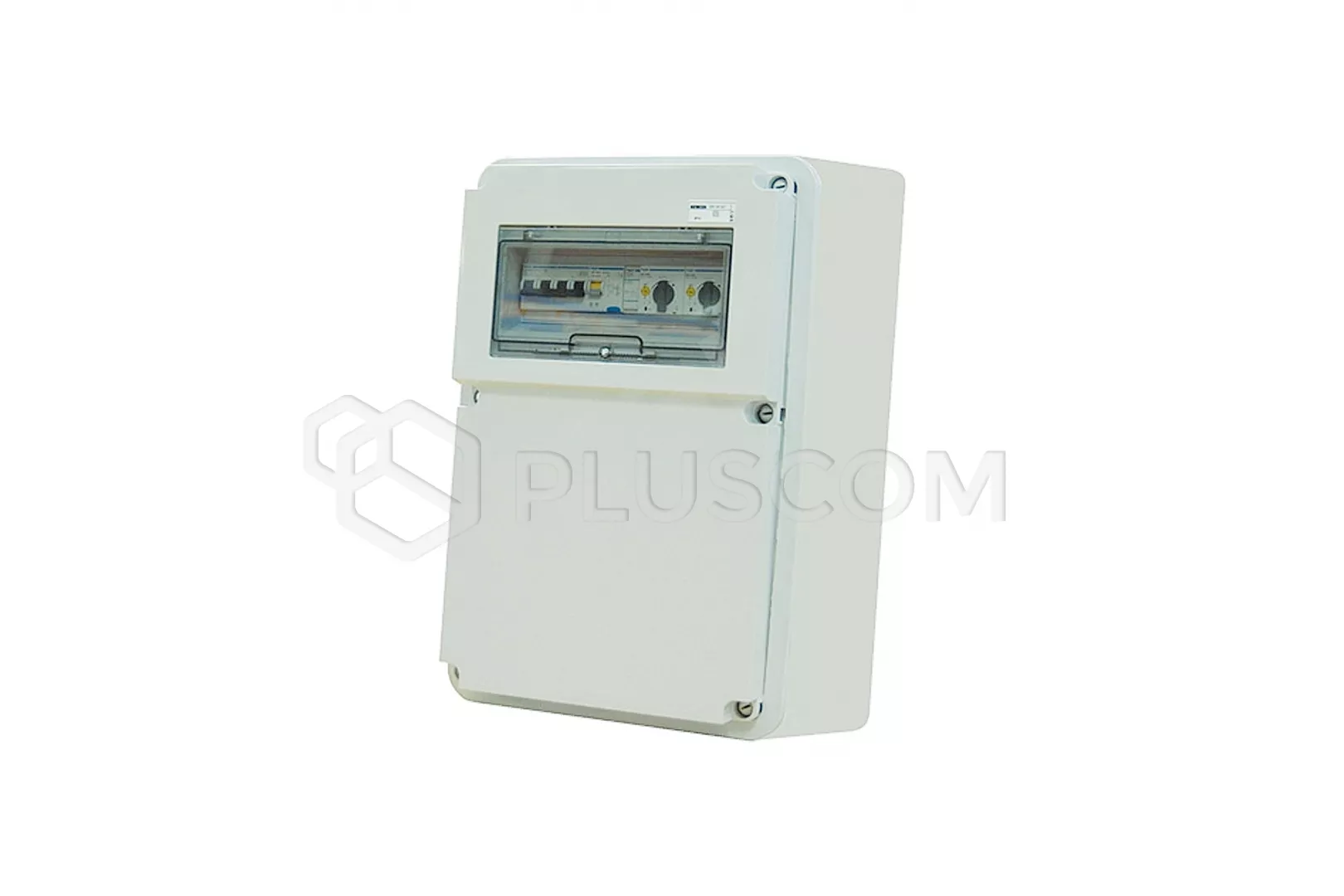

Came ZM3ES Control unit for 400V actuators

CAME ZM3ES 400V control unit for double-leaf gates with display

The ZM3ES control panel for double-leaf gates provides a number of solutions and functions tailored to the specific requirements of the user. It is equipped with two-channel radio decoder and is powered by 400V AC.
It has been designed to control SUPERFROG swing gate actuators (total motor power must not exceed 1200 W).

It enables the extension of the installation with the necessary control accessories and safety devices such as photocells, flashing light, electric lock, card frequencies, antenna or remote controls. The total power of the accessories must not exceed 30 W.

All connections are protected by quick fuses. The functions of the input and output contacts, timing adjustments and their management by the user are set and displayed on a software-controlled display.

TECHNICAL DATA

• Power supply: 400V 50/60 Hz
• Maximum power consumption: 1200 W
• Standby current consumption: 100mA
• Maximum total power of 24V accessories: 30W
• Fuses:
• • Electronic board (mains powered): 5A-F
  • Control devices (control units): 630mA-F
  • 24V accessories: 1.6 A-F
  • Electric lock: 3.15A-F
• Housing material: ABS
• Degree of protection: IP54
• Working temperature: -20 ° C ~ 55 ° C
• Case dimensions: 543 × 353 × 133 mm
