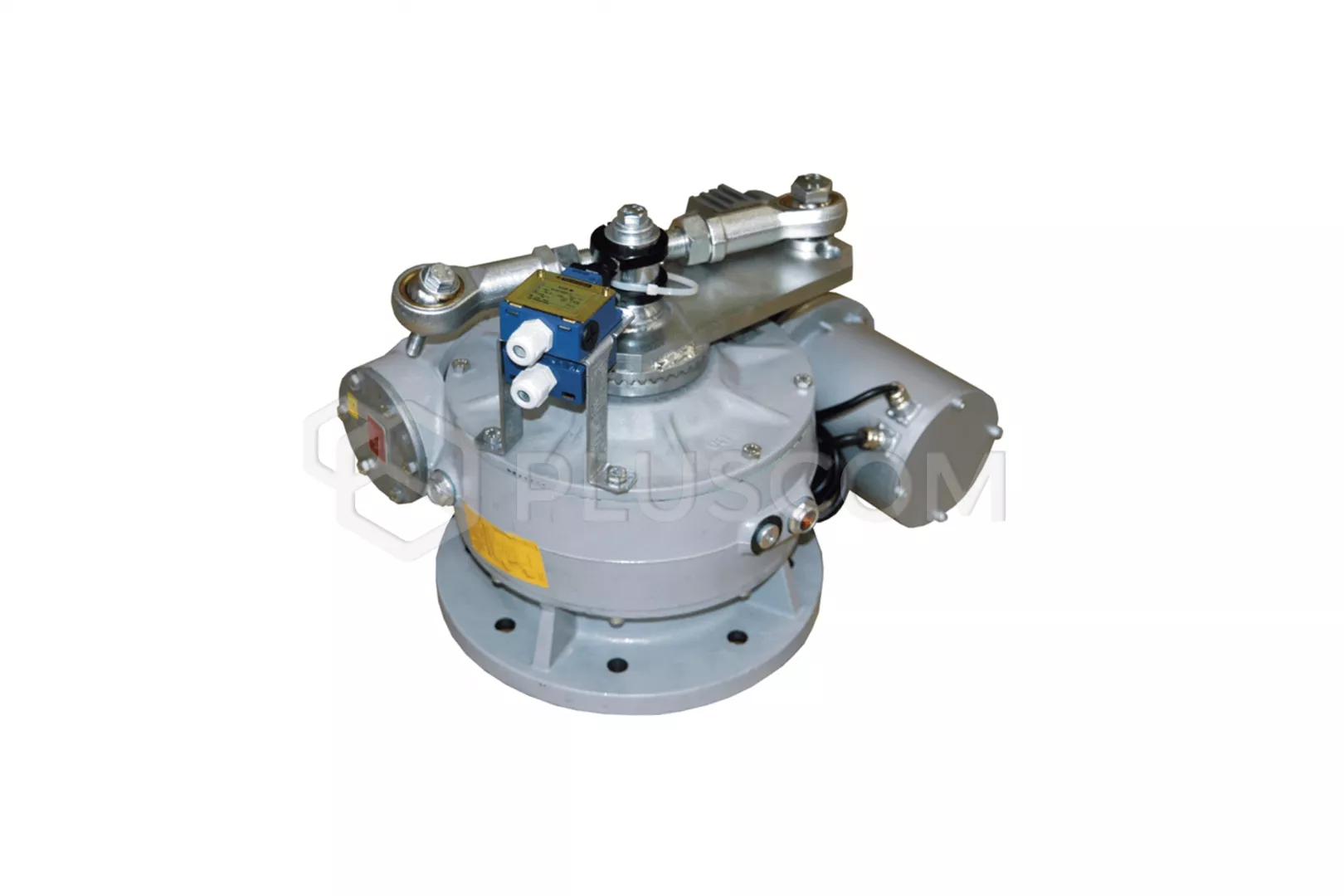

Came FROG-MD underground, right-hand actuator 230/400V

CAME FROG-MD underground, right-hand electromechanical actuator 230-400V, three-phase for gates with leaves up to 8m

GATEWAY PARAMETERS

• 8m/600kg
• 7m/700kg
• 6m/800kg
• 5m/1000kg
• 4m/1200
• < 4m/1500kg

FROG-MD is an underground electromechanical actuator, designed for automation of swing gates of unusual dimensions and weight. Super Frog is also used for large hangar doors in ports aviation.
Equipped with built-in opening and closing limit switches, it allows quick and precise adjustment of the gate leaf stop position.

Materials used to produce the actuator and increased level of protection against weather conditions, IP67 make Super Frog can work for a long time without any periodic maintenance.

Actuator features:

• right-hand underground actuator, to be hidden in the housing
• three-phase motor 230/400V A.C. - 600W
• gate opening time up to 90°: 45s
• 50% duty cycle
• increased degree of protection against atmospheric factors IP67
• equipped with built-in opening and closing limit switches
• maximum leaf weight 1500 kg (leaf < 4m)

TECHNICAL DATA

• Power supply: 230÷400 V 50/60 Hz (three-phase)
• Motor power supply: 230÷400 V 50/60 Hz (three-phase)
• Maximum current consumption: 2.5 A
• Maximum engine power: 600 W
• Thrust force: 1000 N
• Duty cycle: 50%
• Open time (up to 90°): 45s
• Protection rating: IP67
• Operating temperature (°C): -20 - +55
• Dimensions: 580x850x1000mm
• Weight: 89.36kg
