Came ZM3EP Control unit for double-leaf gates

453,05 EUR including 23.00% VAT
Product code: #26055
Manufacturer: CAME
  • Up to 2 230V actuators
  • 24V output for powering accessories
  • Stop and wicket function
  • Built-in display and diagnostics of security devices
  • Two lines of photocells and an electric lock output
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came FROG-PM6 underground actuator 230V with encoder Came FROG-PM4 underground actuator 230V with encoder

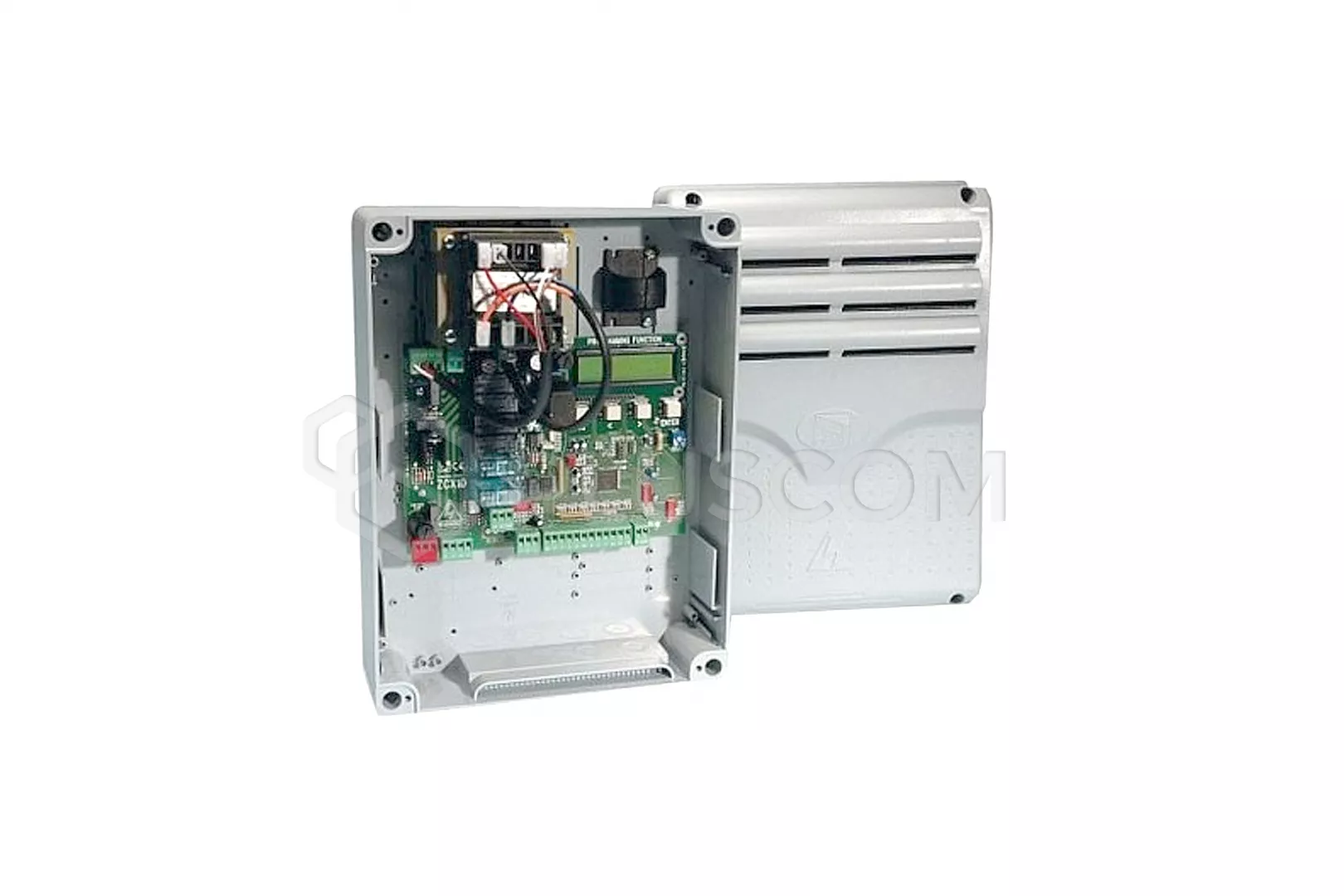

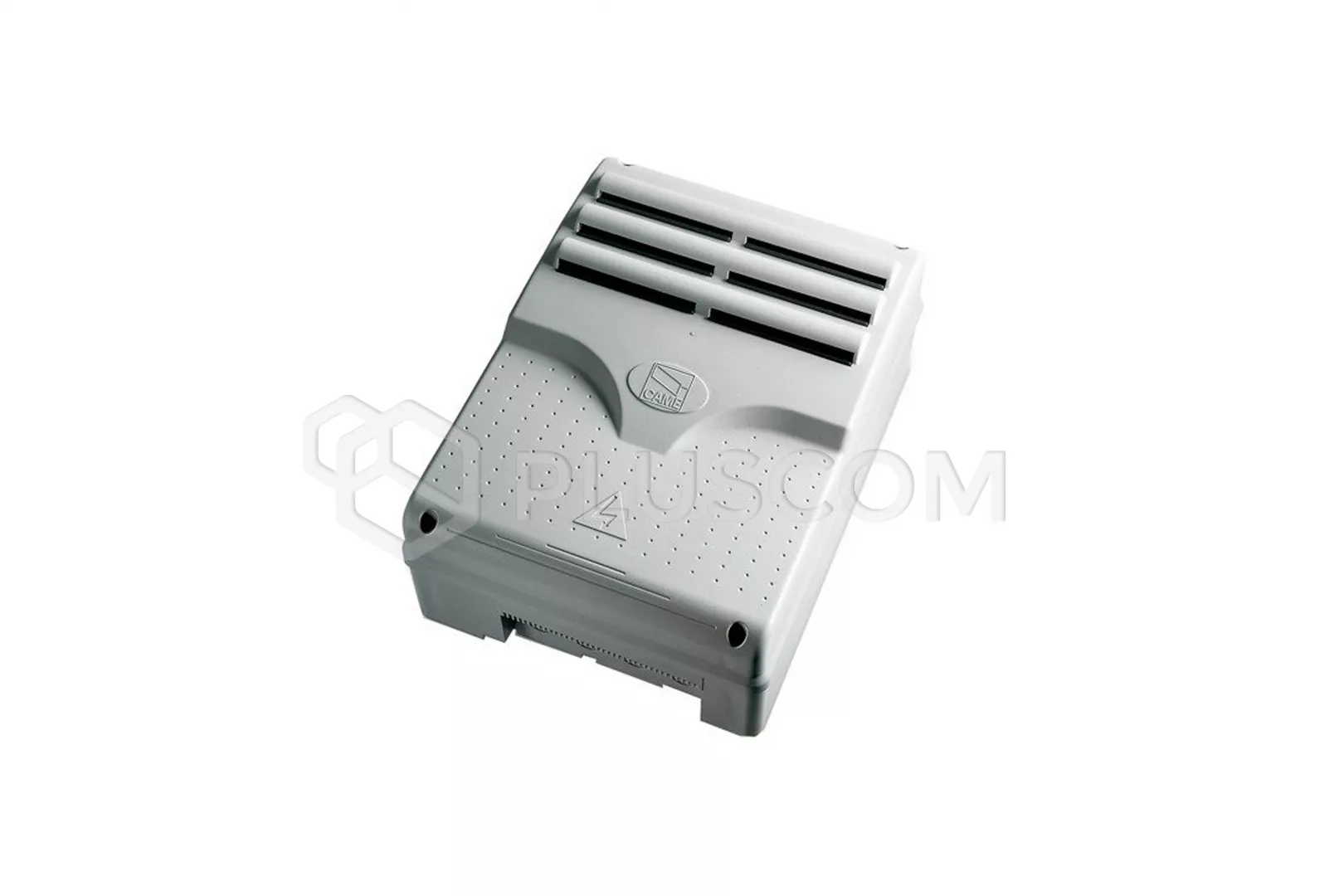

CAME ZM3EP Control unit for double-leaf gates with display and husing


The ZM3EP control panel for double-leaf gates provides a number of solutions and functions tailored to the specific requirements of the user. It is equipped with two-channel radio decoder and is powered by 230V AC.
It enables the extension of the installation with the necessary control accessories and safety devices such as photocells, flashing light, electric lock, card frequencies, antenna or remote controls. The total power of the accessories must not exceed 35 W.
The ZM3EP has an input for two lines of photocells and an output for an electric lock. All connections are protected by fuses.

CONTROL FUNCTIONS OF THE PANEL
  • opening one leaf completely
  • wicket function
  • only CLOSE button
  • button OPEN - STOP - CLOSE - STOP
  • button OPEN - CLOSE - REVERSE
  • delaying the first leaf on opening
  • late second leaf closing (adjustable)
CONTROL PANEL SECURITY
  • self-diagnosis of security devices
  • lamp pre-flashing
  • reopen while closing
  • re-close while opening
  • STOP button
  • gate stops while moving, second line of photocells active
  • detection of obstacles by safety devices at the fixed gate
TECHNICAL DATA
  • Power supply: 230 V 50/60 Hz
  • Maximum power: 750 W
  • Standby power consumption: 4.7W
  • Maximum total power of 24V accessories: 35W
  • Fuses:
    • Electronic board (mains powered): 5A-F
    • Control board: 1 A-F
    • Accessories: 1.6 A-F
    • Electric lock: 3.15A-F
  • Housing material: ABS
  • Degree of protection: IP54
  • Working temperature: -20 ° C ~ 55 ° C
  • Housing dimensions: 240 × 320 × 145 mm

Compatible with:

Came ZM3EP Control unit for double-leaf gates in the diagram Came Frog Plus Frog-PM4
Came ZM3EP Control unit for double-leaf gates in the diagram Came Frog Plus Frog-PM6
