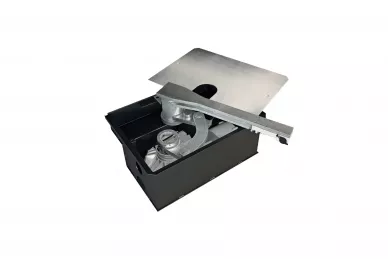

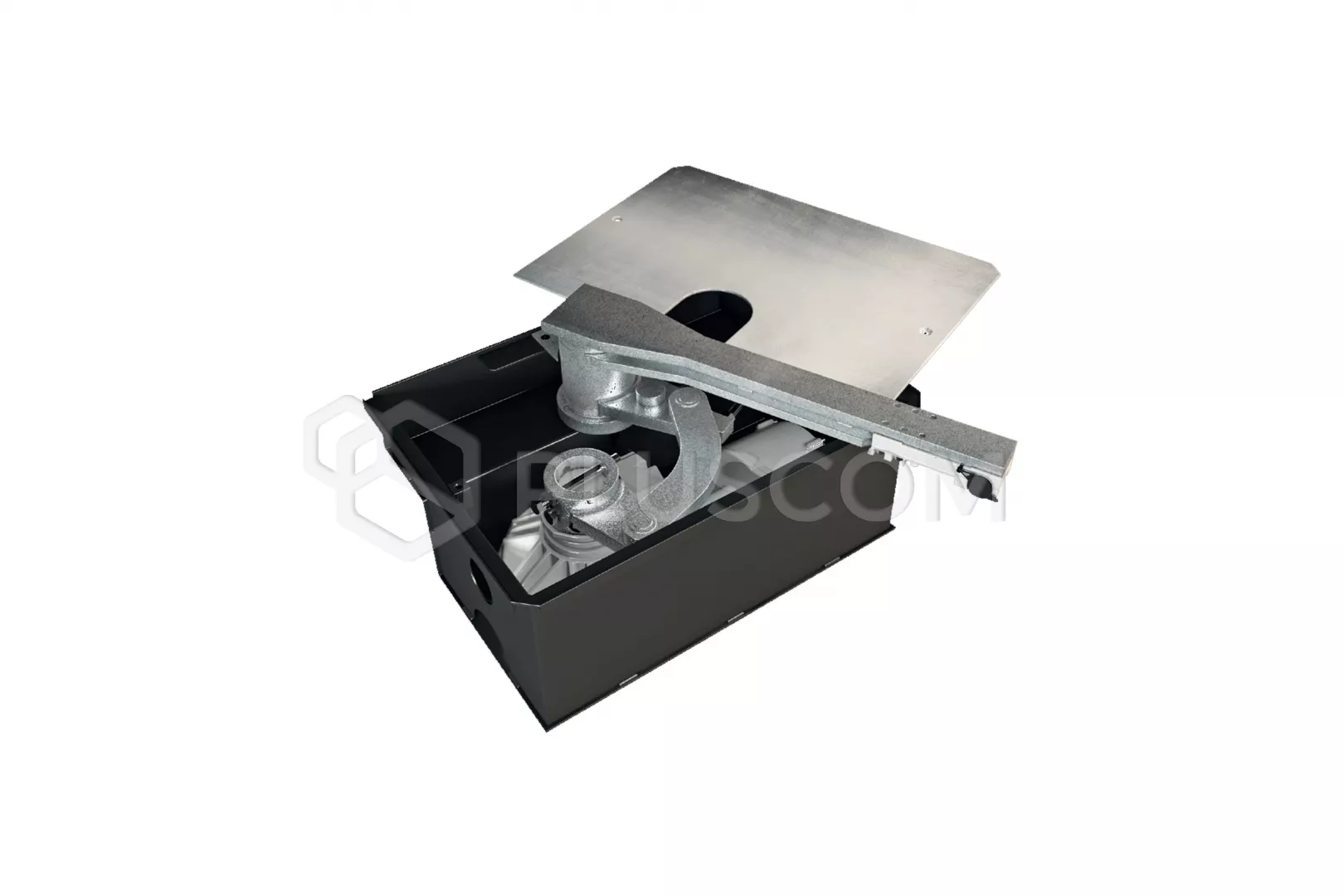

Came FROG-PM4 underground actuator 230V with encoder

3829,85 EUR including 23.00% VAT
Product code: #26051
Manufacturer: CAME
  • Max length of the gate leaf: 5.5m
  • Max weight of the gate leaf: 1100kg
  • 230V motor
  • Mechanical end stops
  • For large gates with non-standard dimensions
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came A4801 Limiter Came FROG-PC Foundation box made of steel with anti-corrosion protection Came A4366 Release system with personal key ''TOP'' Came A4365 Came key release system Came A4364 Release system, lever ''Standard'' Came LOCK82 Two-cylinder electromagnetic lock 12V Came LOCK81 One-cylinder electromagnetic lock 12V

CAME FROG-PM4 underground actuator 230V with encoder and adjustable leaf closing limiter, for gates with leaves on hinges up to 5.5 m

GATEWAY PARAMETERS
  • 5.5m/700kg
  • 4.5m/900kg
  • 3.5m/1100kg
FROG-PM4 is a 230 V irreversible underground gear motor with encoder and adjustable leaf closing stop, for gates with hinged leaves up to 5.5 m. Perfect for the automation of swing gates with non-standard dimensions, large gates, such as hangar gates or gates special ones used in industry, in barracks, in prisons and other large structures where the gate is used intensively.

Selection of materials and increased level of security against the influence of factors atmospheric, IP67 cause that Frog Plus can work for a long time without no periodic maintenance.

Actuator features:
  • self-diagnosis of safety devices
  • invisible and safe - does not disturb the aesthetics of the gate
  • display for programming and visualization of functions
  • control of leaf movement and automatic detection of obstacles by encoder
The foundation box and the actuator remained equipped with a mechanical set end stops which regulate the final opening positions and closing. Among additional accessories a limiter is also available electromechanical intended to manage stopping points wings in such a way as to avoid undesirable effects pressure exerted by wings in extreme positions of movement.

The biggest advantage of underground actuators is the aesthetics and discretion of the drive it is invisible and does not spoil the image of the gate
The second important advantage of underground drives is the possibility of installation in place where because of
  • narrow entrance
  • very narrow posts
There is no room for installing screw drives or drives with a folding arm

TECHNICAL DATA:
  • Power supply: 230V
  • Motor power supply: 230V
  • Max. power consumption: 1200 W
  • Current: 5.1 A
  • Thrust force: 800 Nm
  • Opening time (up to 90°): 30 s
  • Duty cycle: 50%
  • Protection level: IP 67
  • Motor thermal protection: 150 °C
  • Operating temperature: -20 °C to +55 °C
  • Dimensions: 586 x 644 x 416 mm
