Came VER06DES ATOMO Automation kit for garage doors with a door area of ​​up to 9m2

217,96 EUR including 23.00% VAT
Product code: #26455
Manufacturer: CAME
  • Gate area: up to 9m2
  • Included: actuator, frequency card, 4-channel remote control
  • Engine power supply: 230 V
  • Engine power supply: 24 V
  • Thrust force: 600 N
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came PL0323 Chain rail, combined, total length 3.3 m Came PL0243 Key operated emergency release mounted on the gate Came V122 Transmission arm for sectional doors Came V121 External actuator release with 3 m cable Came V06007 Kevlar rail with strap 4.02m Came V06006 Kevlar rail with strap 3.52m Came V06005 Kevlar rail with strap 3.02 m Came V06003 Chain rail 4.02 m Came V06002 Chain rail 3.52 m Came V06001 Chain rail 3.02 m

CAME VER06DES ATOMO Automation kit for garage doors with a gate area of ​​up to 9m2

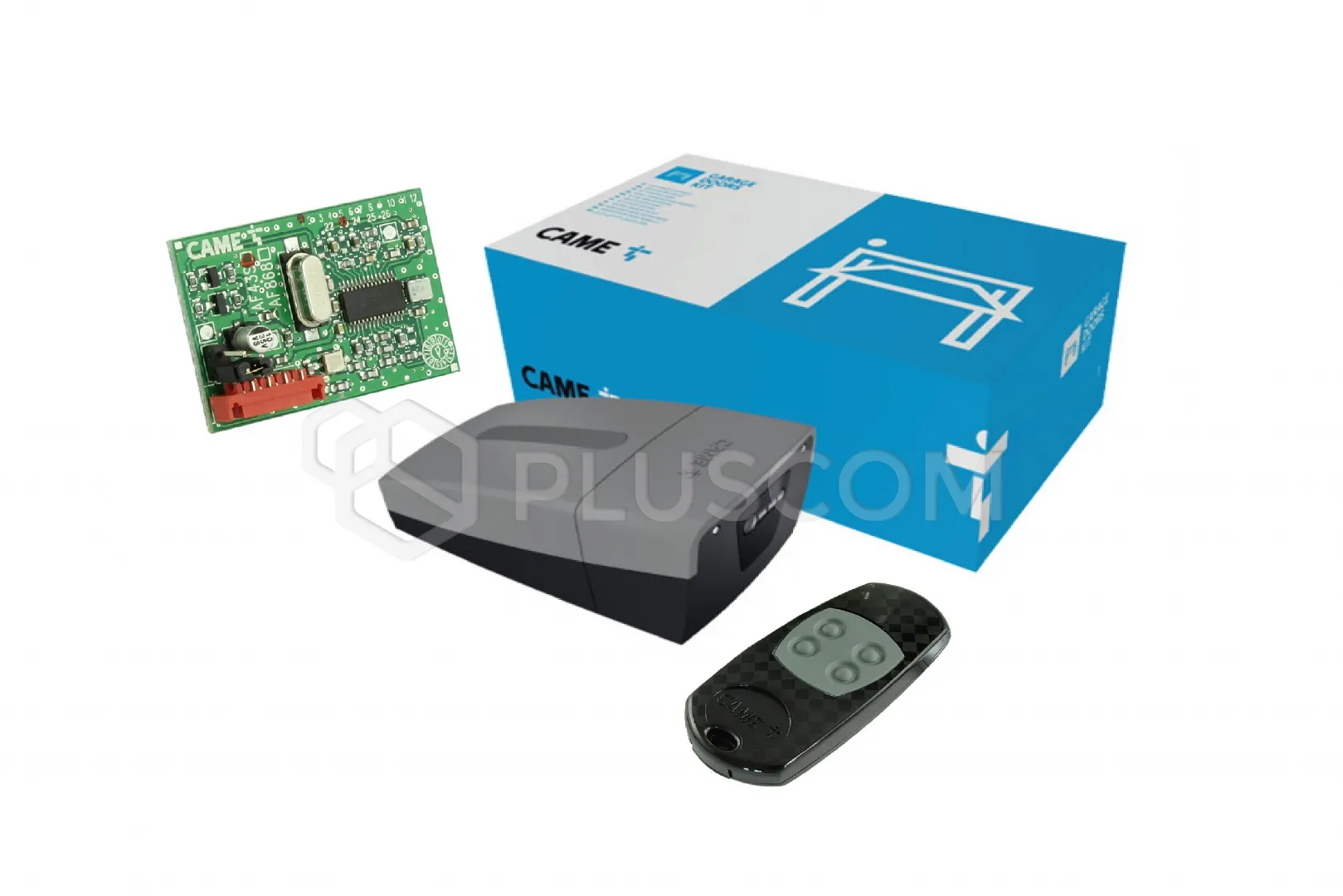

The kit includes:

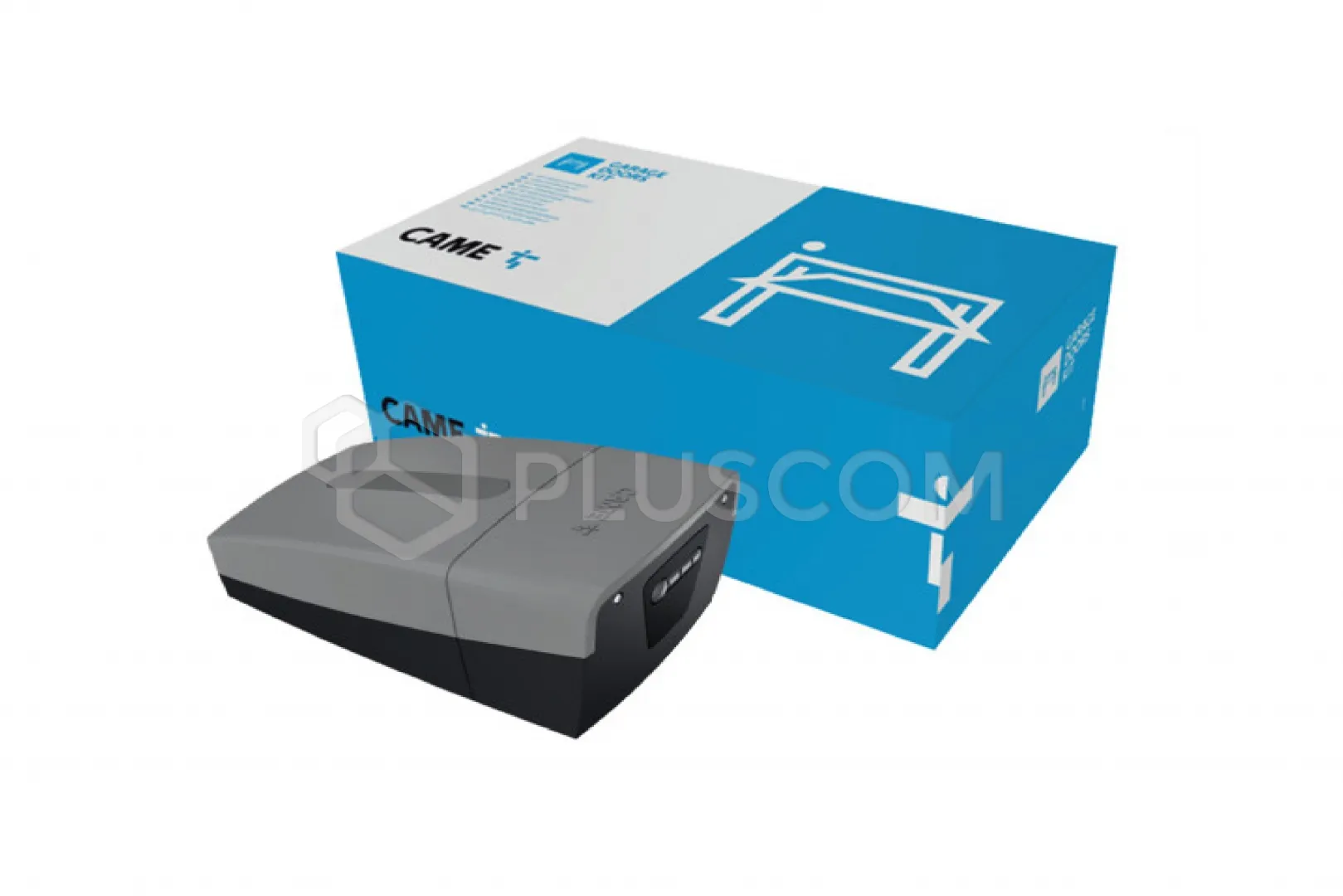

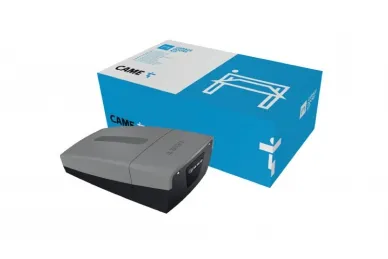

  • VER06DES actuator

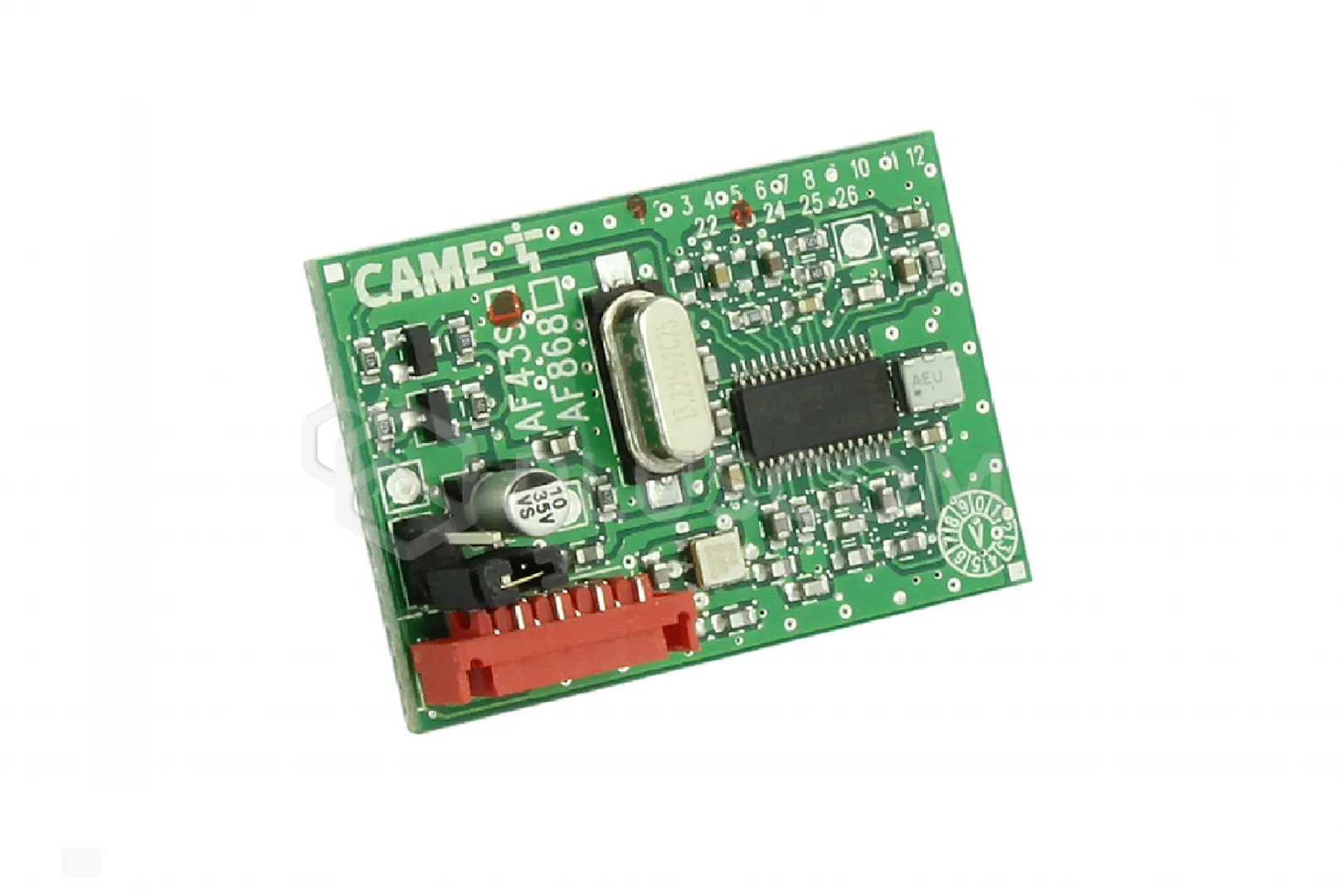

  • AF43S Frequency card

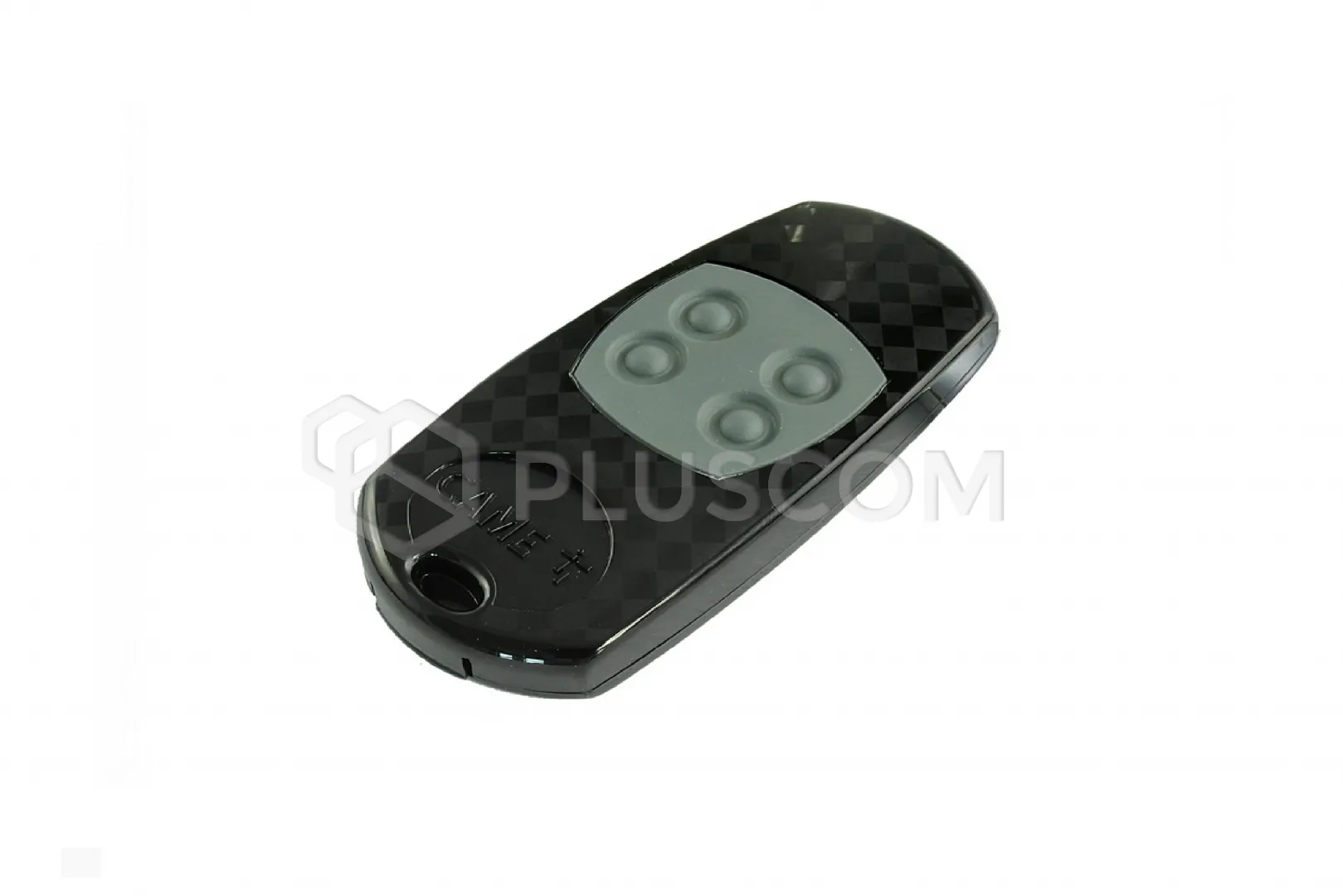

  • AT04EV Four-channel rolling code remote control
CAME VER06DES ATOMO Automation kit for garage doors with a door area of ​​up to 9m2

CAME VER06DES ATOMO Automation kit for garage doors with a door area of ​​up to 9m2
The kit does not include a transfer rail

VER06DES CAME kit with a remote control for garage doors with a gate area of ​​up to 9m2.

Electromechanical actuator with a pulling force of 600 N dedicated to sectional and tilting garage doors in residential buildings. Depending on the type and height of the door, the appropriate type of guide should be purchased. We offer chain and belt guides.

Inside the actuator housing there is space for mounting a card and emergency batteries that power the engine during power outages.

FEATURES:

  • Ready-to-use set, a simple way to automate the door
  • Simple installation of automation to the drive rail
  • Reliable and safe 24 V DC power supply system
  • Possibility to connect accessories to increase safety or additional control
  • Transmission guides (chain and belt) cooperate with the drive. They provide reliable and quiet operation
  • Additionally, there is an external release system mounted via a cable directly to the gate handle
  • All models are tested in accordance with the parameters of applicable regulations
  • Thanks to the included variable code decoder, it is possible to load up to 250 different users
  • Programming and using the functions is done via a display integrated with the electronic board
  • The drive regulates the force automatically

Ideal solution for sectional and swing gates for use in residential buildings.

Technical data:

  • Power supply: 230 V
  • Motor power supply: 24 V
  • Power consumption in Stand-By mode: 4.5 W
  • Accessory power: 20 W
  • Feed speed: 6.5 m/min
  • Thrust force: 600 N
  • Number of cycles per hour: 10
  • Operating temperature range: -20°C +55°C
  • Protection class: IP20
  • Weight 4.9 kg
