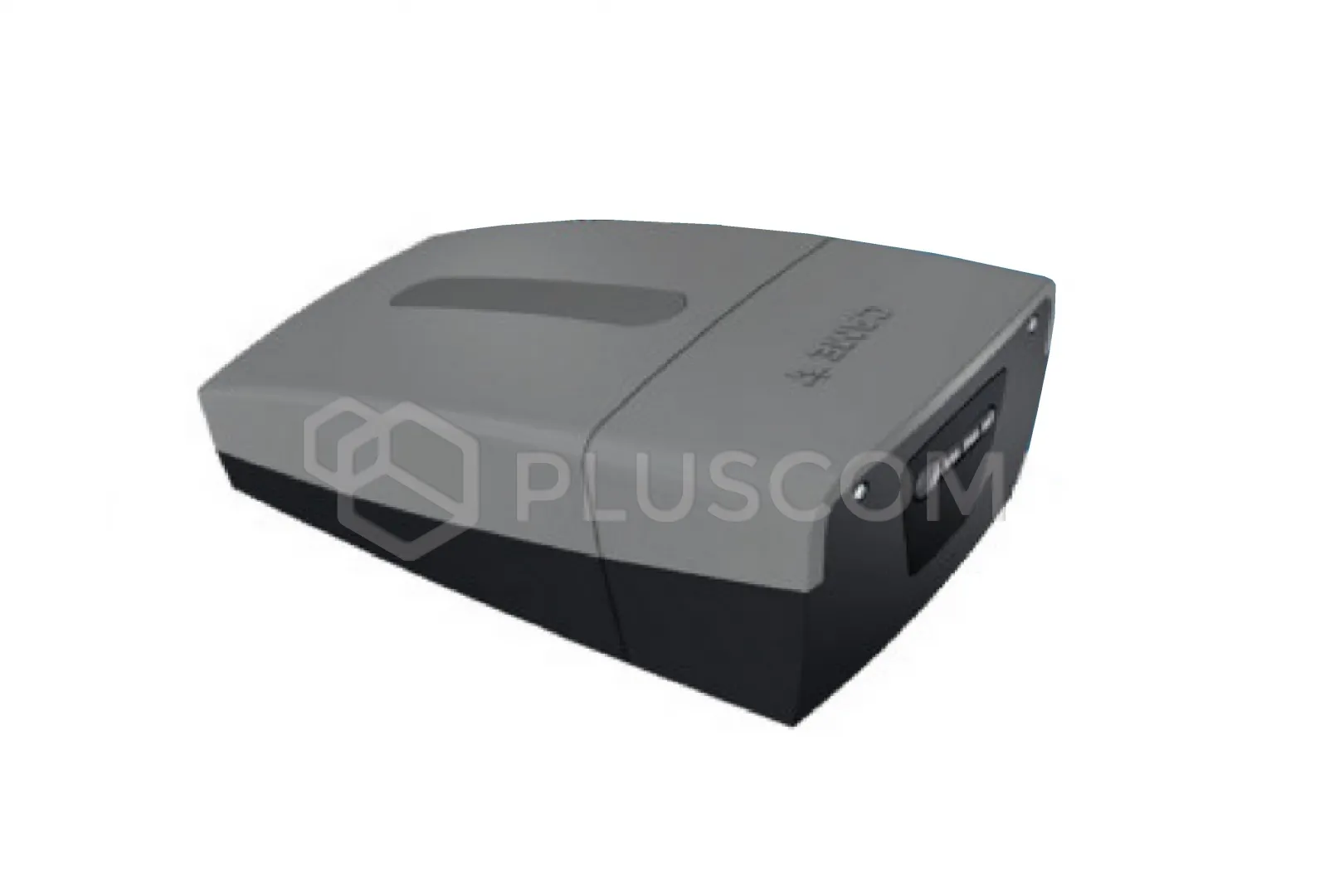

CAME 801MV-0050 VER06DES 24V Actuator with control unit, max. surface area 9m2

CAME 801MV-0050 VER06DES 24V Actuator with control unit, max. surface area 9m2

Electromechanical actuator with a pulling force of 600 N, designed for sectional and overhead garage doors in residential buildings. Depending on the type and height of the door, the appropriate guide must be purchased separately. We offer chain and belt guides.

Inside the actuator housing, there is space for mounting a card and emergency batteries to power the motor during power outages.

FEATURES:

• Easy installation of the automation to the drive rail
• Reliable and safe 24 V DC power supply system
• Accessibility to connect accessories for increased safety or additional control
• Transmission guides (chain and belt) are compatible with the drive. They ensure reliable and quiet operation.
• Additionally, there is an external release system mounted via a cable directly to the door handle.
• All models are tested in accordance with applicable regulations.
• Thanks to the included rolling code decoder, it is possible to program up to 250 different users.
• Programming and using functions is performed via a display integrated with the electronic board.
• The drive automatically regulates the force.
  Ideal solution for sectional and up-and-over doors for use in residential buildings.

  Technical Specifications:

  • Power Supply: 230 V
  • Motor Power Supply: 24 V
  • Power Consumption in Stand-By Mode: 4.5 W
  • Accessory Power: 20 W
  • Traverse Speed: 6.5 m/min
  • Thrust Force: 600 N
  • Number of Cycles per Hour: 10
  • Operating Temperature Range: -20°C to +55°C
  • Protection Rating: IP20
  • Weight: 4.9 kg
