Came PLU0050 SET HG 600 SL Set for garage doors up to 10 m²

256,05 EUR including 19.00% VAT
Product code: #26429
Manufacturer: CAME
  • maximum thrust: 600N
  • surface of the gate: up to 10m²
  • max. gate height 2.4m
  • two-piece chain rail 3.3m
  • SP4 rolling code remote control included
Delivery and tax:
Germany VAT: 19.00% change
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came PL0328 2-channel wall switch Came PL 0238 HA1 Release for HG600 and HG 1000 kit Came 119PLR046 Additional rail mounting bracket for HG600 / HG1000 drives

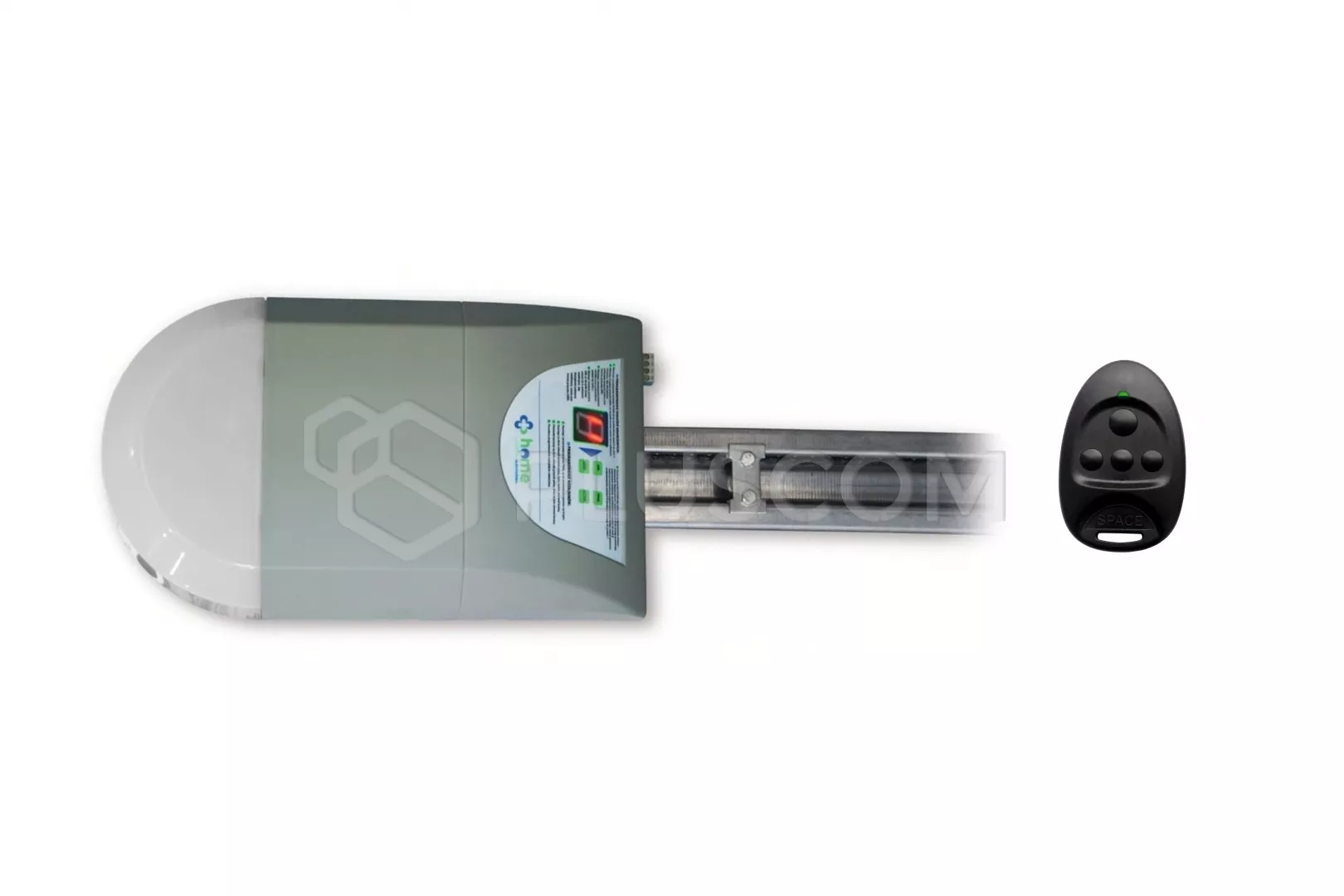

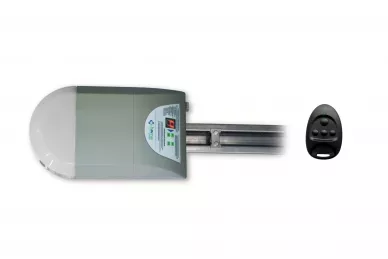

Came PLU0050 SET HG 600 SL Kit for automating garage doors with up to 10 m²


SET COMPOSITION:
CAME PLU0050 SET HG 600 SL Set for garage doors up to 10 m²

CAME PLU0050 SET HG 600 SL Set for garage doors up to 10 m²

Easy to use and at the same time very functional gate actuator garage. A pulling force of 600 N is sufficient to operate the door hinged or segmented with an area of up to 10 m².
Maximum gate height 2.4m
The set is available only with SPACE radio.

The motor is equipped with a lamp illuminating the interior of the garage and the central unit control. It has a self-locking gear, the body is made of cast iron die-cast aluminum and the housing is made of ABS plastic.

The control panel has the following functions:
  • control "Step by step" (open-stop-close)
  • automatic closing
  • adjusting the overload sensitivity
  • adjustment of auto-close time
Technical specification:
  • main power supply for the entire drive: 230 V, 50 (60) Hz
  • motor power: 24V
  • motor power: 100W
  • opening speed: 5.77 m/min.
  • utility lighting: 25W 24V.
  • shaft torque: 7 Nm
  • maximum thrust: 600 N
  • programming: panel with digital display
  • ingress protection: IP22
  • maximum gate height: 2.4m (3.3m rail)
  • operating temperature range: -20°C ~ +50°C
  • weight: 5.8kg
