Came PLU0041 SET HG 1000 LONG Set for garage doors up to 14 m²

277,95 EUR including 22.00% VAT
Product code: #26433
Manufacturer: CAME
  • maximum thrust: 1000N
  • surface of the gate: up to 14m²
  • max. gate height 3m
  • chain rail 3.9m
  • SP4 rolling code remote control included
Delivery and tax:
Italy VAT: 22.00% change
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came PL 0238 HA1 Release for HG600 and HG 1000 kit Came 119PLR046 Additional rail mounting bracket for HG600 / HG1000 drives Came PL0328 2-channel wall switch

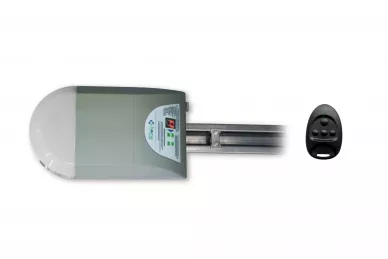

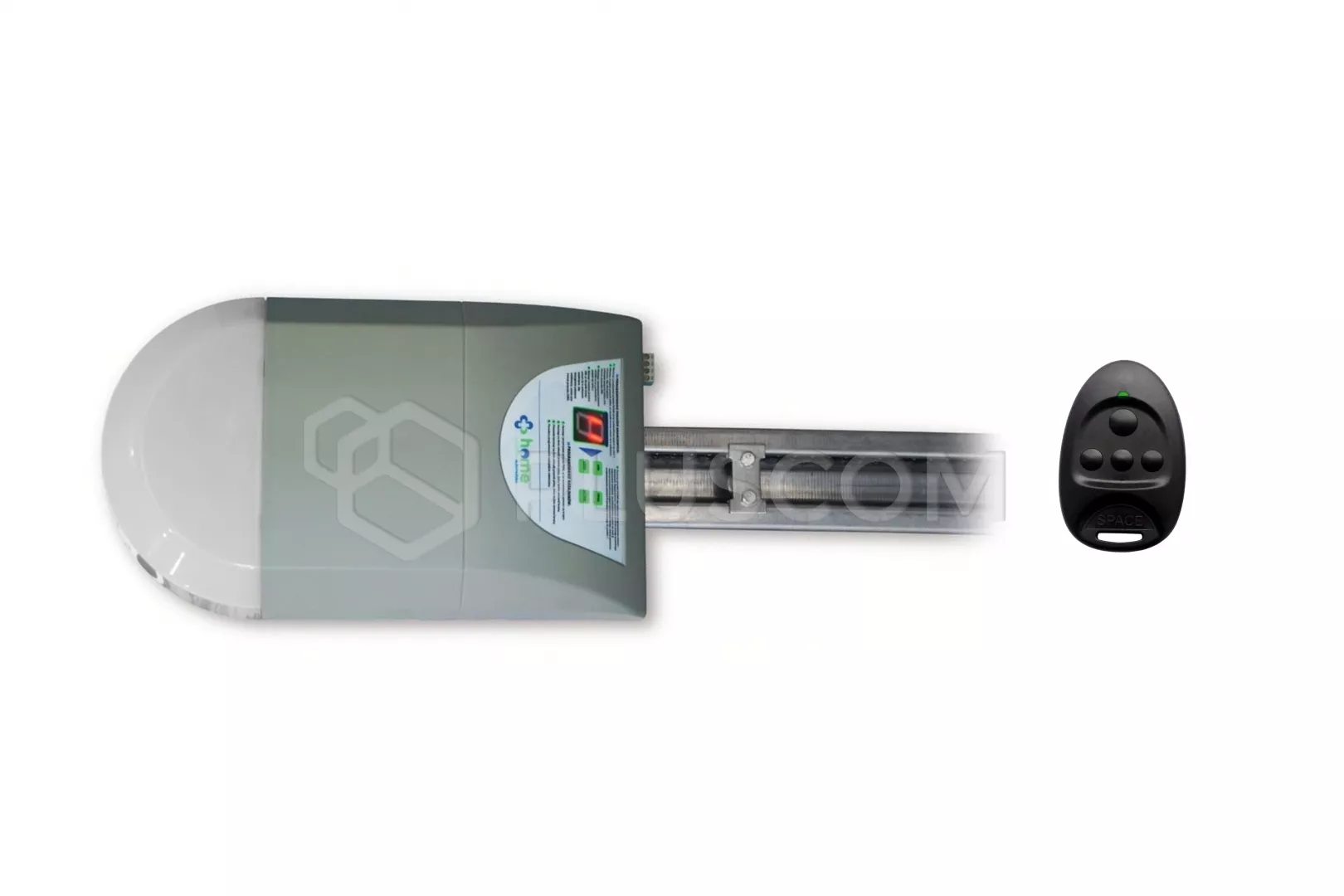

Came PLU0041 SET HG 1000 LONG Kit for automating garage doors with up to 14 m²


SET COMPOSITION:
CAME PLU0041 SET HG 1000 LONG Set for garage doors up to 14 m²

CAME PLU0041 SET HG 1000 LONG Set for garage doors up to 14 m²

Easy to use and at the same time very functional gate actuator garage. A pulling force of 1000 N is sufficient to operate the gate hinged or segmented with an area of up to 14 m².
Maximum gate height 3m
The set is available only with SPACE radio.

The motor is equipped with a lamp illuminating the interior of the garage and the central unit control. It has a self-locking gear, the body is made of cast iron die-cast aluminum and the housing is made of ABS plastic.

The PBX has, among others, the following functions:
  • control "Step by step" (open-stop-close)
  • automatic closing
  • adjusting the overload sensitivity
  • adjustment of auto-close time
Technical specification:
  • main power supply for the entire drive: 230 V, 50 (60) Hz
  • motor power: 24V
  • stand-by power consumption: 3.5W
  • opening speed: 5.77 m/min.
  • utility lighting: 25W 24V.
  • maximum thrust: 1000 N
  • programming: panel with digital display
  • ingress protection: IP22
  • maximum gate height: 3m (3.9m rail)
  • operating temperature range: -20°C ~ +50°C
  • weight: 5.8kg
