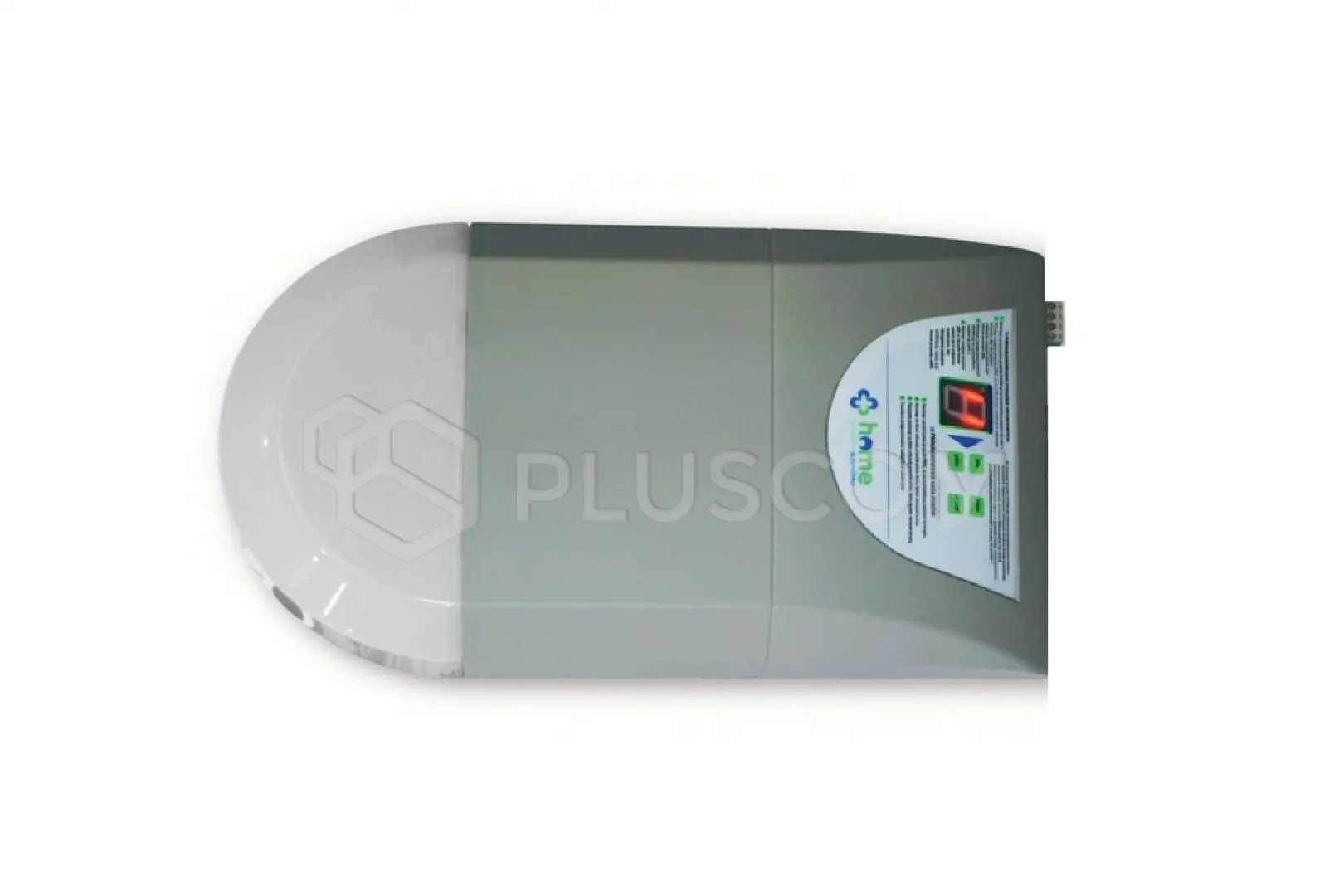

Came HG1000 Operator for garage doors up to 14 m²

Product code: #43871
Manufacturer: CAME
  • maximum thrust: 1000N
  • surface of the gate: up to 14m²
  • max. gate height 2.4m
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Came HG1000 Operator for garage doors up to 14 m²


An easy-to-use yet highly functional garage door operator. Its 1000 N pulling force is sufficient to operate a tilt-and-turn or sectional door up to 14 m².
Maximum door height: 2.4 m
The set is available only with the SPACE radio system.

The operator is equipped with a lamp illuminating the garage interior and a control unit. It has a self-locking gear, a die-cast aluminum body, and an ABS housing.

The control unit features the following functions, among others:
  • Step-by-step control (open-stop-close)
  • Automatic closing
  • Adjustable overload sensitivity
  • Adjustable automatic closing time
  • Technical specifications:
    • Main power supply for the entire drive: 230 V, 50 (60) Hz
    • Motor power supply: 24 V
    • Power consumption in stand-by mode: 3.5 W
    • Opening speed: 5.77 m/min.
    • Utility lighting: 25 W 24 V
    • Maximum thrust force: 1000 N
    • Programming: panel with digital display
    • Protection rating: IP22
    • Maximum height Gate: 2.4m (rail 3.3m)
    • Operating temperature range: -20°C ~ +50°C
    • Weight: 5.8kg
