CAME LT4 - MCBF 1.5M CYCLES Kit with FLAT arm
4m

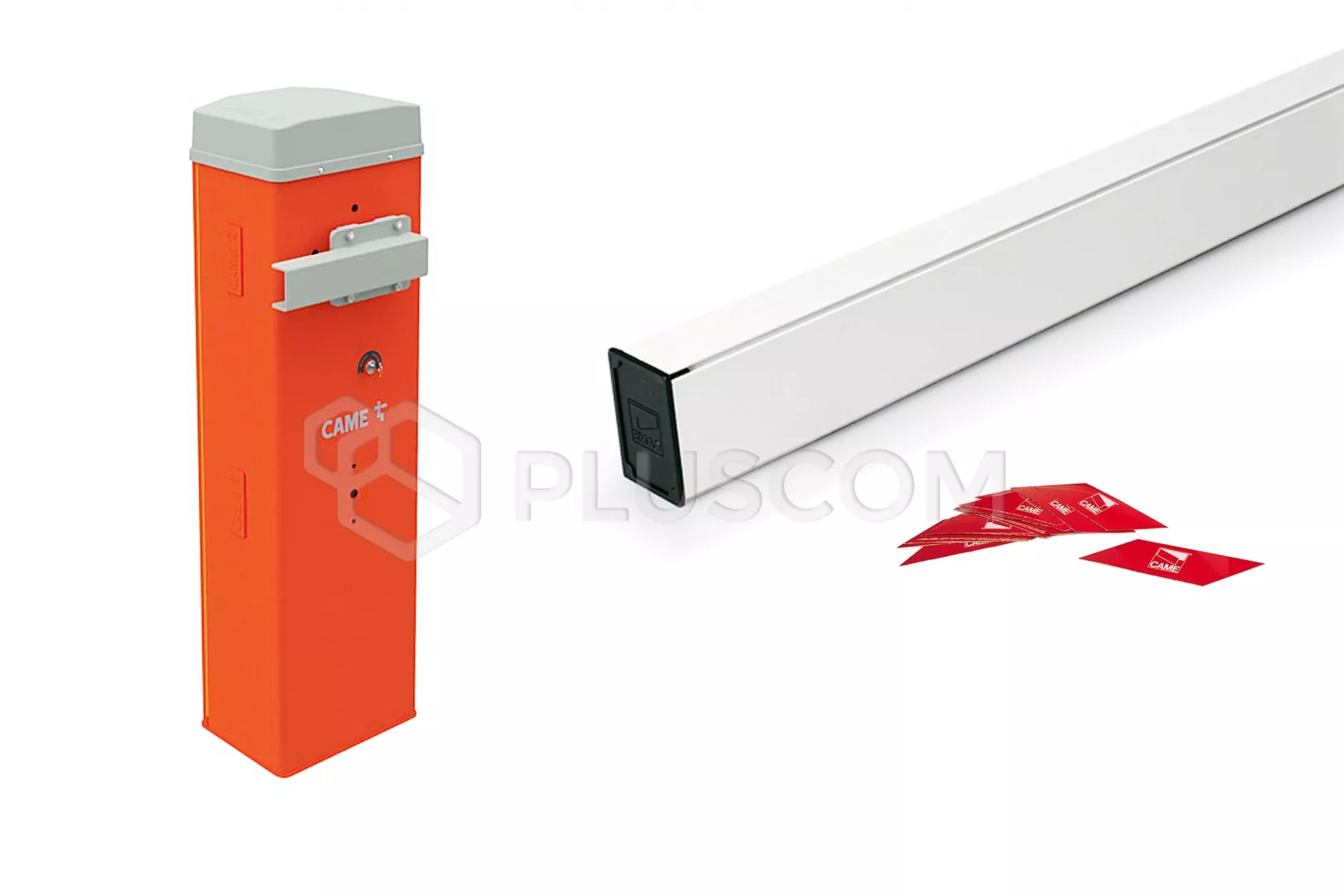

KIT INCLUDES
|
CAME LT4 - MCBF 1.5MLN CYCLES Kit with 4m arm
|
The electromechanical barrier of the LT4 series is perfect as an access
control element it will work in all guarded car parks, at universities,
offices, housing communities and other industrial facilities.
The central unit is equipped with a 24 V DC self-locking gear motor
with encoder, housing made of galvanized steel painted orange (RAL 2004),
compensating spring and mounting accessories.
Tested for heavy duty - up to 300 cycles per hour and MCBF on 1.5 million
cycles. Modern 24 V DC gearmotor equipped with an encoder enables advanced arm
speed control. Thanks to this innovative function, the movement of the arm is
smooth and constant both during opening and closing closing.
The new ZL92-C control unit is located directly under the cover housing. Thanks
to this, configuration work can be carried out in a convenient way standing
position. In addition, the control unit is protected by a z-housing ABS.
Practical balancing system that allows the use of a single spring, makes it no
longer necessary to have special springs for different types arm length.
The G0401 flat frame with dimensions of 60 × 40 × 4200 mm is
made of aluminum, which guarantees resistance to mechanical damage and wear and
smooth operation.
The arm can be equipped with additional accessories such as warning stickers,
curtains and supports (fixed or movable) - they play a very important role in
absorbing the overload when stopping the arm.
ADVANTAGES OF GLT40AOS
- New encoder-controlled gear motor for smooth operation
- balance system with one type of spring
- two types of arms to choose from: rectangular G0401 and round G0402
- possibility of installing LED lighting under protective rubbers
(G0401)
- emergency power supply with batteries mounted in the barrier housing
- CAME KEY socket
- possibility of direct connection of CAME readers and keypads
- protection inputs supporting 8k2 resistive edges
- output for a lamp operating in semaphore mode (KLT lamp)
CAME GLT40AOS Road barrier up to 4m
TECHNICAL DATA:
- Power: 220÷230V 50/60Hz
- Motor power: 24V DC
- Maximum current draw: 0.8A
- Power: 190W
- Standby power consumption: 7W
- Torque: 140Nm
- Opening time to 90°: 2÷6 s
- Cycles/hour: 300
- Cycles/day: 5400
- Average life: (Cycles) 1,500,000
- IP protection level: 54
- Insulation class: I
- Operating temperature:
-
- -20+55°C
- -40+55°C (with 803XA-0630 heater)
- Weight: 56 kg
