Came GLT40AOS Road barrier up to 4m

1515,84 EUR including 20.00% VAT
Product code: #30782
Manufacturer: CAME
  • Bar length up to 4m
  • Minimum opening time: 2s
  • Intensive work - up to 300 cycles per hour
  • Arm speed adjustment
  • Housing made of galvanized steel, painted, orange (RAL 2004)
Delivery and tax:
France metropolitan VAT: 20.00% change
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came 803XA-0300 Set of additional contacts for GT4 Came 803XA-0290 Emergency power supply module for GT4 Came G02807 Fixed arm support Came G0461 Set of 24 warning stickers on the frame Came 803XA-0580 White LED strip for 4m arm Came G0403 Protective rubbers with plugs for G0401 Came 803XA-0590 G0402 tube arm mounting bracket Came G0402 Tubular aluminum arm 4200mm Came 806LA-0060 KLT warning lamp Came G0401 4200mm flat aluminum arm

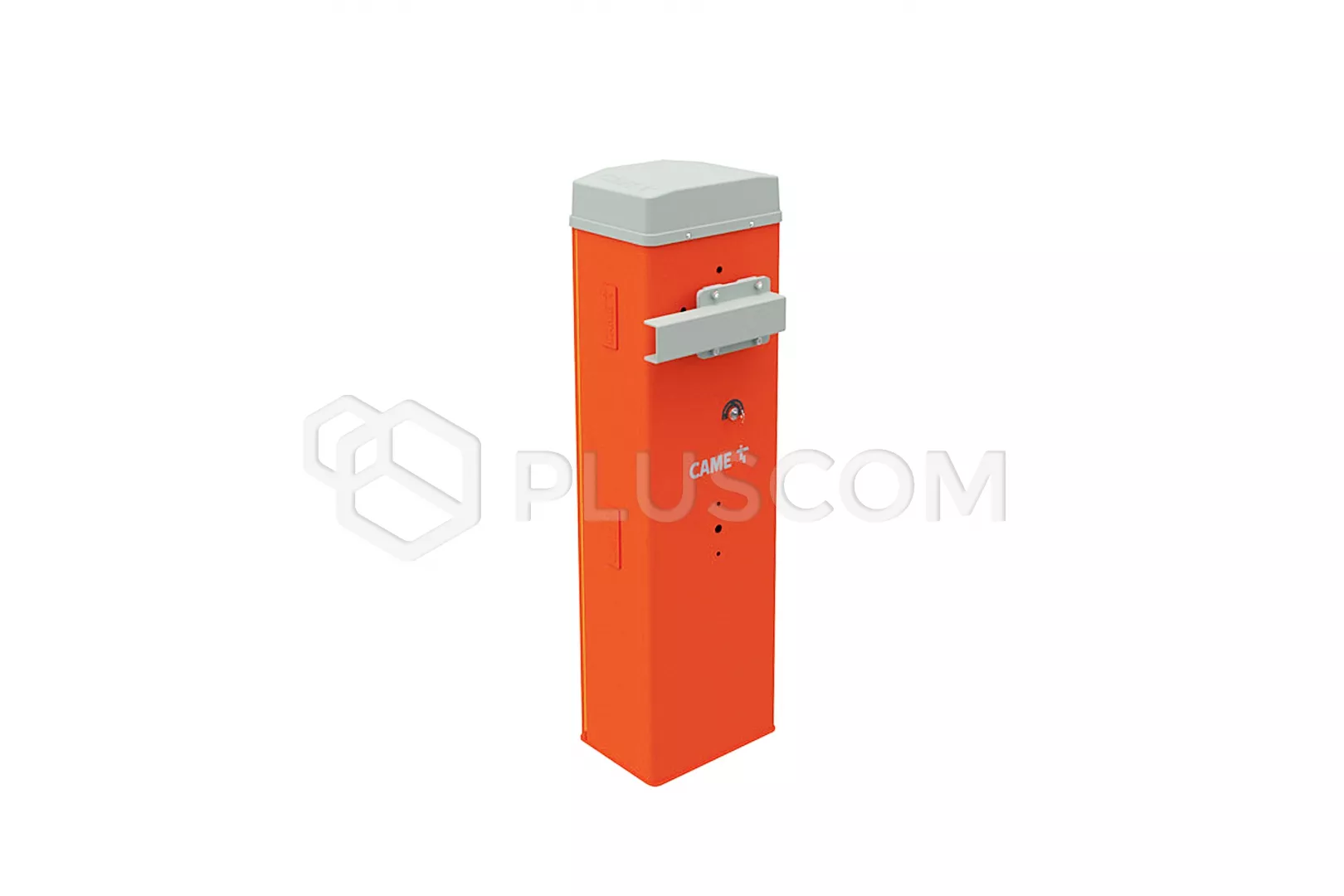

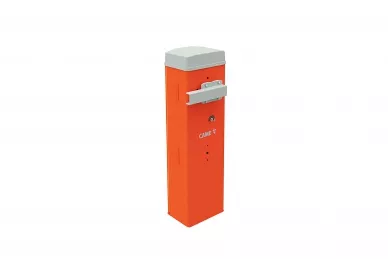

CAME GLT40AOS BARRIER CENTRAL UNIT FOR ARM UP TO 4m


The electromechanical barrier of the LT4 series is perfect as an access control element it will work in all guarded car parks, at universities, offices, housing communities and other industrial facilities.

The central unit is equipped with a 24 V DC self-locking gear motor with encoder, housing made of galvanized steel painted orange (RAL 2004), compensating spring and mounting accessories.
Tested for heavy duty - up to 300 cycles per hour and MCBF on 1.5 million cycles. Modern 24 V DC gearmotor equipped with an encoder enables advanced arm speed control. Thanks to this innovative function, the movement of the arm is smooth and constant both during opening and closing closing.

The new ZL92-C control unit is located directly under the cover housing. Thanks to this, configuration work can be carried out in a convenient way standing position. In addition, the control unit is protected by a z-housing ABS.

Practical balancing system that allows the use of a single spring, makes it no longer necessary to have special springs for different types arm length.

ADVANTAGES OF GLT40AOS
  • New encoder-controlled gear motor for smooth operation
  • balance system with one type of spring
  • two types of arms to choose from: rectangular G0401 and round G0402
  • possibility of installing LED lighting under protective rubbers (G0401)
  • emergency power supply with batteries mounted in the barrier housing
  • CAME KEY socket
  • possibility of direct connection of CAME readers and keypads
  • protection inputs supporting 8k2 resistive edges
  • output for a lamp operating in semaphore mode (KLT lamp)

CAME GLT40AOS Road barrier up to 4m

CAME GLT40AOS Road barrier up to 4m


TECHNICAL DATA:
  • Power: 220÷230V 50/60Hz
  • Motor power: 24V DC
  • Maximum current draw: 0.8A
  • Power: 190W
  • Standby power consumption: 7W
  • Torque: 140Nm
  • Opening time to 90°: 2÷6 s
  • Cycles/hour: 300
  • Cycles/day: 5400
  • Average life: (Cycles) 1,500,000
  • IP protection level: 54
  • Insulation class: I
  • Operating temperature:
    • -20+55°C
    • -40+55°C (with 803XA-0630 heater)
  • Weight: 56 kg
