CAME KRONO PLUS SPEED ATOMO kit for gates leafs
with a maximum leaf weight of 400 kg and max. 3m length

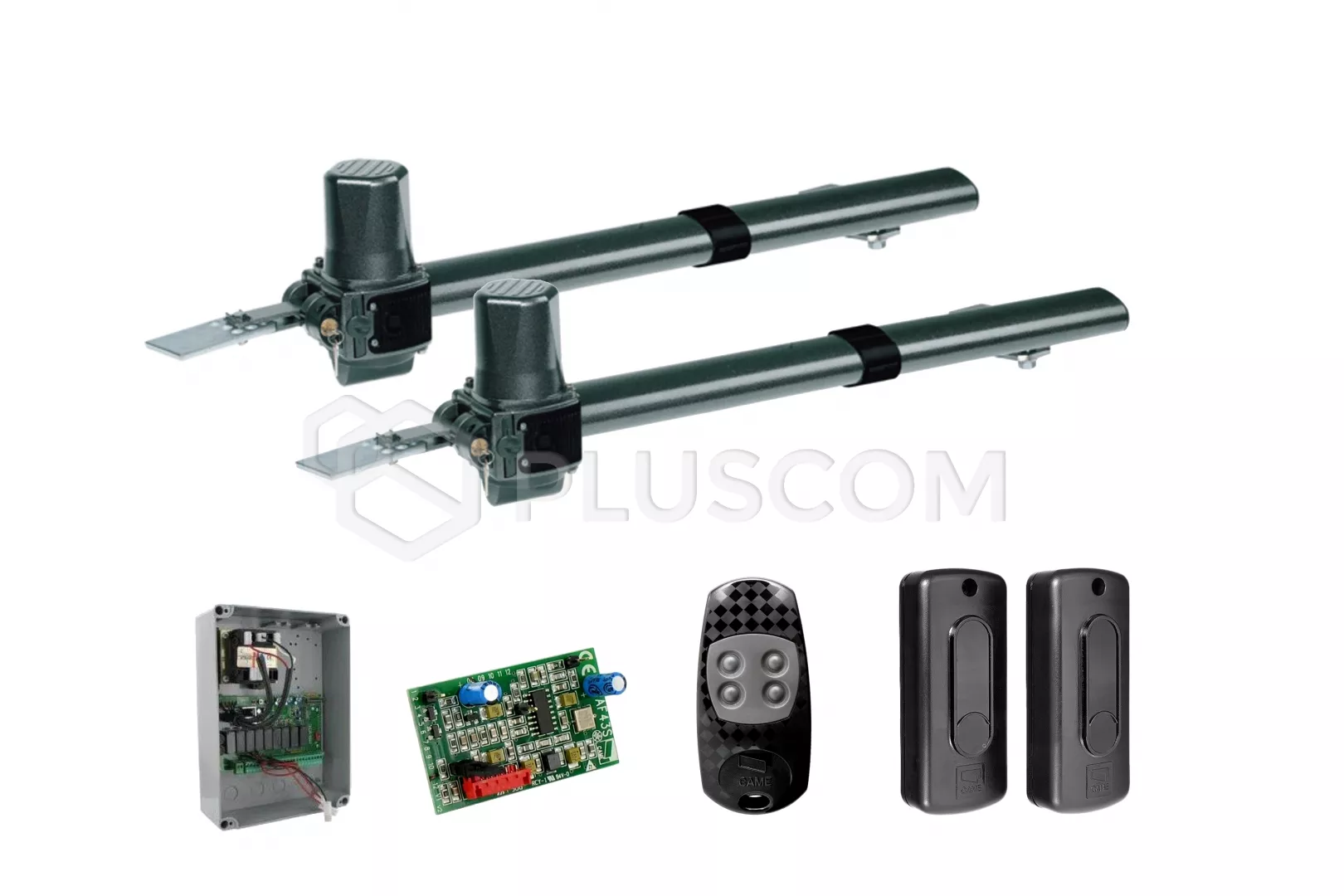

PACK CONTAINS:
|
CAME KRONO PLUS SPEED ATOMO set up to 3m
|
Self-locking KR312D and KR312S electromechanical
actuators with built-in switches extreme.
Thanks to its form and special finish, KRONO adapts to many architectural
solutions, also the most sophisticated and exclusive. The special aluminum
structure ensures durability and long life operation.
Application range:
- 3m / 400kg
- 2.5m / 600kg
- 2m / 800kg
The electromechanical motor does not require periodic lubrication and has
been designed to be ready for operation even in critical conditions weather.
LOCKING LOCK
In the event of a power cut, the drive ensures that the door is locked. If
There is no electricity when the leaf is in motion or when the gate is open,
practical a key-secured unlocking knob allows manual movement wing.

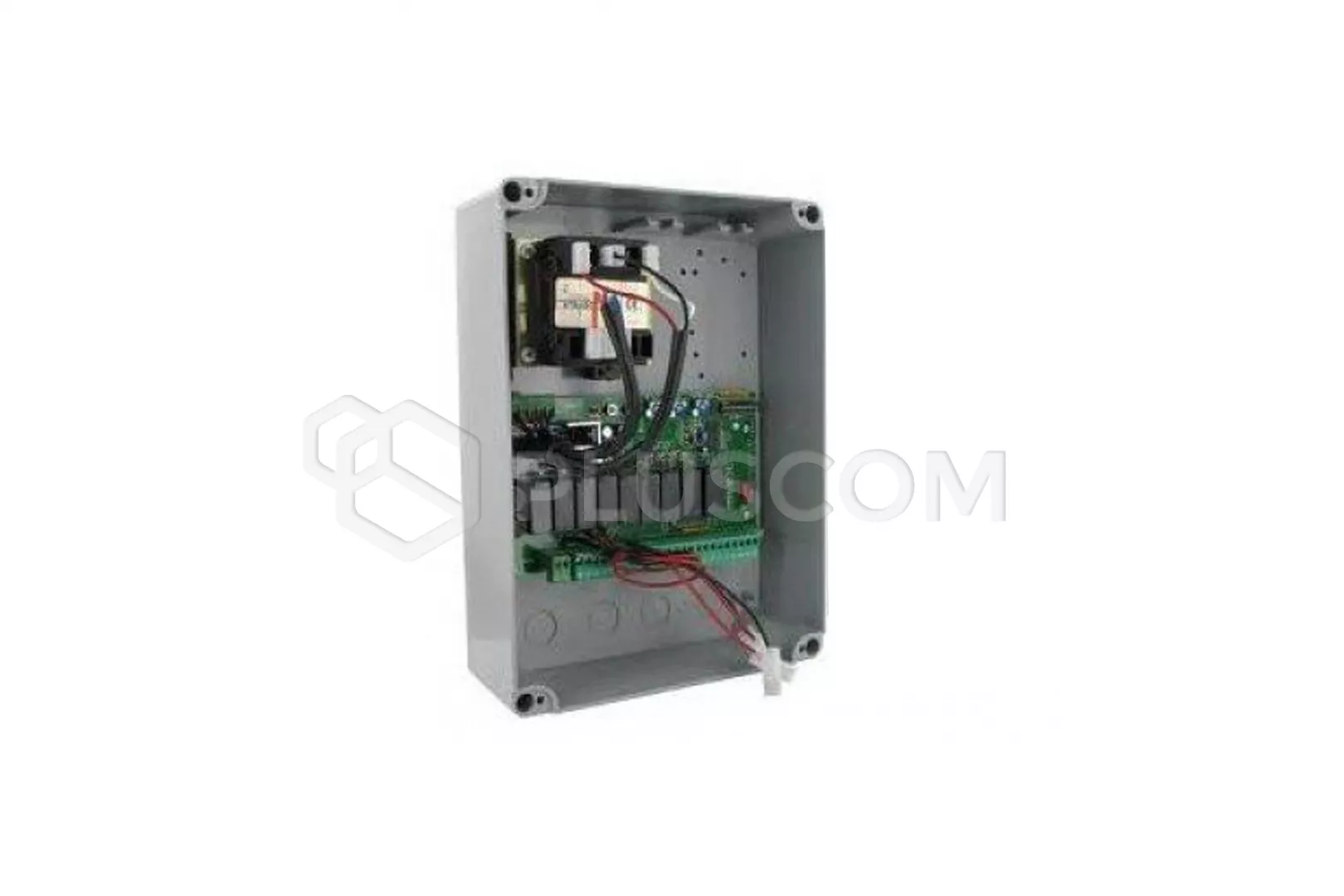

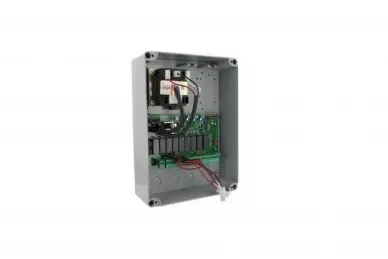

The ZA3P control panel for two-leaf gates is equipped with a
two-channel one radio decoder and is powered by 230V AC.
It enables the extension of the installation with the necessary control
accessories and safety devices such as photocells, flashing light, electric
lock, card frequencies, antenna or remote controls. The total power of the
accessories must not exceed 20 W.
ZA3P has an input for two lines of photocells and an output for an electric
lock. All connections are protected by fuses.
It has the function of managing limit switches and speed regulation braking.

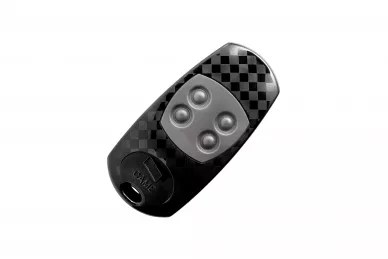

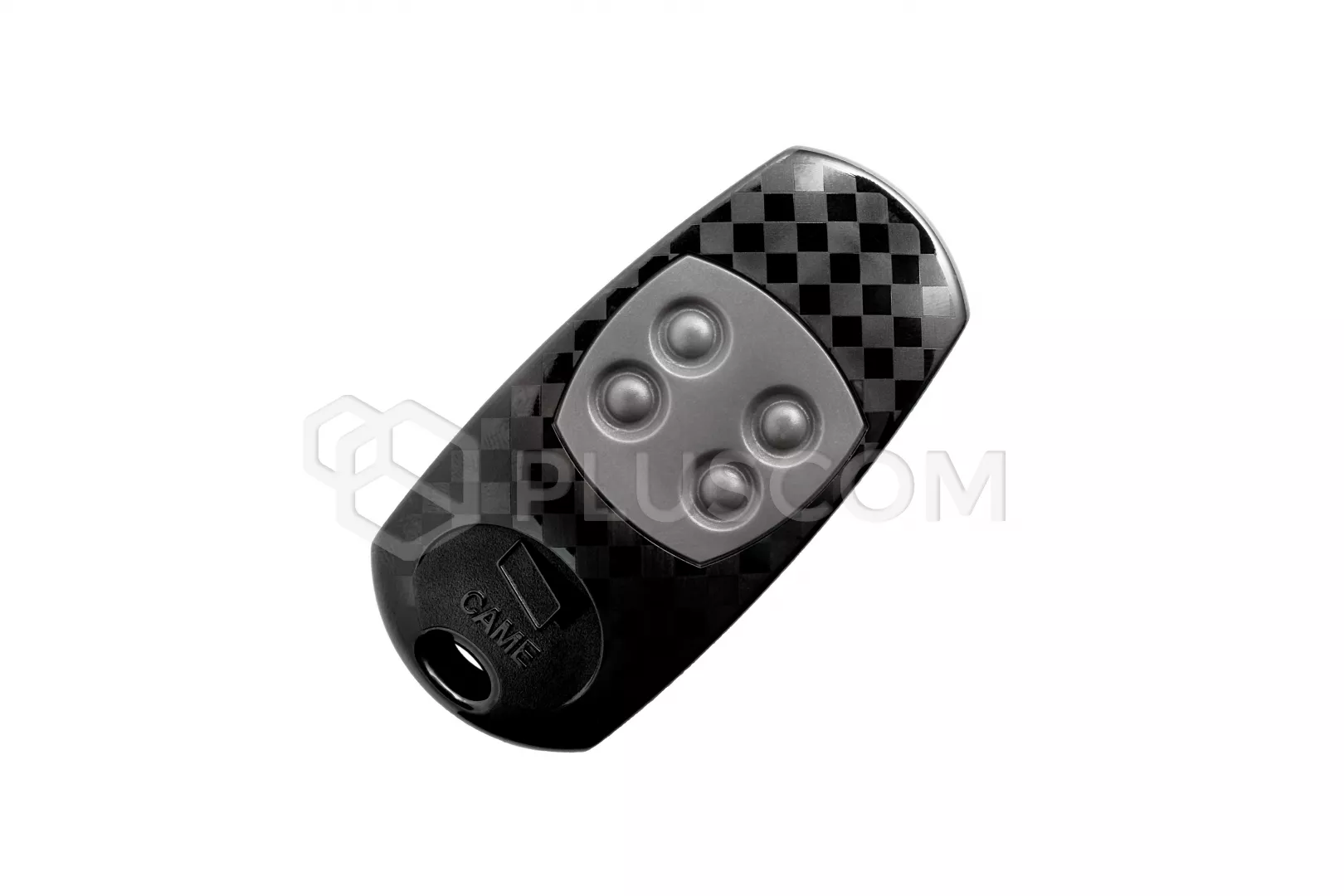

AT04EV remote control is provides radio control of the
dynamically variable code with the frequency of 433.92 MHz, which gives a high
level of user security and makes the code impossible to be copied.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.

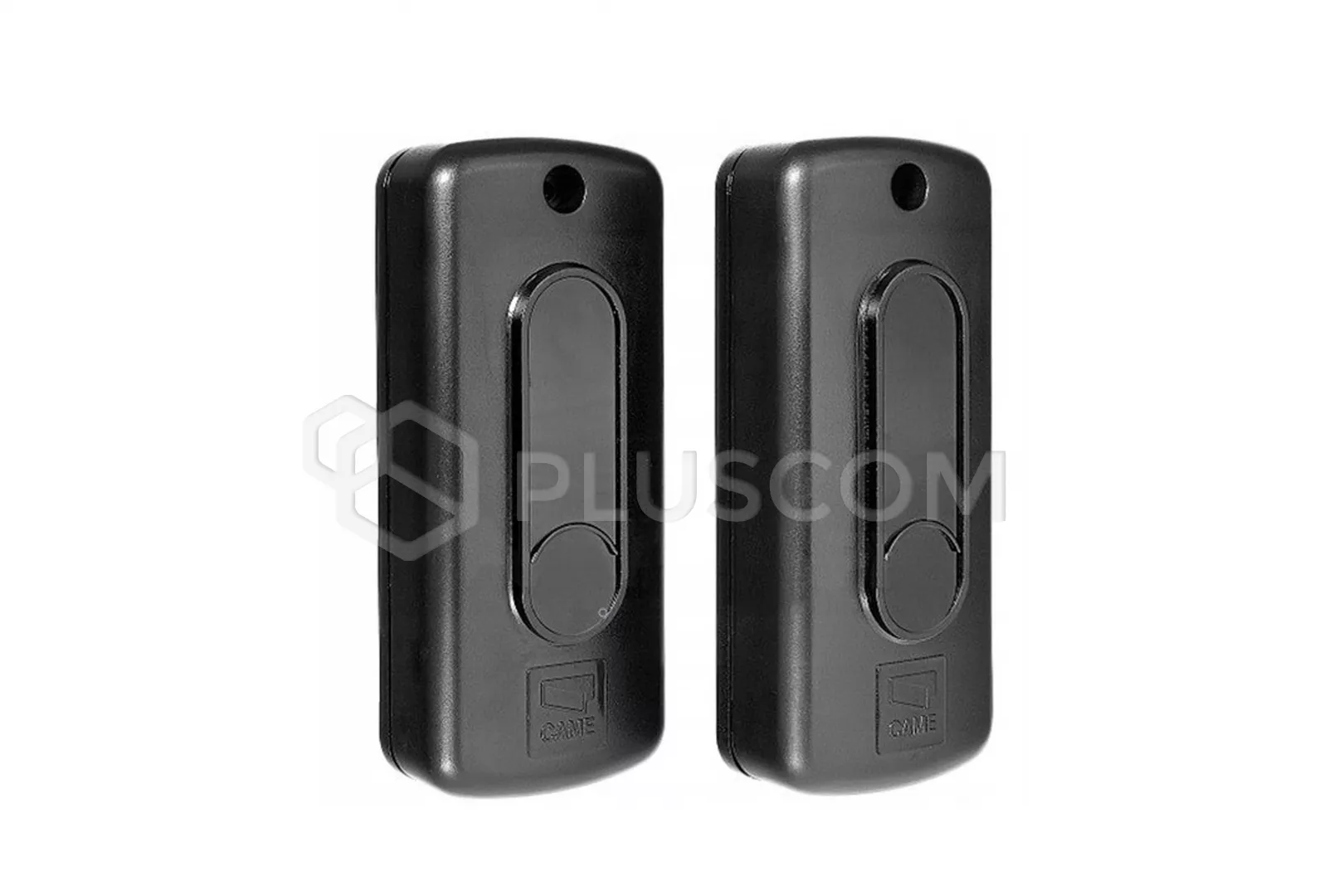

DIR photocells are distinguished by a modern design and very
small dimensions. Thanks to the use of the IP54 tightness class and appropriate
accessories mounting, the DIR photocells can be installed both inside and on
outside.
They have a modular structure, so their assembly can be on different types
heights.
The principle of operation of the DIR photocell is based on the synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver cooperates only with the
corresponding transmitter, eliminating thus possible interference with the
signal from external sources.

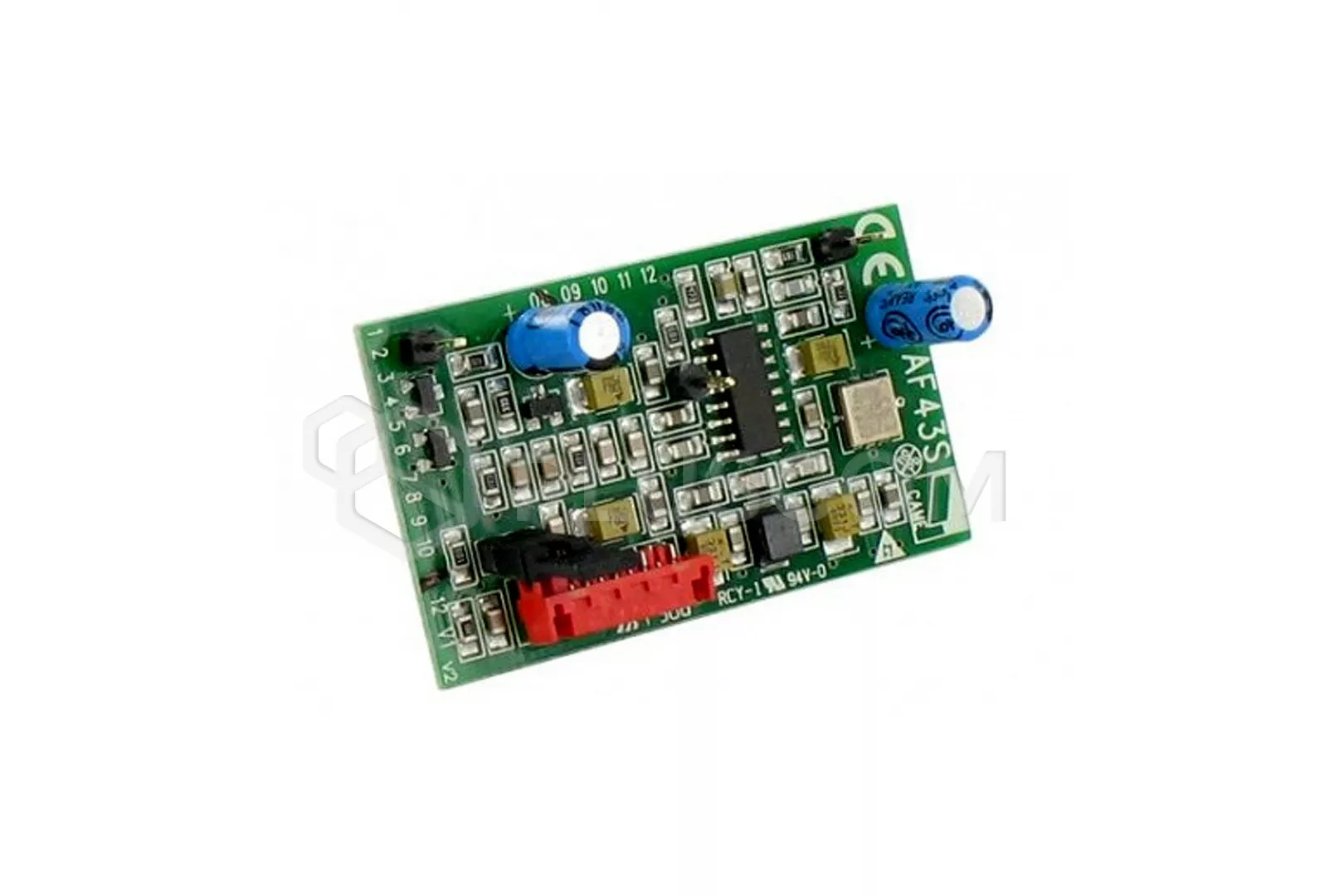

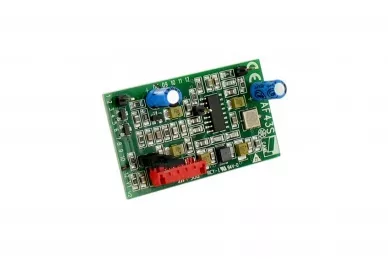

The AF43S frequency card, included in the kit, operates at
433.92 MHz and supports constant code control TOP and TAM and the ATOMO rolling
code.

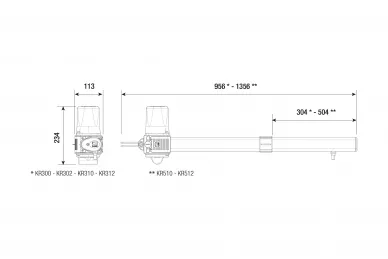

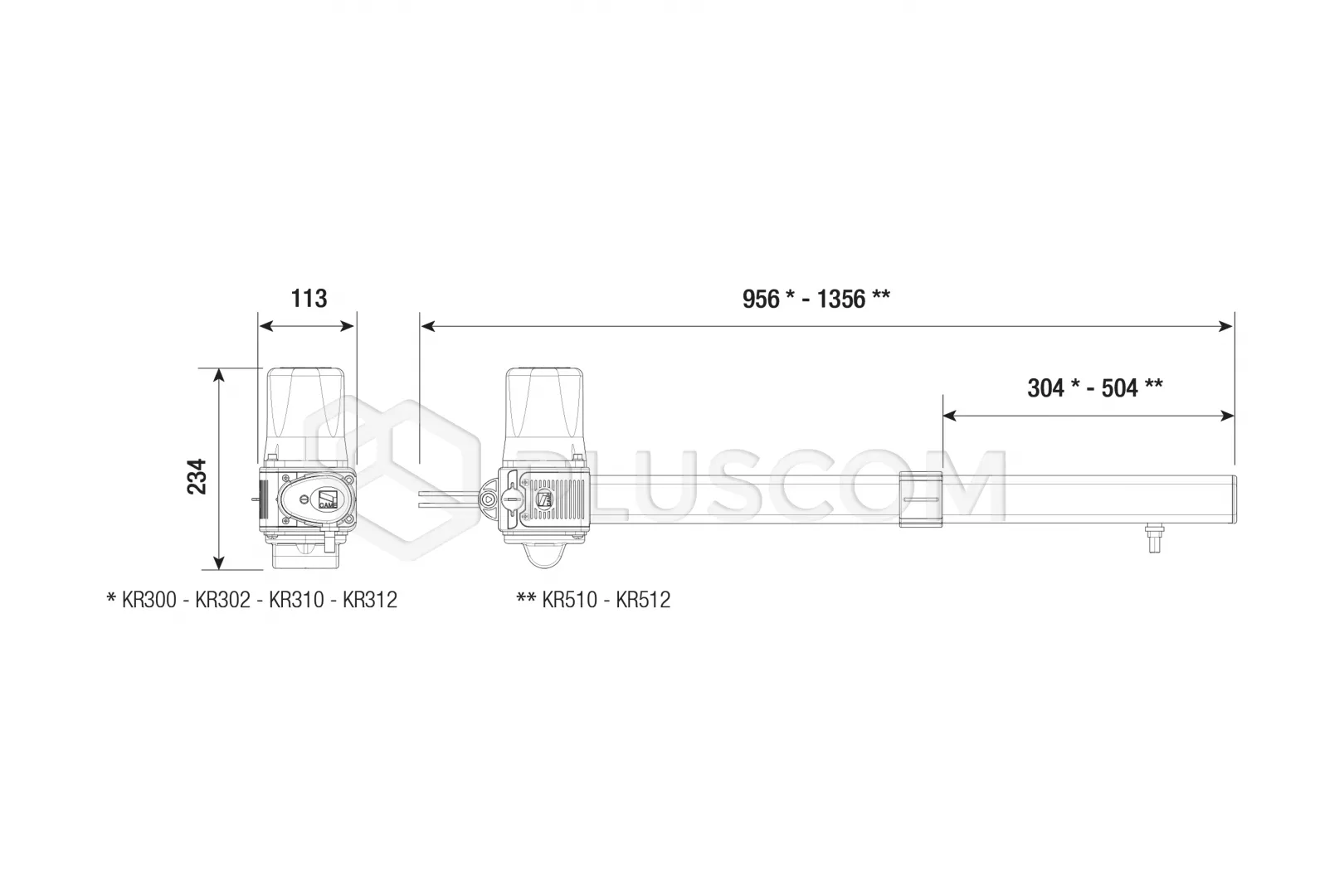

Dimensions:
TECHNICAL PARAMETERS:
- power supply: 230V 50/60 Hz
- motor power supply: 230V
- power consumption: 1.1A
- maximum power: 130W
- duty cycle: 30%
- thrust: 400 ÷ 3000 N
- opening time (up to 90 °): 18s
- degree of protection: IP54
- working temperature: -20 ° C ~ 55 ° C
- dimensions: 956x234x113mm
- weight: 10kg
