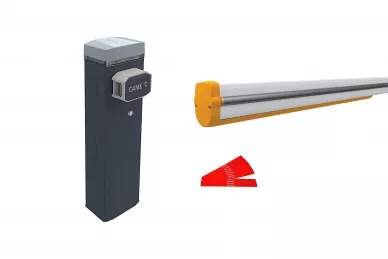

Came GARD GT4 - MCBF 3M CYCLES Set with 4m arm

1787,26 EUR including 23.00% VAT
Product code: #26666
Manufacturer: CAME
  • THE KIT:
  • 803BB-0160 - central unit with a mounting plate
  • 803XA-0270 - painted aluminum arm 4220mm
  • G02809 - warning stickers
  • CXN BUS technology
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
52,62 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came 803XA-0290 Emergency power supply module for GT4 Came 806TF-0100 DLX30SEP photocells with synchronization and BUS Came G02807 Fixed arm support Came 806TF-0090 DLX30SIP photocells with synchronization and BUS Came PL0033 12V 7Ah battery Came Came KEY WIFI interface managed by automation app (806SA-0110) Came RSE RS485 communication card Came 806TF-0110 Photocell DXR20SAP Came R800 Interface Came 803XA-0350 Full-size curtain

CAME GARD GT4 - MCBF 3M CYCLES Set with tonearm 4m


PACKAGE CONTAINS

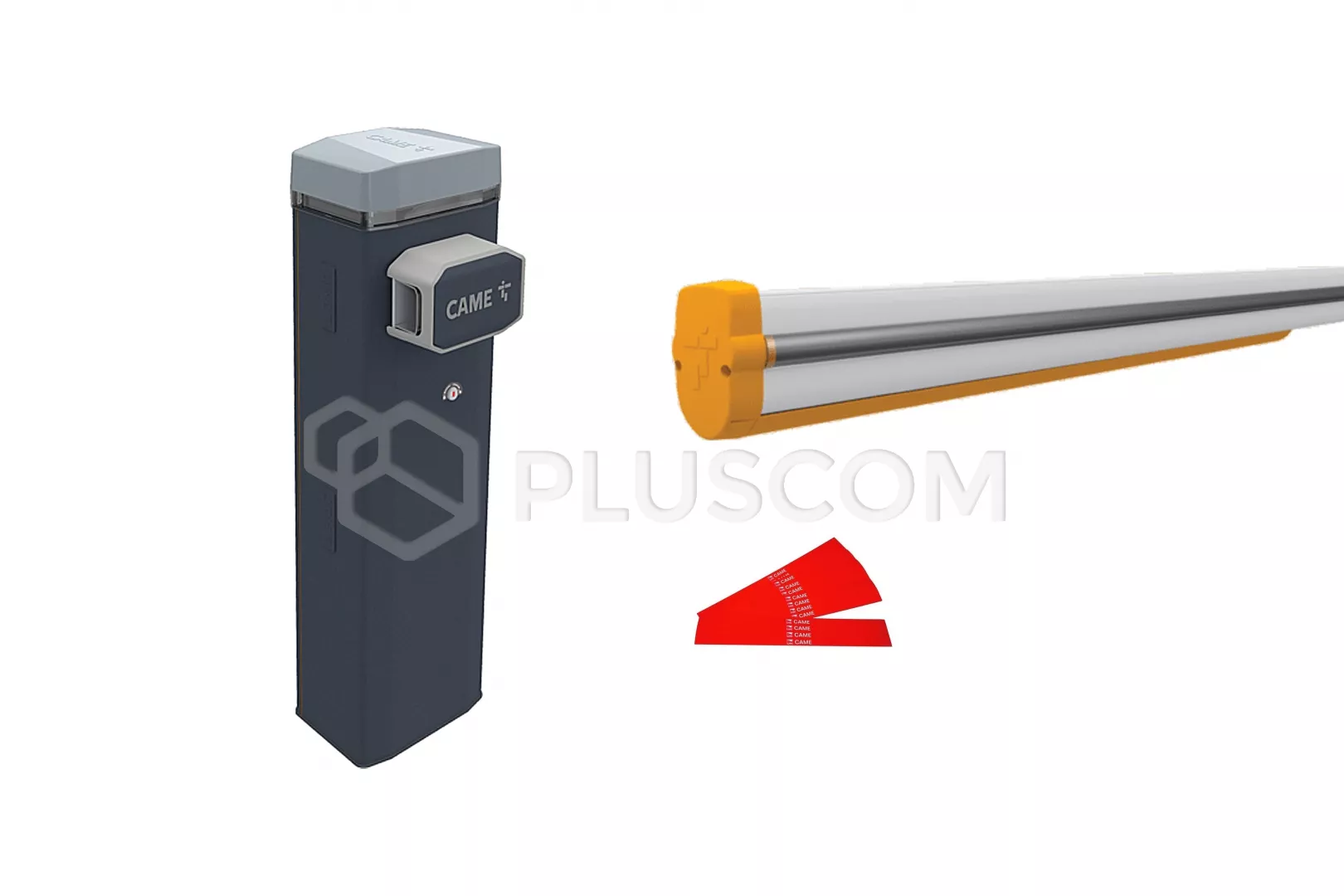

CAME GARD GT4 - MCBF 3M CYCLES Set with 4m arm

CAME GARD GT4 - MCBF 3M CYCLES Set with 4m arm
GT4 electromechanical barrier with built-in encoder is perfect for work with high loads. It is irreplaceable on crossings where long and trouble-free operation is necessary. Tested for intensive use up to 350 cycles per hour and MCBF at the level of 3 million cycles.
The GT4 has a built-in control unit located directly under the cover housing. Thanks to this, all stages of setup and maintenance can be left carried out in a comfortable standing position, with the housing closed.

PROPERTIES
  • DURABILITY - galvanized and painted steel housing
  • RELIABILITY - gearmotor with 24 V DC motor and ENCODER for advanced speed control
  • FUNCTIONALITY - built-in RG LED lighting system for full device status indication
  • SAFETY - EN12453 - rubber profile in the arm and effective obstacle detection system guarantee full safety
  • VERSATILITY - control electronics with digital inputs, CXN BUS technology, MODBUS protocol allowing for integration with systems external
  • EFFICIENCY - opening / closing speed from 2 to 4s, depending on on the length of the barrier
Aluminum arm 803XA-0270 painted white, dimensions 90 x 60 mm, with internal reinforcement, a strip masking the grooves and resistant to impacts rubber profile.
Length: 4220 mm.
The arm can be equipped with additional accessories such as warning stickers, curtains and supports (fixed or movable) - they have a very important function shock absorption when stopping the arm.

Warning stickers G02809 stuck on the white arm of the barrier significantly improve the visibility of the arm. They are made of reflective foil.

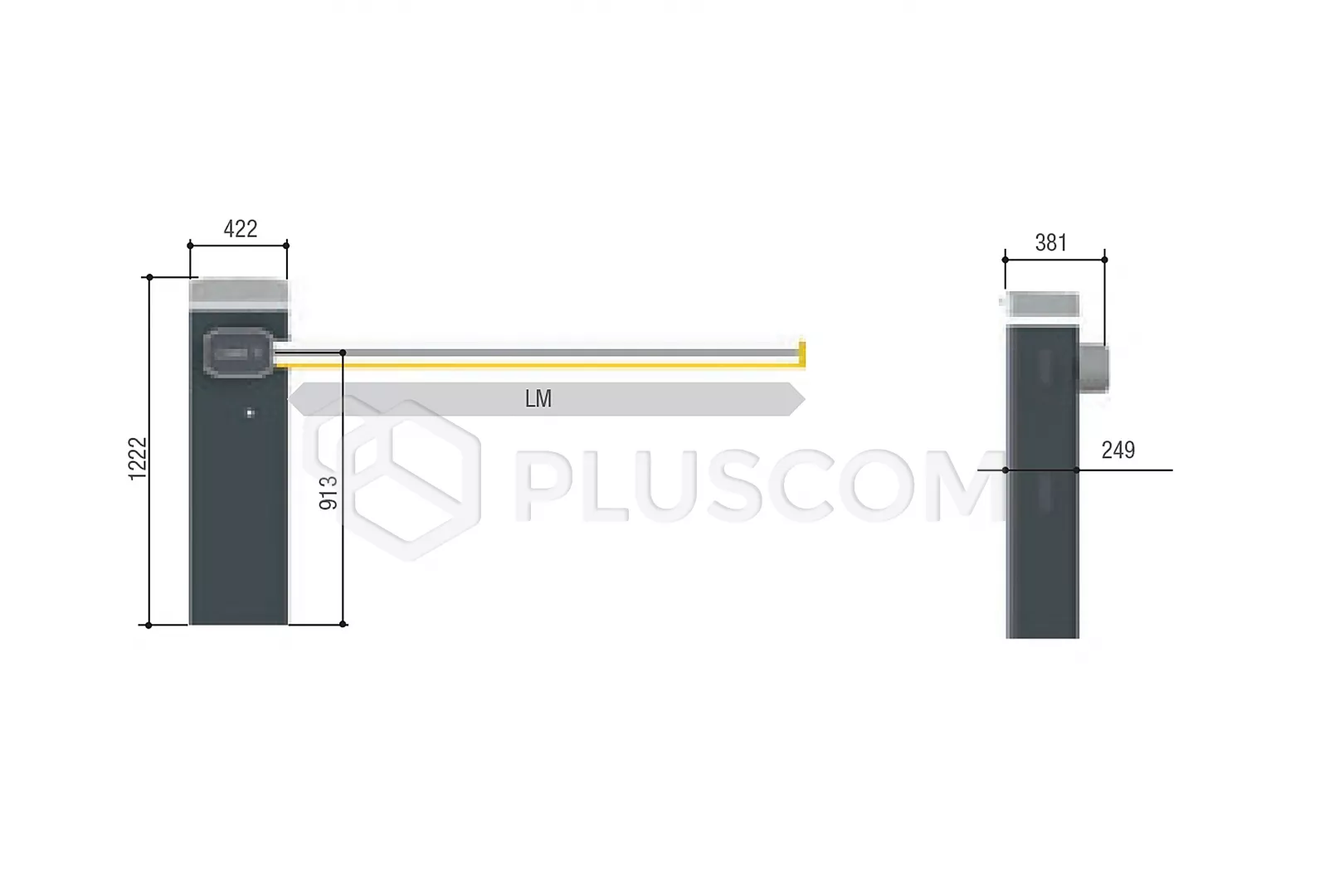

Dimensions:

Dimensions:


TECHNICAL DATA:
  • Powered: 230V AC
  • Motor power: 24V DC
  • Current consumption: 1.1A
  • Motor power: 240 W
  • Duty cycle: up to 350 cycles / hour
  • Open time to 90 °: 2-6 sec
  • Torque: 300 Nm
  • Grade of protection: IP 54
  • Working temperature: -20 ° C ~ 55 ° C
  • Dimensions: 1222x422x381mm
