CAME FTL 20 ECO TOP set for swing gates with a maximum leaf weight of 200
kg and max. 2m long

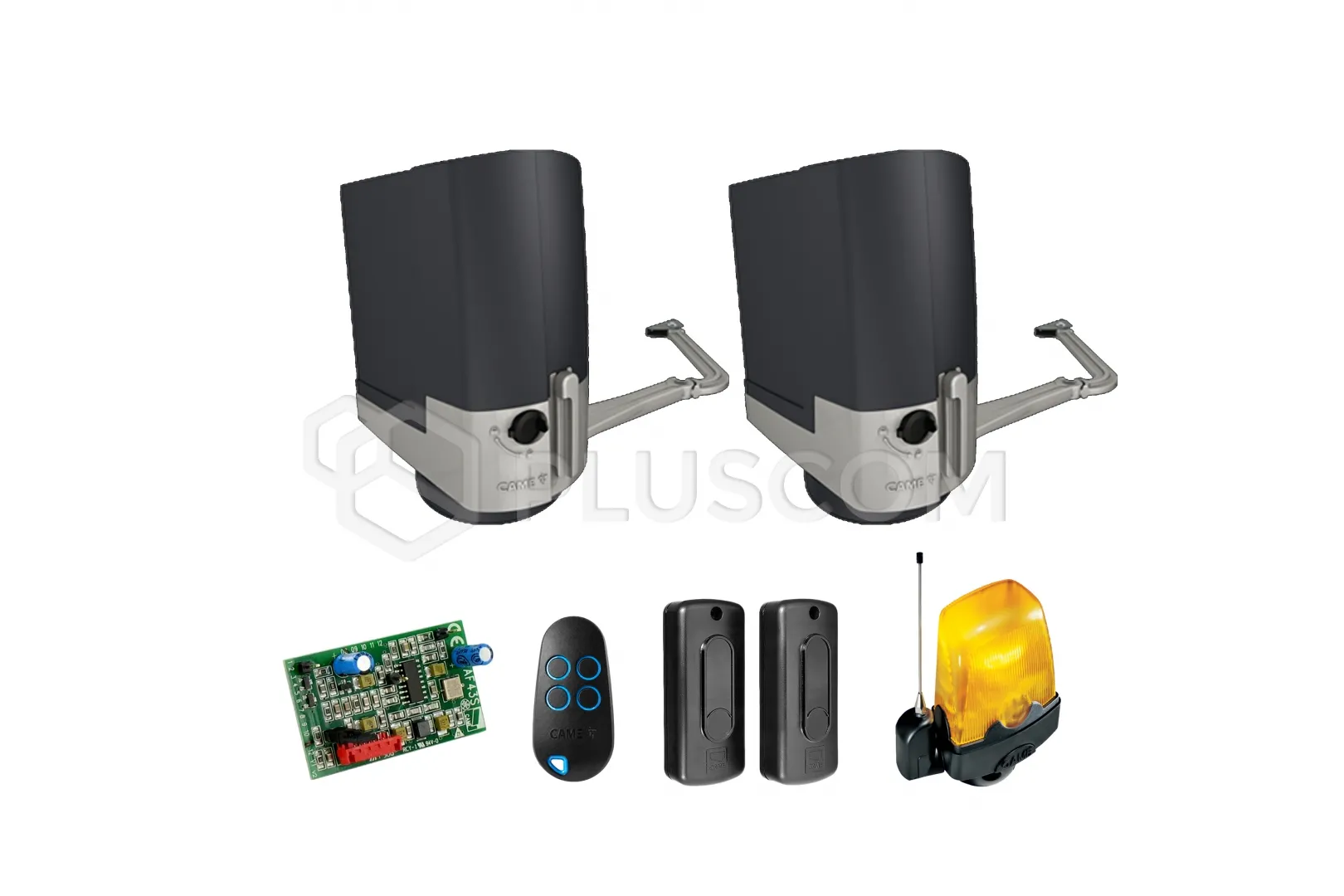

SET CONTAINS:
|
Came FTL 20 ECO TOP Set
|
FTL2FTL20DGC Actuator with control unit, motion
control, 1 a device that detects obstacles and limit switches mechanical and
FTX2FTX20DGS actuator with encoder (works only with the
FTL2FTL20DGC drive) is the perfect solution for swing gates with a leaf length
of up to 2 m.
Actuators are characterized by:
- operation in emergency mode in case of power loss (option)
- compliance with impact force standards
- easy release system with lever
- self-diagnosis of safety devices - photocell test
- control panel with separate terminal blocks for connecting control and
signaling devices, etc.
- DIP switches for function settings
- automatic closing time adjustment, braking phase adjustment, overload
sensor adjustment
- code keyboard support using the R800 card (option)
- calibration of gate leaf movement
The TOP44RBN remote control provides radio control of the
dynamically variable code o frequency 433.92 MHz, which gives a high level of
safety of use, and makes the code impossible to copy.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.
DIR photocells are distinguished by a modern design and very
small dimensions. Thanks to the use of the IP54 tightness class and appropriate
accessories mounting, the DIR photocells can be installed both inside and on
outside.
They have a modular structure, so their assembly can be on different types
heights.
The principle of operation of the DIR photocell is based on the synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver cooperates only with the
corresponding transmitter, eliminating thus possible interference with the
signal from external sources.
The AF43S frequency card, included in the kit, operates at
433.92 MHz and supports constant code control TOP and TAM and the ATOMO rolling
code.
KLED24 signal lamp is an element that increases the safety of
using the automation. The light source is an energy-saving LED diode giving up
to 85% savings and longer life compared to traditional light bulbs.
Housing made of polycarbonate ABS material.
The lamp can be installed
on the wall, using the dedicated KIAROS bracketthat provides full
adjustment range: 0°-90° - 180°-270°. The lamp is reversible integration with
the radio antenna.
