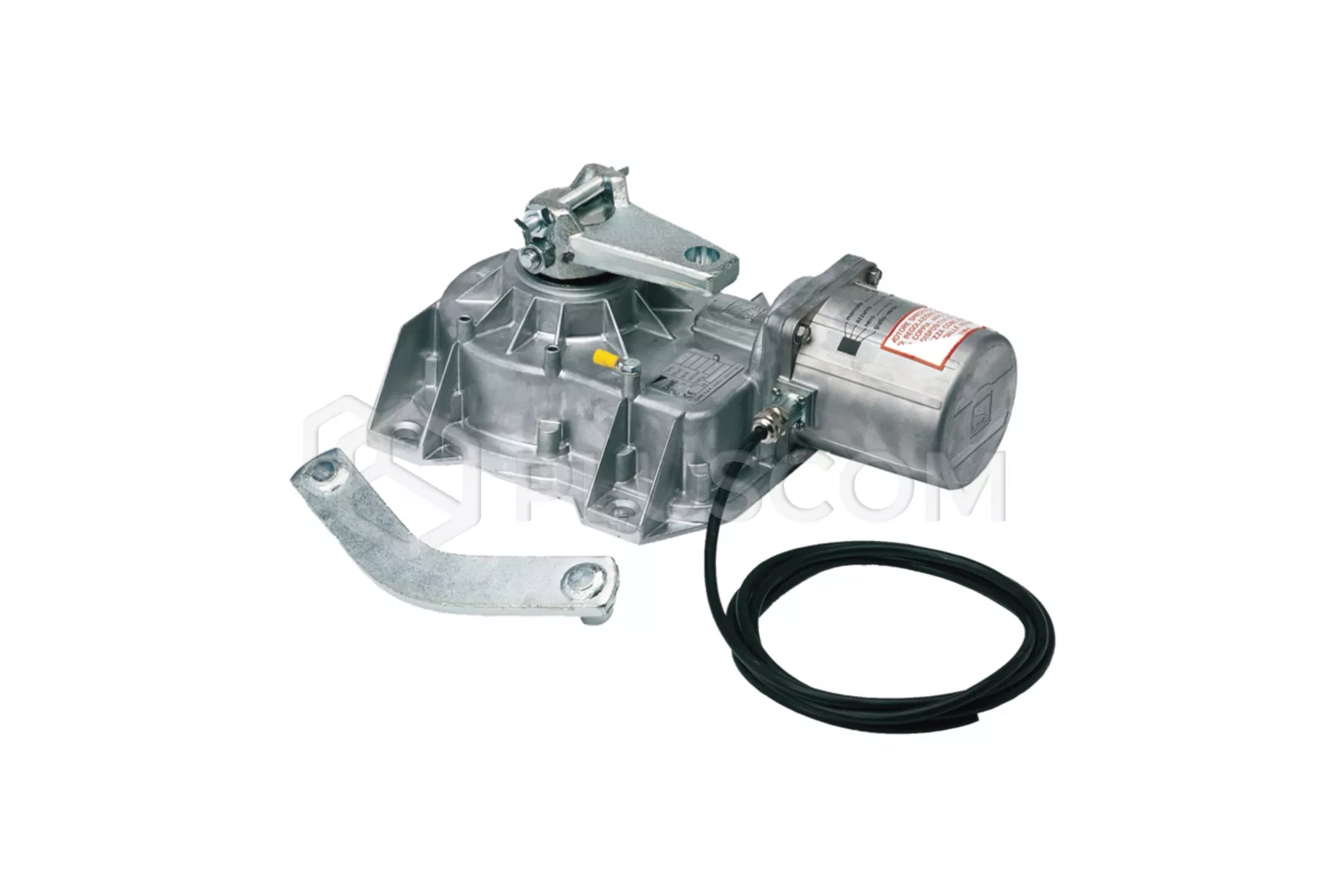

Came FROG-A24 underground actuator 24V

644,53 EUR including 23.00% VAT
Product code: #26041
Manufacturer: CAME
  • Max length of the gate leaf: 3.5m
  • Max weight of the gate leaf: 800kg
  • 24V motor
  • For intensive use
  • Adjustable opening time 16 s - 45 s up to 90°
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came A4370 Gear that increases the gate opening angle Came FROG-CFNI Stainless steel housing with galvanized cover Came FL-180 Gear that increases the gate opening angle Came A4366 Release system with personal key ''TOP'' Came A4365 Came key release system Came A4364 Release system, lever ''Standard'' Came FROG-CFN Housing with galvanized cover Came PL0033 12V 7Ah battery Came LOCK82 Two-cylinder electromagnetic lock 12V Came ZLX24SA Control panel for a 2-leaf gate

CAME FROG-A24 underground irreversible actuator for gates with leaves up to 3.5 m long


GATEWAY PARAMETERS
  • 3.5m/400kg
  • 2.5m/600kg
  • 2m/800kg
FROG-A24 is a self-locking underground electromechanical actuator for gates wingers with max. leaf length up to 3.5 m. Thanks to the use of an electromechanical motor, the gate movement is smooth, precise and safe even in extreme conditions.

A simple, patented release that will enable you in the event of a power outage unlocking the actuator.
The release mechanism is available in three versions:
  • basic system based on release lever
  • two extended versions in which the clutch is released via the use of a special three-sided key or a personalized key cylindrical DIN
For self-locking drives with a leaf over 2.5 m installation electric lock is mandatory.

The biggest advantage of underground actuators is the aesthetics and discretion of the drive it is invisible and does not spoil the image of the gate
The second important advantage of underground drives is the possibility of installation in place where because of
  • narrow entrance
  • very narrow posts where dimension A is less than 100mm
There is no room for installing screw drives or drives with a folding arm

TECHNICAL DATA:
  • Motor power supply: 24V
  • Max. power consumption: 180 W
  • Current intensity: max. 15 A
  • Thrust force: 320 Nm
  • Opening time (up to 90°): adjustable 16-45s
  • Duty cycle: intensive work
  • Protection level: IP 67
  • Operating temperature: -20 °C to +55 °C
  • Dimensions: 405 x 220 x 330 mm (with housing)
  • Weight: 11 kg
Download
User manual 14.14 MB
CE Declaration 0.49 MB
