CAME BKV25AGE PLUS set for sliding gates weight
2500kg

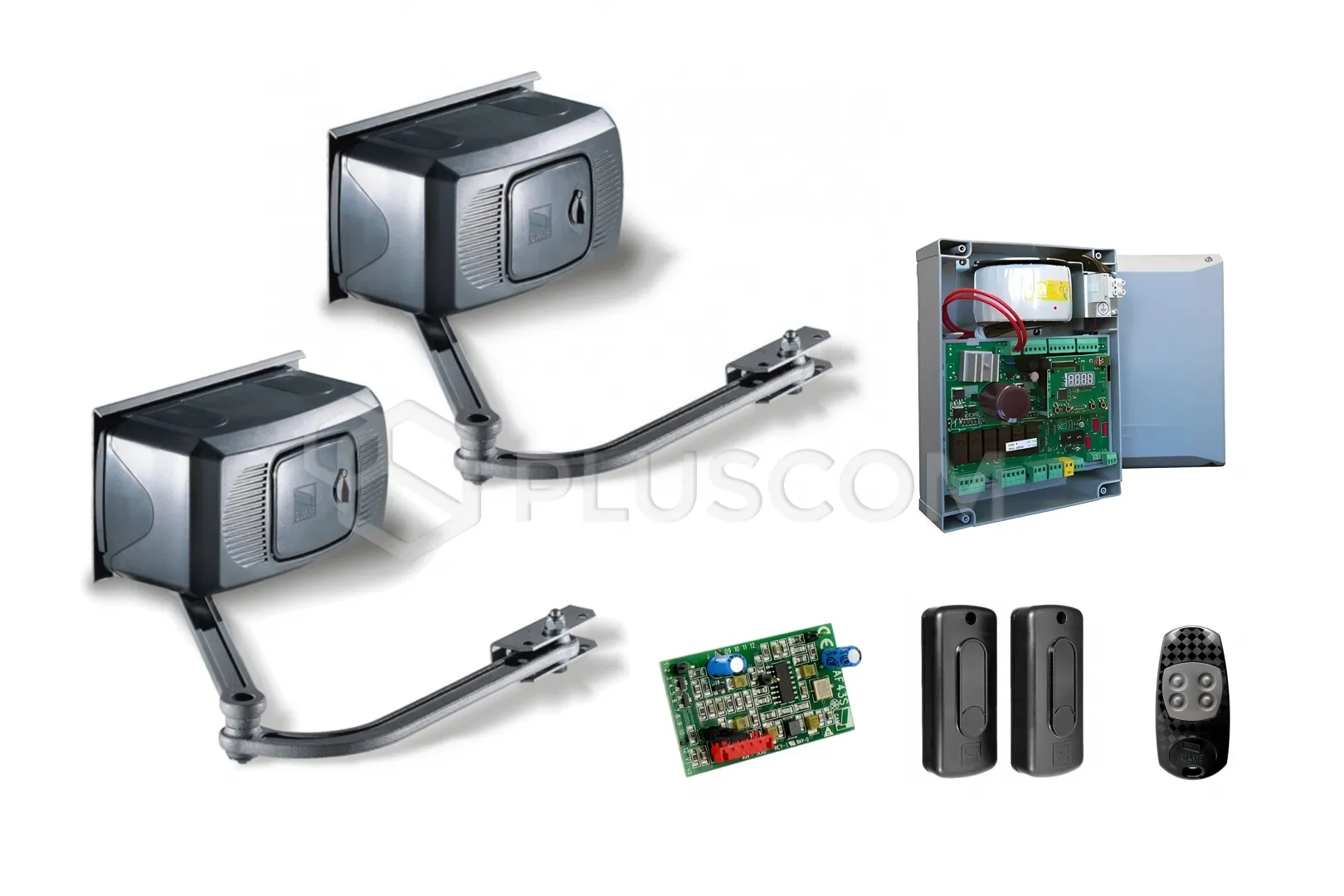

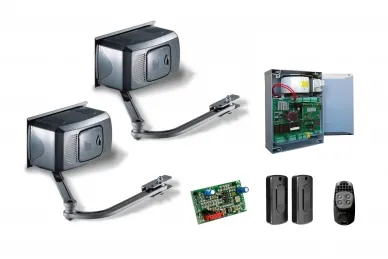

SET CONTAINS:
|
CAME FERNI Set
|
The
FERNI drive is designed for installation on leaves
up to 4 m long, when the gate is located between large poles and there is a gap
between the front of the pole and the gate hinge is quite large and is up to 38
cm.
24V technology increases safety by enabling adjustments the speed of the
opening and closing movement and thanks to the detection function obstacles.
Installation does not require any construction work or removal of wings,
offering maximum adaptation to all installation needs. There is a solution
supplied as standard with an articulated arm, but is also available special
straight arm for installation in the presence of walls or fences in near the
gate.
AT04EVremote control provides dynamic code radio control
variable frequency of 433.92 MHz, which gives a high level of security use, and
makes the code impossible to copy.
Each time you press the transmitter button, one of over 4 is sent billions of
possible code combinations according to a complex algorithm that only the
receiver can decode it. This technique makes cloning impossible code being
sent.
DIR Photocells are distinguished by their modern and very
modern appearance small sizes. Thanks to the use of the IP54 tightness class
and appropriate mounting accessories, DIR photocells can be mounted both
indoors and outdoors and outside.
They have a modular structure, so they can be installed at different heights.
The principle of operation of the DIR photocell is based on synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver works only with the
appropriate transmitter, eliminating thus, there is the possibility of signal
interference from external sources.
The
AF43S frequency card, included in the set, works in
frequency 433.92MHz and supports TOP and TAM fixed code control and ATOMO
variable code.
TECHNICAL DATA:
- Power supply: 230V 50/60Hz
- Motor power supply: 24V DC
- Current consumption: 15A
- Maximum power: 180W
- Opening time (90°): adjustable
- Max. torque: 470 Nm
- Ratio: 1/709
- Fitness: intensive work
- Protection rating: IP54
- Weight: 14kg
