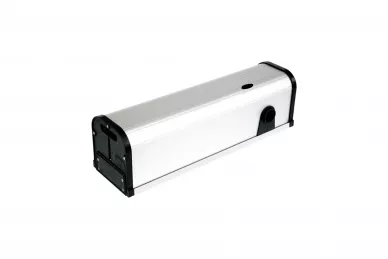

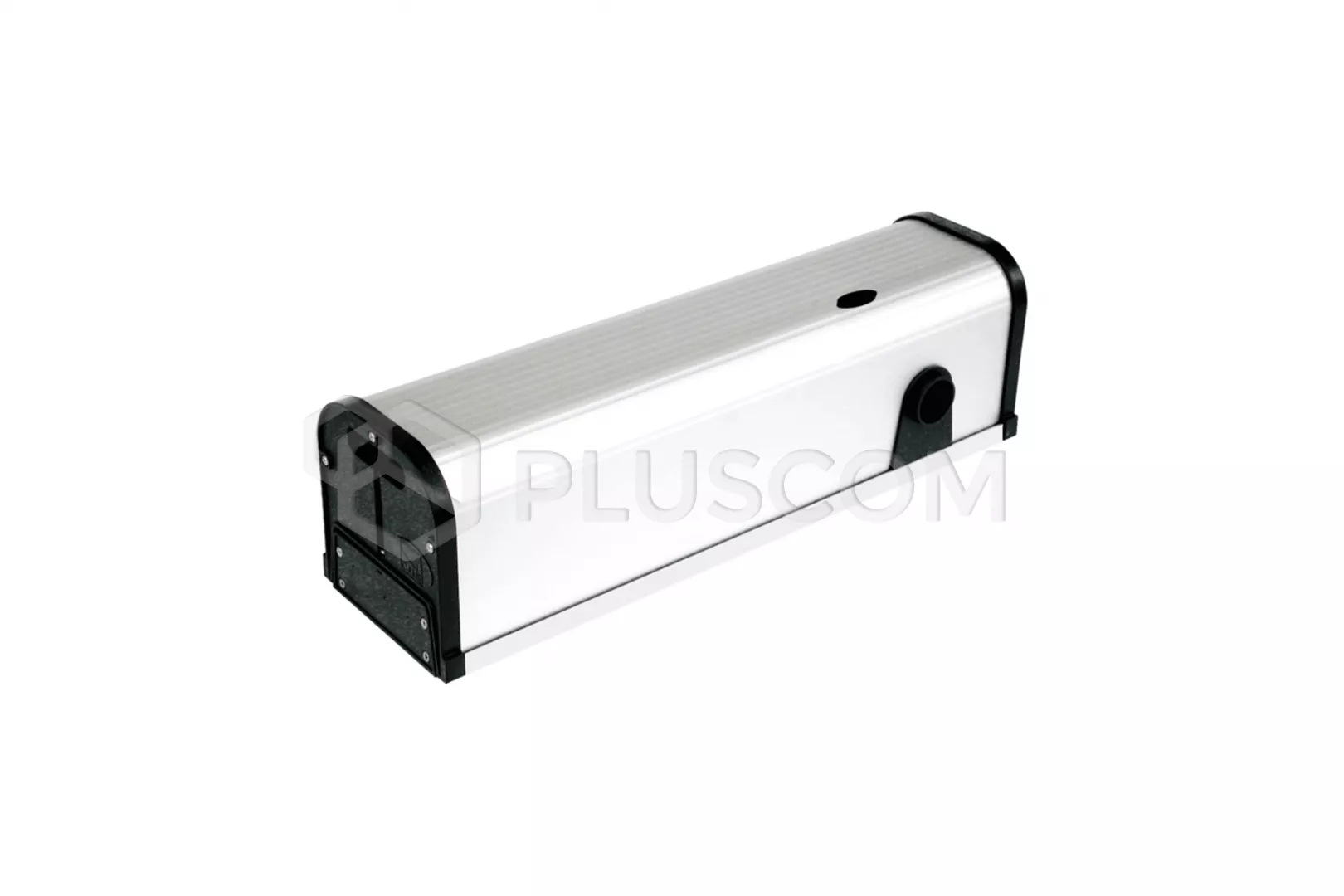

Came F4024EP 24V actuator for folding gates

CAME F4024EP 24V actuator for folding gates with a leaf up to 2m

SCOPE OF APPLICATION

• Non-folding leaf:
• • Max. leaf width: 2m
  • Max. leaf weight: 300kg
• Foldable/accordion door:
• • Max. leaf width: 1.2m
  • Max. leaf weight: 200kg

F4024EP actuator for folding and swing gates equipped with sliding guides. It is installed directly on the sash or lintel, depending on the space. Allows for linear movement and safe, on medium and large door frames dimensions, with a wing up to 2 m long.
F4024EP is designed for intensive work

ADVANTAGES OF THE DRIVE:

• easy installation
• right and left-side installation thanks to symmetrical reducer shaft inputs
• possibility to adjust the speed of movement and braking, both during opening and closing, and
• electronic obstacle detection
• a pedestrian or partial crossing allows for the opening of one wing or a limited opening for a pedestrian crossing
• complete control of the gate using a remote control, including the ability to immediately stop the movement of the leaves

The drive has a release system equipped with a handle or hanging handle a cable for easy opening of the gate if necessary.

TECHNICAL DATA:

• Power supply: 230V 50/60Hz
• Motor power supply: 24V DC
• Motor current consumption: 10A
• Maximum engine power: 180W
• Number of gear revolutions: 2.4 rpm
• Efficiency: intensive work
• Torque: 470Nm
• Operating temperature: - 20°C ~ 55°C
• Protection rating: IP54
• Dimensions: 166x555x161mm
• Weight: 11kg
