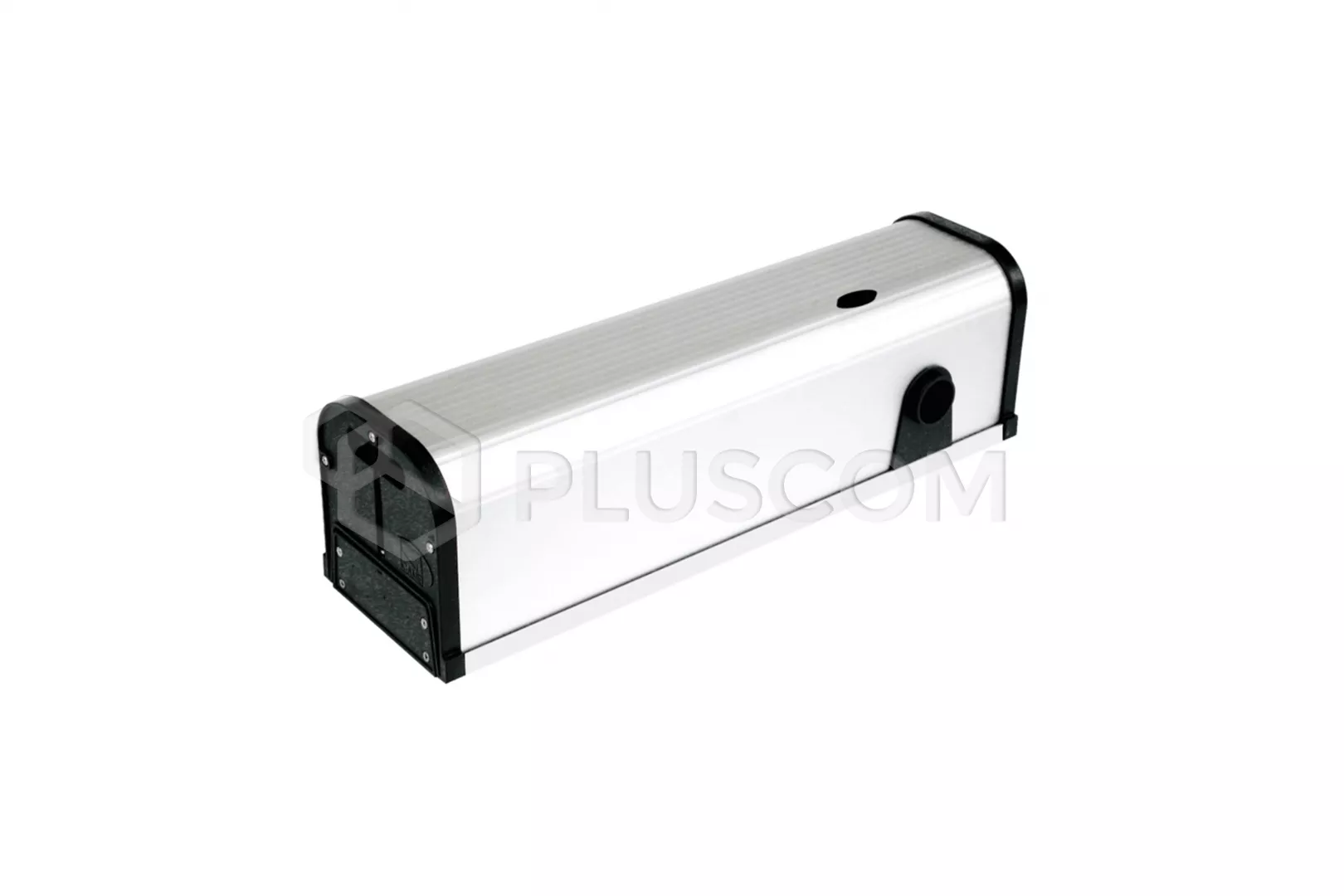

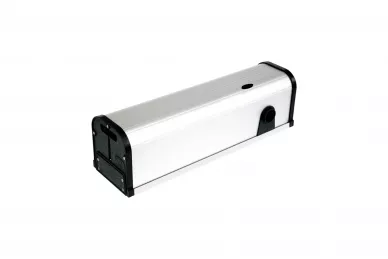

Came F40230E 230V actuator for folding gates

CAME F40230E 230V actuator for folding gates with a leaf up to 2m

SCOPE OF APPLICATION

• Non-folding leaf:
• • Max. leaf width: 2m
  • Max. leaf weight: 300kg
• Foldable/accordion door:
• • Max. leaf width: 1.2m
  • Max. leaf weight: 200kg

F40230E actuator for folding and swing gates equipped with sliding guides. It is installed directly on the sash or lintel, depending on the space. Allows for linear movement and safe, on medium and large door frames dimensions, with a wing up to 2 m long.

The actuator is supplied with an aluminum mounting plate for easy installation installation and shortening assembly time. Additionally, it is suitable for outdoor use assembly, thanks to seals protecting against weather conditions.

ADVANTAGES OF THE DRIVE:

• easy installation with aluminum mounting base
• right and left-side installation thanks to symmetrical reducer shaft inputs
• possibility to adjust the speed of movement and braking, both during opening and closing, and
• electronic obstacle detection
• test of the protections activated in the installation before each movement of the gate, both when opening and closing
• a pedestrian or partial crossing allows for the opening of one wing or a limited opening for a pedestrian crossing
• complete control of the gate using a remote control, including the ability to immediately stop the movement of the leaves
• control panel available with safety lock and buttons on the cover

The drive has a release system equipped with a handle or hanging handle a cable for easy opening of the gate if necessary.

TECHNICAL DATA:

• Power supply: 230V 50/60Hz
• Motor power supply: 230V 50/60Hz
• Motor current consumption: 1.2A
• Maximum engine power: 235W
• Number of gear revolutions: 1.3 rpm
• Efficiency: 30%
• Torque: 340Nm
• Thermal protection engine: 150°C
• Operating temperature: - 20°C ~ 55°C
• Protection rating: IP54
• Dimensions: 166x555x161mm
• Weight: 11.5kg
