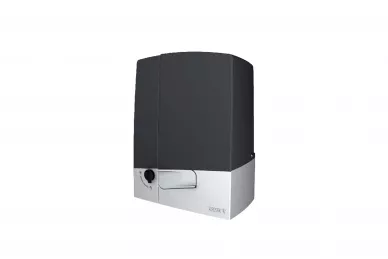

Came BXV04AGE Sliding gate operator up to 400 kg

607,18 EUR including 23.00% VAT
Product code: #26531
Manufacturer: CAME
  • gate weight up to: 400kg, length up to 14m
  • 24V motor
  • auto configuration function
  • CXN BUS
  • work speed: 12m/min
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came RIOPH8WS A pair of wireless photocells Came PL0027 C8MM 8mm metal rack with lock Came Came KEY WIFI interface managed by automation app (806SA-0110) Came PL0026 C10MM metal rack with a 10m lock Came RIOCN8WS radio control module Came H3000 Release mechanism from the outside Came RSE RS485 communication card Came RSDN003 Heating system Came RSDN002 Set of magnetic limit switches Came RSDN001 cable release for H3000

CAME BXV04AGE Motor for sliding gates weighing 400kg and lengths up to 14m


DRIVE PURPOSE:

BXV04AGE The gearmotor enables the automation of sliding gates with:
  • up to 400kg
  • maximum length 14m
  • travel speeds: 12m / min
CAME BXV04AGE Sliding gate operator up to 400 kg

CAME BXV04AGE Sliding gate operator up to 400 kg
BXV04AGE is dedicated to residential buildings and estates.
The drive is equipped with advanced electronics to facilitate installation and configuration thanks to innovative electronic functions, such as:
  • SLOW DOWN OPENING AND CLOSING - smooth movement for long life and consistent performance
  • CLOCK FUNCTION - schedules allowing for management 8 different programs for automatic opening and closing in set hours
  • INCREASED NUMBER OF INPUTS AND OUTPUTS - both for connection traditional accessories as well as those with the CXN BUS system or devices RIO System 2.0 wireless devices (using the appropriate module radio)
BXV PLUS is equipped with inputs for connecting both traditional ones accessories as well as the CXN BUS accessories to enable the installer to connect all control and safety devices in a new and faster way.
The drive is equipped with an even more reliable and developed control unit ZBC1, which has many additional functions, available as modules complementary.

PROPER OBSTACLE DETECTION
The technology of adapting speed and force ensures greater safety in when an obstacle is encountered and the correct detection of problems caused by contamination, mechanical resistance of the gate, which in otherwise, they could jam the drive and require service.

The most important advantages of the drive include:
  • modern control panel
  • compatible with CNX BUS systems
  • cooperation with CONNECT technology
  • auto-configuration function
  • 4 safety device inputs
  • compatible with the AMAZON ALEXA system
  • Perfect adaptation of the drive's operating parameters to the current conditions weather
  • Magnetic limit switches
  • RIO 2.0 SYSTEM
  • battery backup system
  • RSE MODULE

TECHNICAL DATA:
  • Power supply: 230V
  • Motor power: 24V
  • Standby power consumption: 5.5W
  • Power consumption with RGP1: 0.5W
  • Power: 170W
  • Thrust: 350N
  • Maximum speed of movement: 12m / min
  • Work cycle: intensive work
  • Working temperature: -20 ° C to + 55 ° C
  • Degree of protection: IP54
  • Dimensions: 425x290x 212mm
