CAME BXV 10 MAGNETIC set for sliding gates with
weight 1000kg with magnetic limit switch

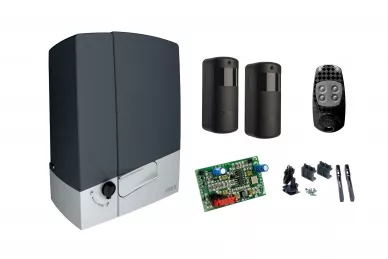

PACK CONTAINS:
|
CAME BXV 10 MAGNETIC set for sliding gates
|
The BXV series drive is a reliable solution for
applications in both private homes as well as intensive use, e.g. in housing
estates.
It is equipped with an electronics board with separate terminals to facilitate
phases commissioning and diagnostics and a programming display.
The most important advantages of the drive and the set
include:
- drive with encoder for stroke control
- electronic board with separate terminals and display to facilitate
startup and diagnostic phases
- ability to remember up to 250 different users
- Rolling code radio decoder with built-in Key Code (Twin) function
- configurable safety inputs for direct management of resistive safety
edges (8k2Ω)
- magnetic limit switch
- management of Rio series wireless security accessories with the help of
the appropriate plug
- self-diagnosis of safety devices in wired version i wireless
- devices designed to connect to the cloud using technology CAME
Connect
- Direct management of CAME keyboards with the R800 or by connecting CAME
proximity switches with the help of the R700
The drive is compatible with CAME CONNECT technology up to
advanced management and remote control of the installation.
AT04EV remote control is provides radio control of the
dynamically variable code with the frequency of 433.92 MHz, which gives a high
level of user security and makes the code impossible to be copied.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.
Photocells DXR20CAP of the new generation in a rotating
housing will find widely used in places where there is installation space and
construction installations do not allow for perfect adjustment, front to front,
standard photocells.
The infrared beam is adjustable 180 ° on the horizontal axis and 5 ° on the
axis vertical and can be locked in any position by a heavy-duty latch snap on
housing. The efficiency of the action radius in each direction is ensure by a
high quality lens, specially designed for optimizing device performance and
ensuring perfect pairing in each direction.
The AF43S frequency card, included in the kit, operates at
433.92 MHz and supports constant code control TOP and TAM and the ATOMO rolling
code.
TECHNICAL DATA:
- Power supply: 230V
- Motor power: 24V
- Standby power consumption: 5.5W
- Power consumption with RGP1: 0.5W
- Power: 400W
- Thrust: 1000N
- Duty cycle: intensive work
- Travel speed: 11m / min
- Working temperature: -20 ° C to + 55 ° C
- Isolation class: I
- Grade of protection: IP44
- Dimensions: 290x212x363mm
- Weight: 11.7kg
