CAME BXL 4 ECO ATOMO set for sliding gates with
weight 400kg

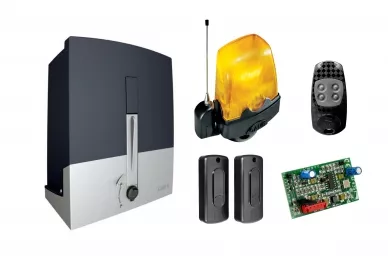

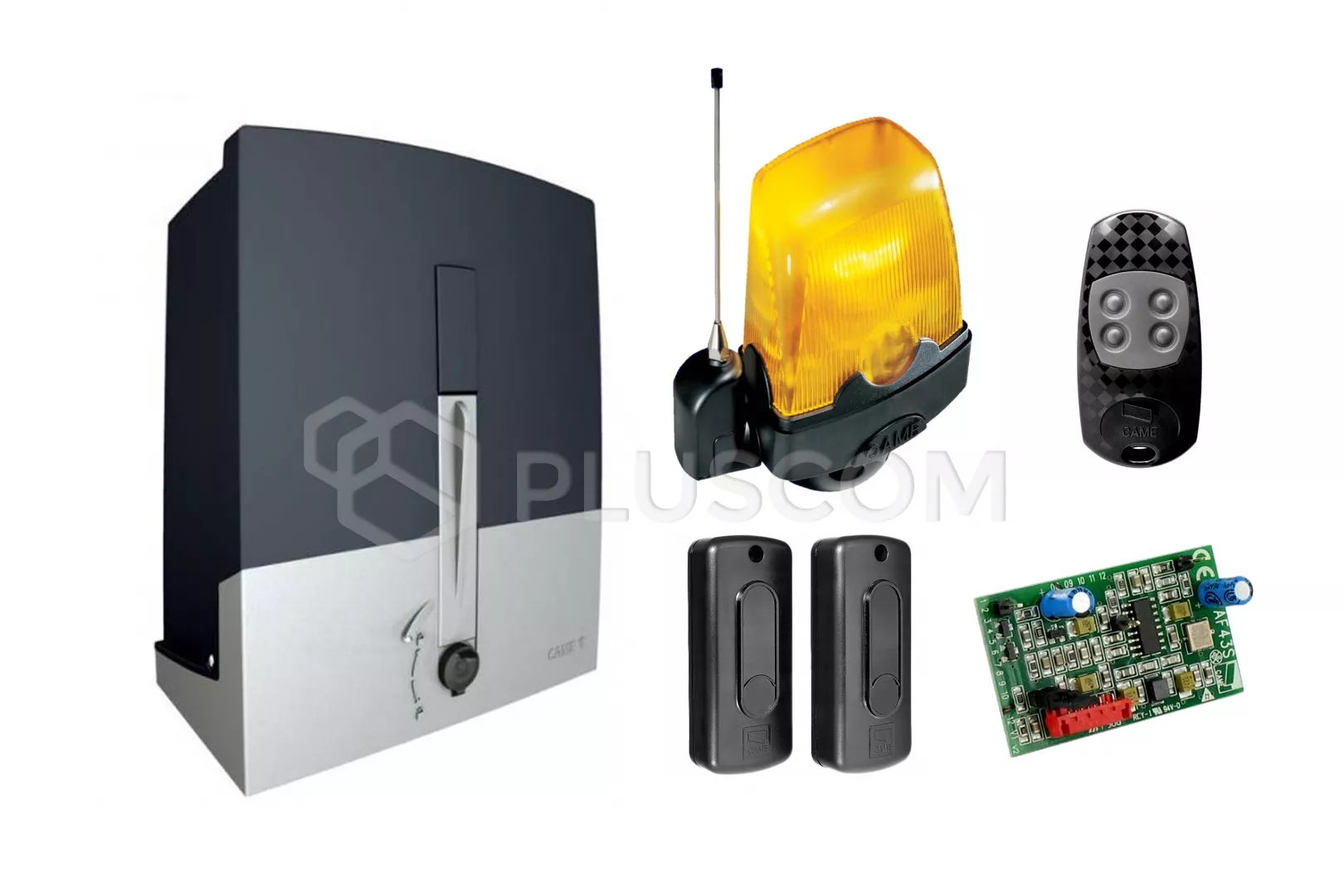

PACK CONTAINS:
|
CAME BXL 4 ECO ATOMO set for sliding gates
|
The BXL series drive is a reliable solution for your
applications both in private homes and in intensive use, e.g. in housing
estates.
The most important advantages of the drive and the set
include:
- 24V motor power
- control board with DIP switches
- motion control and obstacle detection device
- the possibility of using an emergency power supply in the event of a
failure power
- actuator for gates weighing up to 400 kg and up to 10m long
The
AT04EV remote control provides radio control of the
dynamically variable code o frequency 433.92 MHz, which gives a high level of
safety of use, and makes the code impossible to copy.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.
DIR photocells are distinguished by a modern look and very
small sizes. Thanks to the use of the IP54 tightness class and appropriate
mounting accessories, DIR photocells can be mounted both inside and outside and
out.
They have a modular structure, thanks to which their assembly can be at
different heights.
The principle of operation of the DIR photocell is based on the synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver cooperates only with the
corresponding transmitter, eliminating thus possible interference with the
signal from external sources.
The
AF43S frequency card , included in the kit, works in
frequency 433.92 MHz and supports TOP and TAM fixed code control as well with
the ATOMO rolling code.
KLED24 Warning lamp increases the safety of using the
automation. The light source is an energy-saving LED diode that gives up to 85%
savings and longer service life compared to traditional light bulbs.
Housing made of polycarbonate ABS material.
The lamp can be installed
on the wall, using the dedicated KIAROS bracket, which provides full
adjustment range: 0 ° -90 ° - 180 ° -270 °. The lamp can be used on both sides
integration with a radio antenna.
TECHNICAL DATA:
- Power supply: 230V
- Motor power: 24V
- Current consumption: max 7A
- Power: 170W
- Thrust: 350N
- Duty cycle: 50%
- Working temperature: -20 ° C to + 55 ° C
- Grade of protection: IP44
- Dimensions: 298x212x349mm
- Weight: 7.7kg
