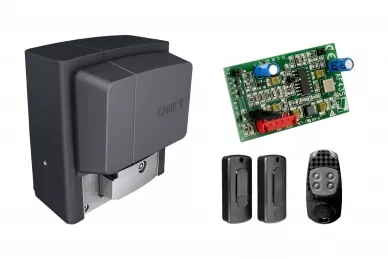

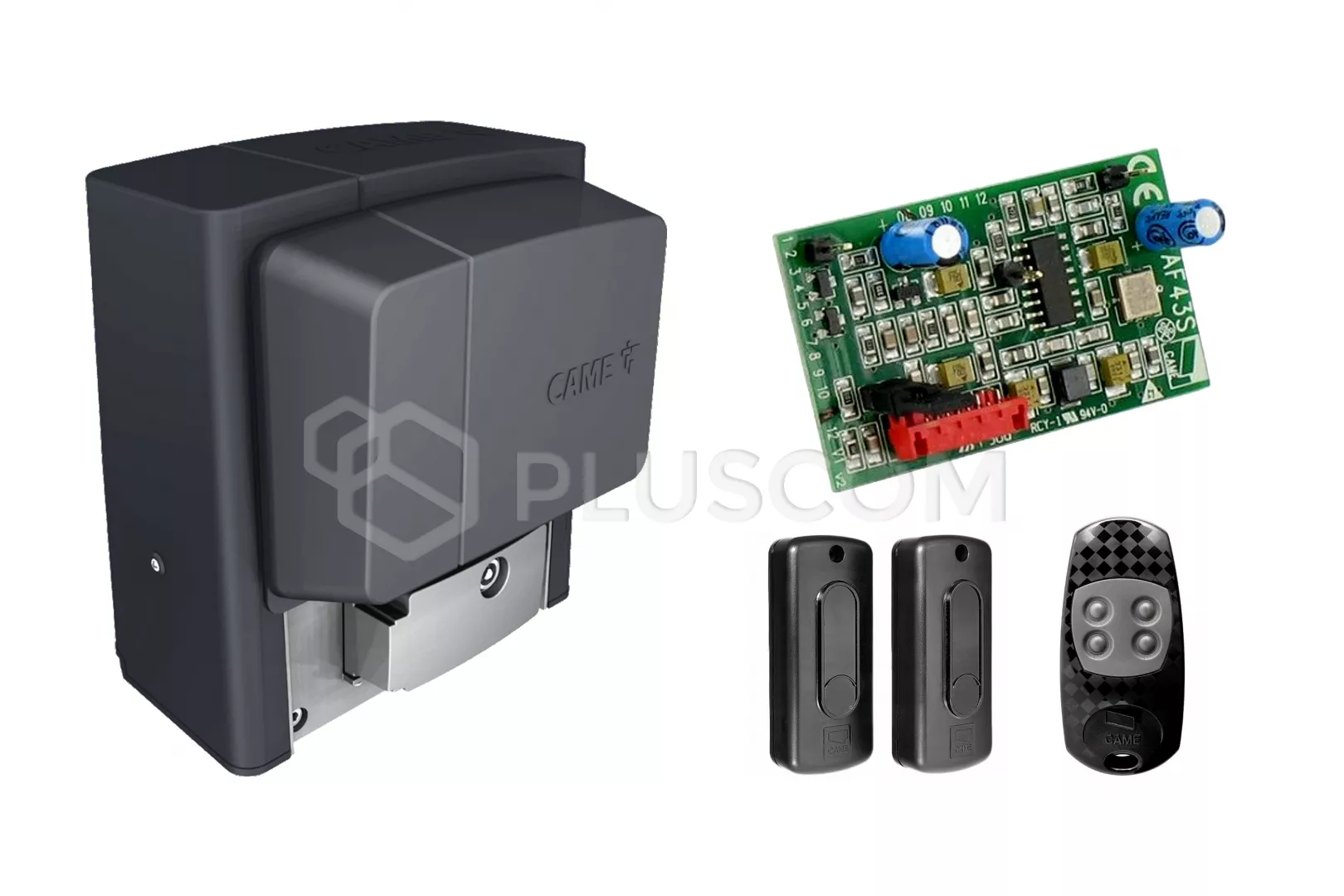

CAME BX STRONG ATOMO set for sliding gates with
weight 800kg
PACK CONTAINS:
|
CAME BX STRONG ATOMO set for sliding gates
|
The
BX708AGS drive is a reliable solution for your
applications both in private homes and in intensive use.
It is equipped with an electronics board with separate terminals to facilitate
phases commissioning and diagnostics and a programming display.
The most important advantages of the drive and the set
include:
- drive with encoder for stroke control
- electronic board with separate terminals and display to facilitate
startup and diagnostic phases
- ability to remember up to 250 different users
- Rolling code radio decoder with built-in Key Code (Twin) function
- configurable safety inputs for direct management of resistive safety
edges (8k2Ω)
- management of Rio series wireless security accessories with the help of
the appropriate plug
- self-diagnosis of wired safety devices i wireless
- devices designed to connect to the cloud using technology CAME
Connect
- Direct management of CAME keyboards with the R800 or by connecting CAME
proximity switches via the R700
The drive is compatible with CAME CONNECT technology up to advanced
management and remote control of the installation.
The
AT04EV remote control provides radio control of the
dynamically variable code o frequency 433.92 MHz, which gives a high level of
safety of use, and makes the code impossible to copy.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.
DIR photocells are distinguished by a modern look and very
small sizes. Thanks to the use of the IP54 tightness class and appropriate
mounting accessories, DIR photocells can be mounted both inside and outside and
out.
They have a modular structure, thanks to which their assembly can be at
different heights.
The principle of operation of the DIR photocell is based on the synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver cooperates only with the
corresponding transmitter, eliminating thus possible interference with the
signal from external sources.
The
AF43S frequency card , included in the kit, works in
frequency 433.92 MHz and supports TOP and TAM fixed code control as well with
the ATOMO rolling code.
TECHNICAL DATA:
- Power supply: 230V
- Motor power: 230V
- Standby power consumption: 2.4W
- Power consumption with RGP1: 0.5W
- Power: 530W
- Capacitor: 20 μF
- Thrust: 800N
- Maximum speed of movement: 10.5m / min
- Cycles / hour: 17
- Duty cycle: 30%
- Working temperature: -20 ° C to + 55 ° C
- Isolation class: I
- Grade of protection: IP44
- Dimensions: 307.5 x 300 x 241.5mm
- Weight: 15 kg
