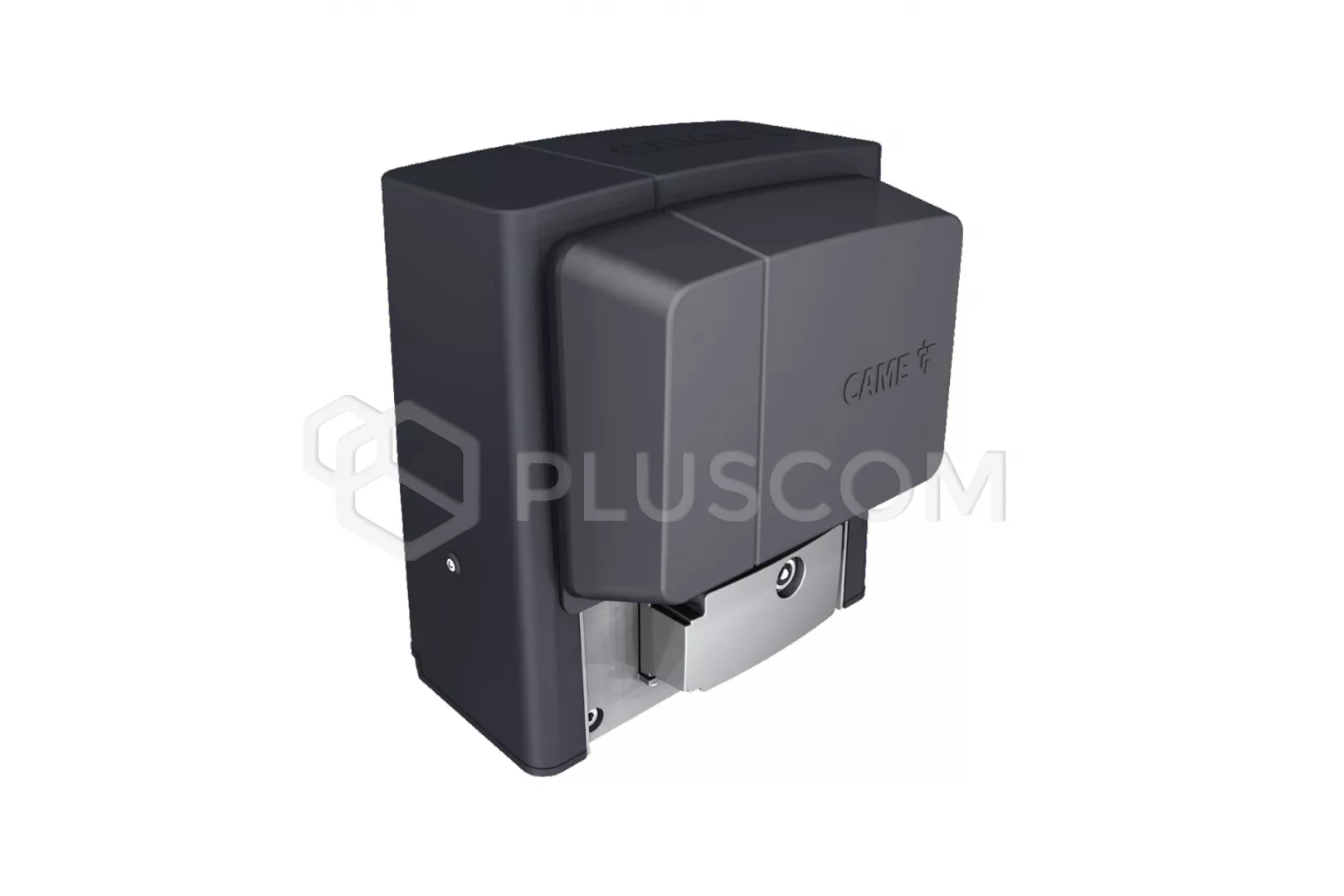

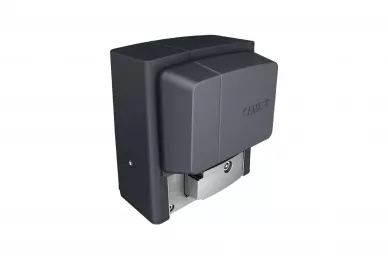

Came BX708AGS Sliding gate operator up to 800 kg

CAME BX708AGS Sliding gate operator up to 800 kg

DRIVE PURPOSE: BX708AGS The gearmotor enables the automation of sliding gates with: up to 800kg maximum length 14m maximum cycles per hour: 17 travel speeds: 10.5m / min

CAME BX708AGS Sliding gate operator up to 800 kg

The BX series operator is a reliable solution for applications in both private homes as well as intensive use.
It is equipped with an electronics board with separate terminals to facilitate phases commissioning and diagnostics and a programming display.

The most important advantages of the drive and the set include:

• drive with encoder for stroke control
• electronic board with separate terminals and display to facilitate startup and diagnostic phases
• ability to remember up to 250 different users
• Rolling code radio decoder with built-in Key Code (Twin) function
• configurable safety inputs for direct management of resistive safety edges (8k2Ω)
• management of Rio series wireless security accessories with the help of the appropriate plug
• self-diagnosis of safety devices in wired version i wireless
• devices designed to connect to the cloud using technology CAME Connect
• Direct management of CAME keyboards with the R800 or by connecting CAME proximity switches with the help of the R700

The drive is compatible with CAME CONNECT technology for advanced management and remote control of the installation.

TECHNICAL DATA:

• Power supply: 230V
• Motor power: 230V
• Standby power consumption: 2.4W
• Power consumption with RGP1: 0.5W
• Power: 530W
• Capacitor: 20 μF
• Thrust: 800N
• Maximum speed of movement: 10.5m / min
• Cycles / hour: 17
• Duty cycle: 30%
• Working temperature: -20 ° C to + 55 ° C
• Isolation class: I
• Grade of protection: IP44
• Dimensions: 307.5 x 300 x 241.5mm
• Weight: 15 kg
