CAME BKV15AGE PLUS set for sliding gates weight
1500kg

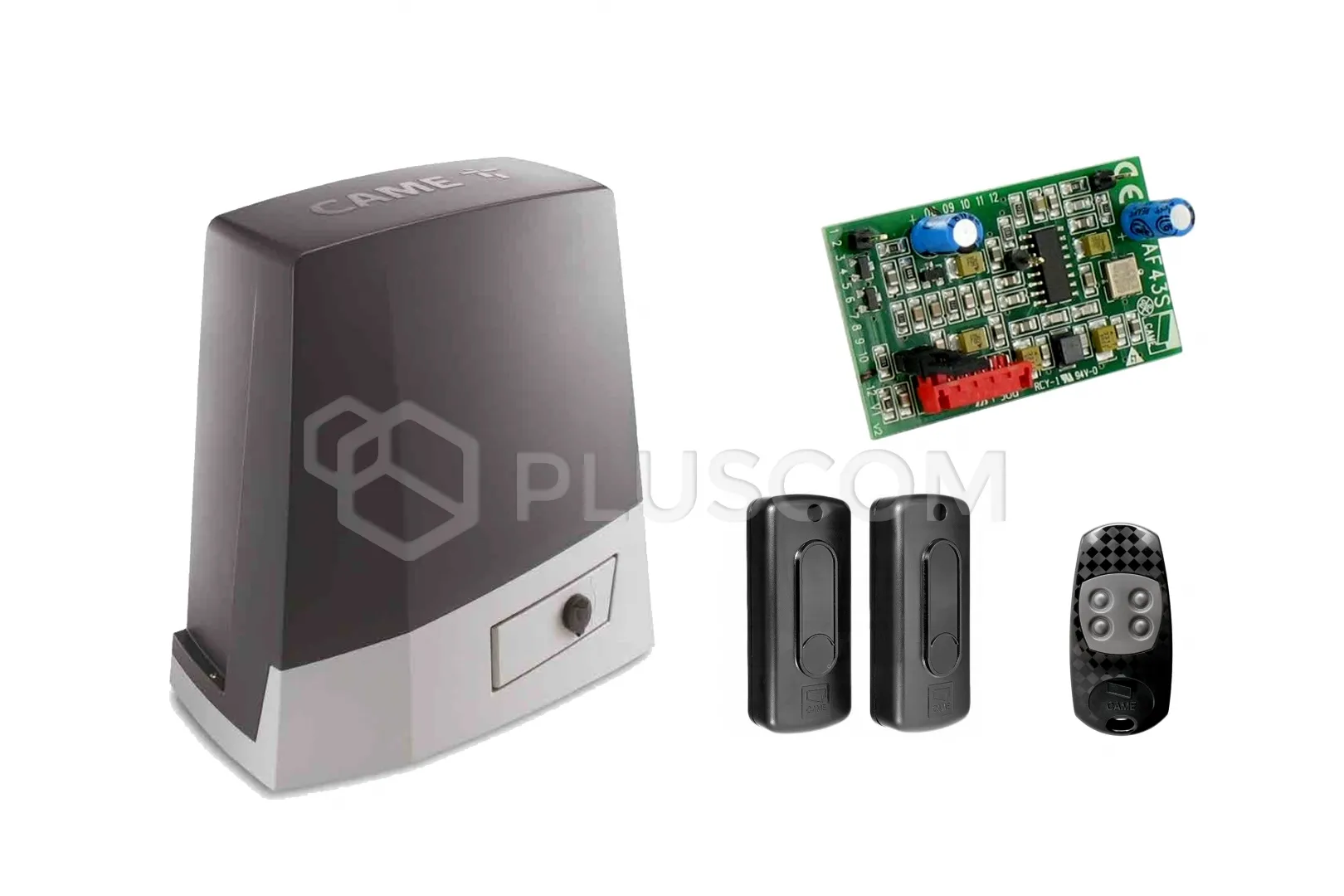

SET CONTAINS:
|
CAME BKV15AGE PLUS Set
|
The BKV15AGE PLUSdrive is intended for gates sliding
doors weighing up to 1500 kg, designed for intensive use use. It is compatible
with CAME CONNECT and is equipped with ADAPTIVE TORQUE technology.
The PLUS version has been specially designed to provide performance and
reliability in particularly difficult weather conditions (such as low
temperatures, snow and ice, which usually disrupt the operation of components
mechanical gates) and in conditions of intensive use (as in the case of very
frequent opening and closing cycles).
The BKV15AGE PLUS is supplied with magnetic stop modules limit switches and a
built-in Clock function.
PROPERTIES:
- 36 V DC motor, equipped with ENCODER
- Drive mounted with 4 SCREWS
- 4 programmable safety inputs for connection
- NC contact safety devices and direct connection of strips resistive
(8k2)
- Navigation function to perform standard configuration a with a few simple
steps
- Multifunctional graphic display for easy configuration
- TWIN (Key Code) coding with the ability to manage 250 users for radio
control and proximity card readers
- Memory for saving and sending i setting data saved users
- Smooth movement during startup and deceleration ensures long service life
product and consistent performance
- Simple manual release system secured with a key
- Maneuver counter displaying the number of maneuvers directly on the
screen made by the drive, which facilitates system maintenance
AT04EVremote control provides dynamic code radio control
variable frequency of 433.92 MHz, which gives a high level of security use, and
makes the code impossible to copy.
Each time you press the transmitter button, one of over 4 is sent billions of
possible code combinations according to a complex algorithm that only the
receiver can decode it. This technique makes cloning impossible code being
sent.
DIR Photocells are distinguished by their modern and very
modern appearance small sizes. Thanks to the use of the IP54 tightness class
and appropriate mounting accessories, DIR photocells can be mounted both
indoors and outdoors and outside.
They have a modular structure, so they can be installed at different heights.
The principle of operation of the DIR photocell is based on synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver works only with the
appropriate transmitter, eliminating thus, there is the possibility of signal
interference from external sources.
The
AF43S frequency card, included in the set, works in
frequency 433.92MHz and supports TOP and TAM fixed code control and ATOMO
variable code.
TECHNICAL DATA:
- Power supply: 230V 50/60Hz
- Motor power supply: 36V DC
- Control board power supply: 26V DC
- Power consumption in standby mode: 14W
- Maximum power: 200W
- Thrust force: 800N
- Travel speed: 12m/min
- Gear module: 4
- Duty cycle: continuous operation
- Protection rating: IP54
- Operating temperature: -20°C ~ +55°C
- Sound pressure level: ≤70dB (A)
- Working time: 180s
- Weight: 20kg
