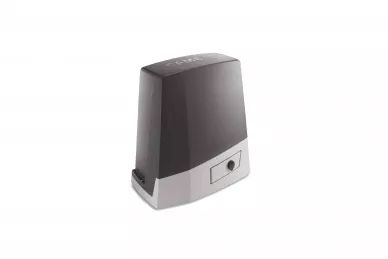

Came BKV15AGE PLUS Sliding gate operator up to 1500 kg

1043,09 EUR including 23.00% VAT
Product code: #25984
Manufacturer: CAME
  • gate weight up to: 1500kg, length up to 20m
  • 36V motor
  • ADAPTIVE TORQUE technology
  • continuous operation
  • magnetic end stops and built-in Clock function
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came RSE RS485 communication card Came R800 Interface Came R700 Interface Came PL0026 C10MM metal rack with a 10m lock Came SIPA06 Clock card for setting time functions Came PL0033 12V 7Ah battery Came 806SA-0090 LBB Emergency power supply card Came 801XC-0130 BKV adapter for mounting plates Came RIOCN8WS radio control module Came CGZ6 Metal rack in 1m sections

CAME BKV15AGE PLUS Drive for sliding gates weighing 1500 kg and length up to 20m

DRIVE PURPOSE:

BKV15AGE PLUS High-performance actuator enables gate automation sliding doors with:
  • weights up to 1500kg
  • maximum length 20m
  • continuous work
  • travel speeds: 12m/min
CAME BKV15AGE PLUS Sliding gate operator up to 1500 kg

CAME BKV15AGE PLUS Sliding gate operator up to 1500 kg
The BKV15AGE PLUS drive is intended for sliding gates weighing up to 1500 kg, designed for intensive use. It is compatible with CAME CONNECT and is equipped with ADAPTIVE TORQUE Technology.
Adaptive Torque Technology constantly assesses load and resistance levels so to maintain the speed at the set co level if obstacles are detected ensures maximum efficiency and low maintenance costs

The PLUS version was specially designed designed to provide performance and reliability in particularly difficult conditions atmospheric (such as low temperatures, snow and ice, which usually interfere with operation gate mechanical components) and in intensive conditions use (as in very frequent opening and closing cycles).
BKV15AGE PLUS is supplied with with magnetic modules end stops and a built-in Clock function.

PROPERTIES:
  • 36 V DC motor, equipped with ENCODER
  • Drive mounted with 4 SCREWS
  • 4 programmable safety inputs for connection
  • NC contact safety devices and direct connection of resistive strips (8k2)
  • Navigation function allowing you to perform standard configuration in a few simple steps
  • Multifunctional graphic display for easy configuration
  • TWIN (Key Code) coding with the ability to manage 250 users for radio control and proximity card readers
  • Memory for saving and sending data regarding settings and saved users
  • Smooth movement during startup and deceleration ensures long product life and consistent performance
  • Simple manual release system secured with a key
  • Maneuver counter displaying the number of maneuvers performed by the drive directly on the screen, making system maintenance easier

TECHNICAL DATA:
  • Power supply: 230V 50/60Hz
  • Motor power supply: 36V DC
  • Control board power supply: 26V DC
  • Power consumption in standby mode: 14W
  • Maximum power: 200W
  • Thrust force: 800N
  • Travel speed: 12m/min
  • Gear module: 4
  • Duty cycle: continuous operation
  • Protection rating: IP54
  • Operating temperature: -20°C ~ +55°C
  • Sound pressure level: ≤70dB (A)
  • Working time: 180s
  • Weight: 20kg
